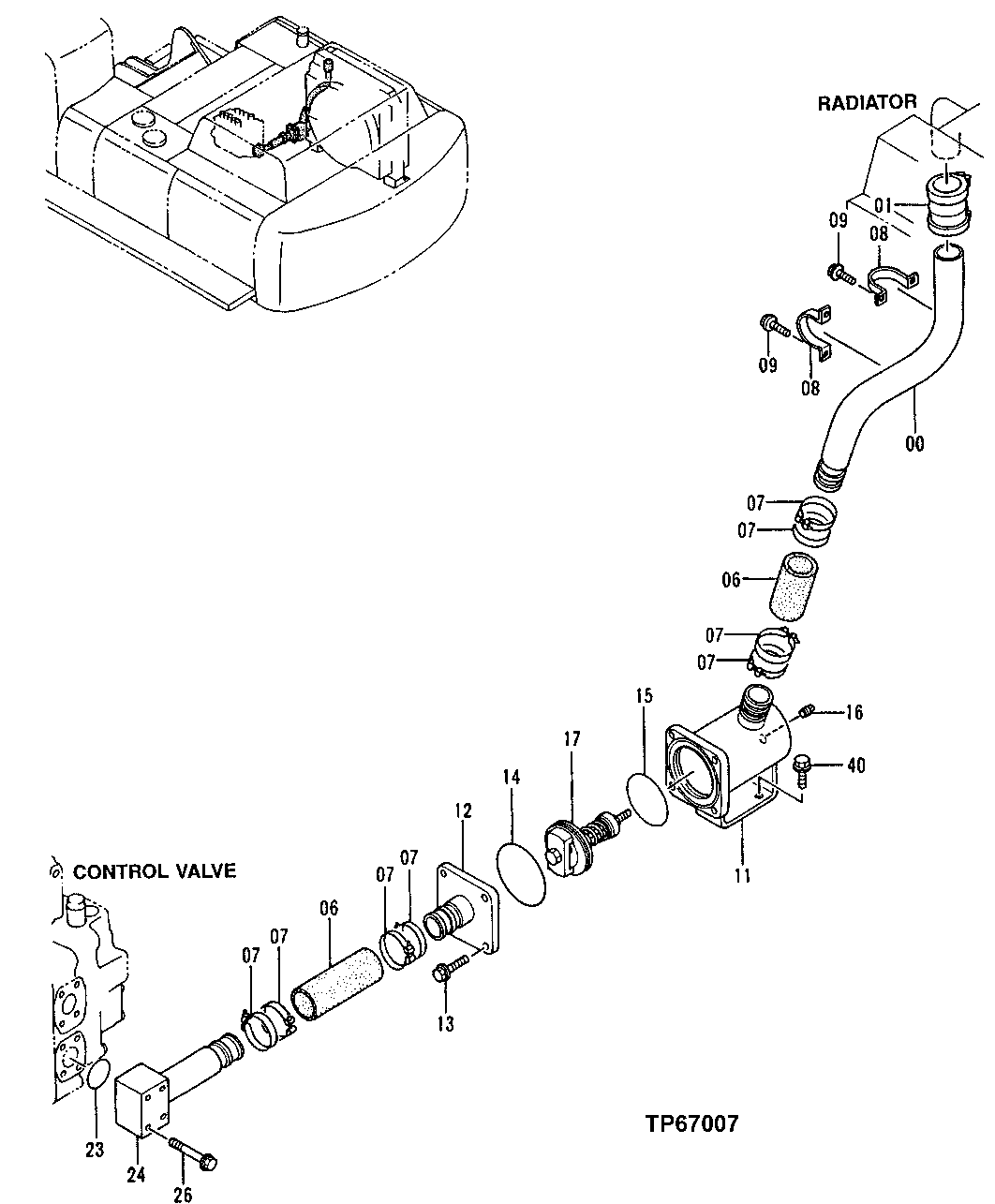

Запчасти John Deere 50LC 153 - Return Lines 3360 Hydraulic System

0

8055605

Oil Line

(SUB FOR TH8055605)

1шт.

1

4067833

Coupling

(SUB FOR TH101934)

1шт.

6

4094001

Hose

(SUB FOR TH103728)

2шт.

7

AT39141

Hose Clamp

8шт.

8

4053865

Clamp

(SUB FOR TH103646)

2шт.

9

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

11

7035451

Case

(SUB FOR 7026684, TH7026684)

1шт.

12

8055609

Oil Line

(SUB FOR TH8055609)

1шт.

13

19M7493

Cap Screw

M12 X 40

4шт.

12H301

Lock Washer

1/2"

4шт.

14

TH104589

O-Ring

144.400 X 3.100 mm (5.685" X 0.122")

1шт.

15

AT264342

O-Ring

(SUB FOR TH100125)

1шт.

16

M800462

Plug

1шт.

17

4433093

Flow Control Hyd. Valve

(SUB FOR TH4235826)

1шт.

23

TH105683

O-Ring

59.400 X 3.100 mm (2.339" X 0.122")

1шт.

24

8055610

Oil Line

(SUB FOR TH8055610)

1шт.

26

19M7949

Cap Screw

M12 X 100

4шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

40

19M7403

Cap Screw

M12 X 35

2шт.

12H301

Lock Washer

1/2"

2шт.
