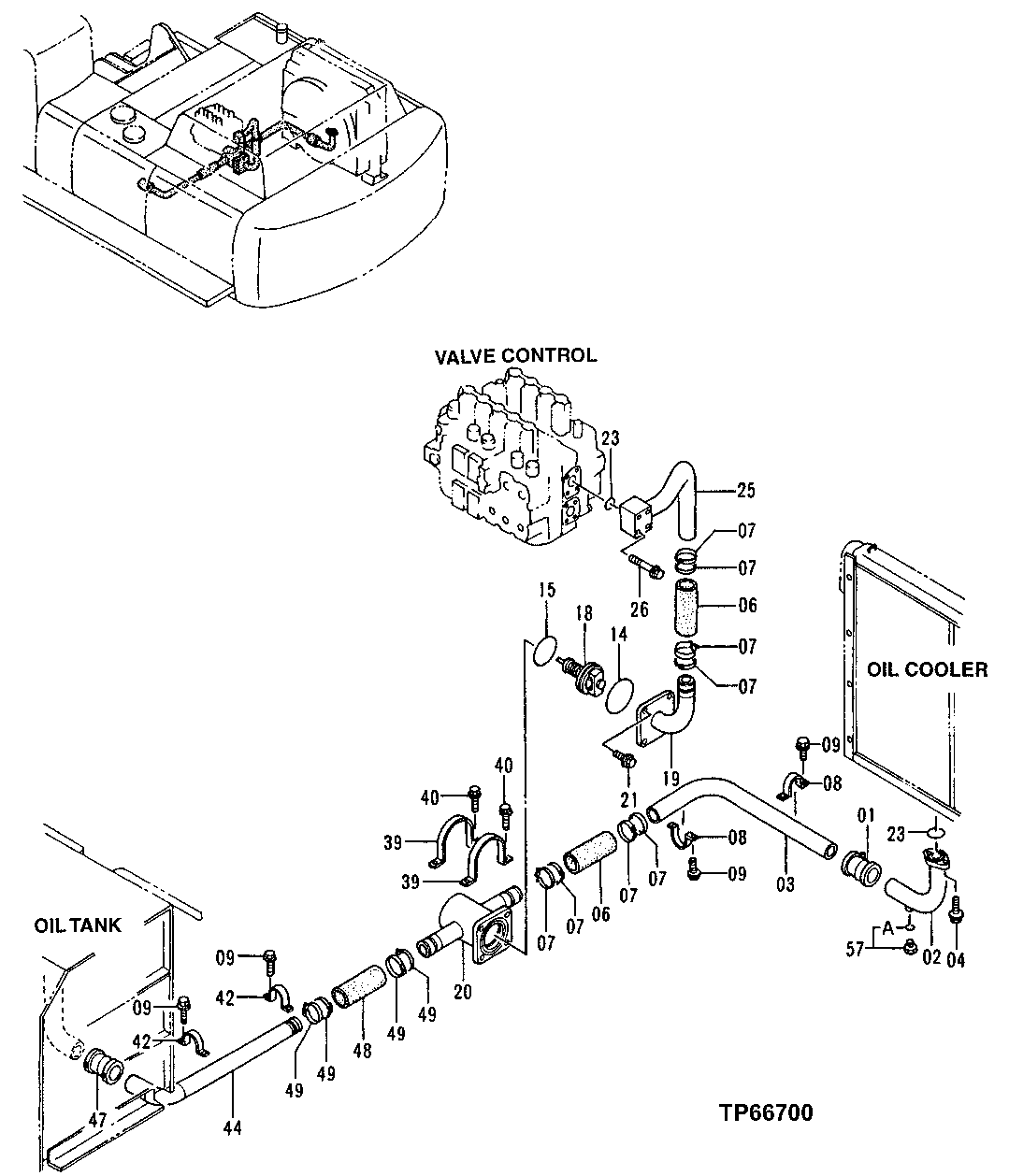

Запчасти John Deere 50LC 152 - Return Lines 3360 Hydraulic System

1

4067833

Coupling

SUB FOR TH101934

1шт.

2

8053080

Pipe Elbow

SUB FOR TH8053080

1шт.

3

8053233

Oil Line

SUB FOR TH8053233

1шт.

4

19M7493

Cap Screw

M12 X 40

2шт.

12H301

Lock Washer

1/2"

2шт.

6

4094001

Hose

SUB FOR TH103728

2шт.

7

AT39141

Hose Clamp

8шт.

8

4053865

Clamp

SUB FOR TH103646

2шт.

9

19M7662

Cap Screw

M10 X 30

8шт.

12M7066

Lock Washer

10 mm

8шт.

14

TH104589

O-Ring

144.400 X 3.100 mm (5.685" X 0.122")

1шт.

15

AT264342

O-Ring

SUB FOR TH100125

1шт.

18

4433091

Flow Control Hyd. Valve

SUB FOR AT202100

1шт.

19

7026640

Pipe Elbow

SUB FOR TH7026640

1шт.

20

7026636

Coupling

SUB FOR TH7026636

1шт.

21

19M7493

Cap Screw

M12 X 40

4шт.

12H301

Lock Washer

1/2"

4шт.

23

TH105683

O-Ring

59.400 X 3.100 mm (2.339" X 0.122")

2шт.

25

7026650

Oil Line

SUB FOR TH7026650

1шт.

26

19M7949

Cap Screw

M12 X 100

4шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

4шт.

39

4246954

Clamp

SUB FOR AT202105

2шт.

40

19M7403

Cap Screw

M12 X 35

4шт.

12H301

Lock Washer

1/2"

4шт.

42

4000909

Clamp

SUB FOR TH101935

2шт.

44

8053232

Oil Line

SUB FOR TH8053232

1шт.

47

4071215

Coupling

SUB FOR FXV00000007 AND TH101898

1шт.

47A

Seal

SUB TO FXV00000007, 4196267 NLA

2шт.

48

4167091

Hose

SUB FOR TH101901

1шт.

49

AT50923

Hose Clamp

4шт.

57

4093624

Drain Plug

SUB FOR AT318013; SUB FOR TH102536

1шт.

57A

M800650

Packing

1шт.
