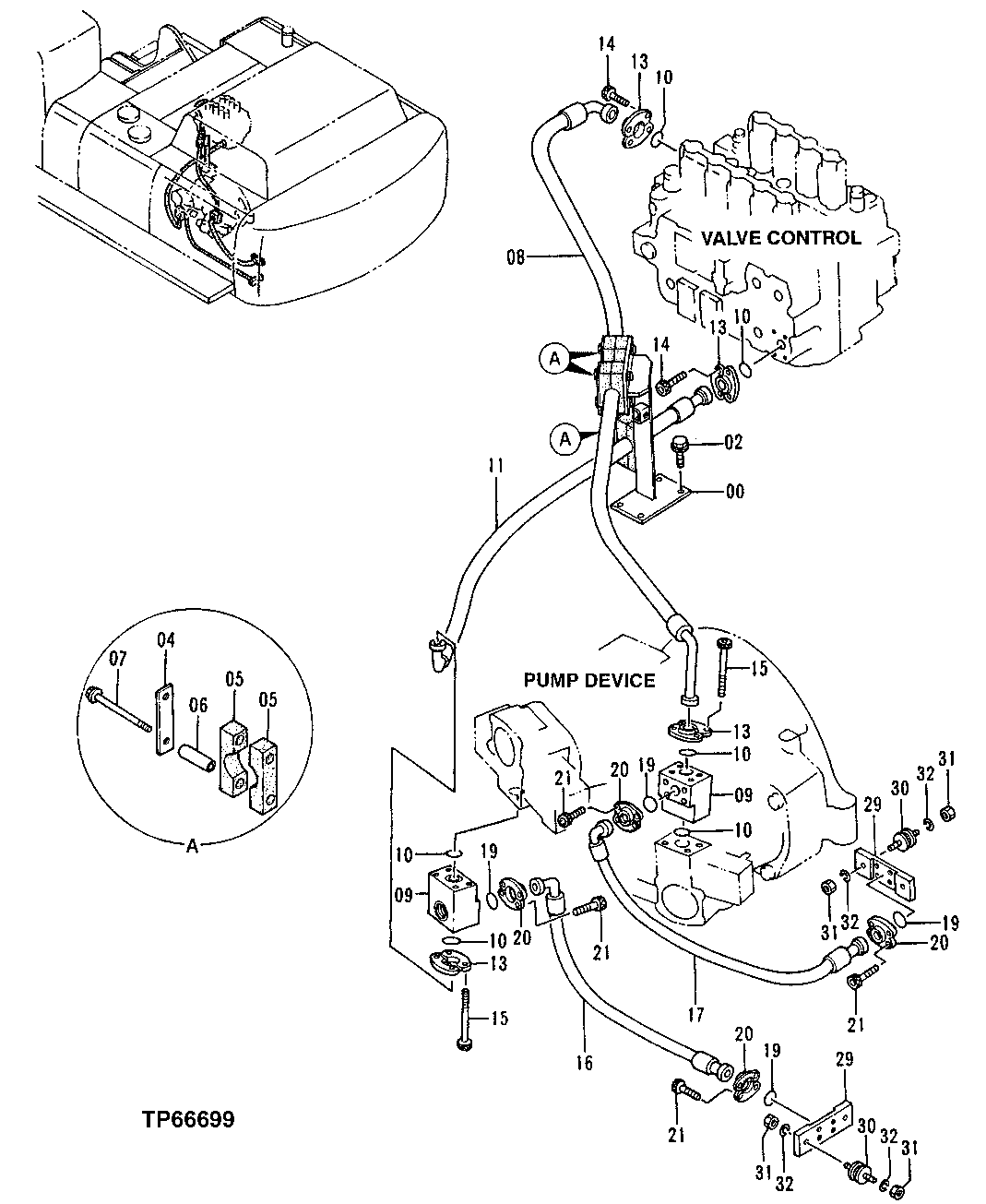

Запчасти John Deere 50LC 151 - Delivery Lines 3360 Hydraulic System

0

7029475

Bracket

SUB FOR TH7029475

1шт.

2

19M7493

Cap Screw

M12 X 40

4шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

4шт.

24M7345

Washer

13.500 X 24 X 2.500 mm

4шт.

4

4207038

Strap

SUB FOR AT131811

3шт.

5

4207036

Clamp

SUB FOR AT131809

6шт.

6

4215879

Spacer

SUB FOR 4207037 OR AT131810

6шт.

7

19M7949

Cap Screw

M12 X 100

6шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

6шт.

8

4349873

Hydraulic Hose

SUB FOR TH4349873

1шт.

9

3071140

Junction Block

SUB FOR TH3071140

2шт.

10

T72216

O-Ring

37.694 X 3.531 mm (1-31/64" X 0.139")

6шт.

11

4309083

Hydraulic Hose

SUB FOR TH4309083

1шт.

13

AT131685

Flange Fitting

8шт.

14

19M8734

Screw

M14 X 45

8шт.

15

M341404

Cap Screw

SUB FOR THM341404

8шт.

16

4308040

Hydraulic Hose

SUB FOR TH4308040

1шт.

17

4343420

Hydraulic Hose

SUB FOR TH4343420

1шт.

19

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

4шт.

20

4085560

Flange Fitting

SUB FOR TH101960

8шт.

21

19M8395

Screw

M12 X 40

16шт.

29

3073270

Plate

SUB FOR TH3073270

2шт.

30

4354592

Isolator

SUB FOR AT216977

4шт.

31

14M7274

Nut

M10

8шт.

32

12M7066

Lock Washer

10 mm

8шт.
