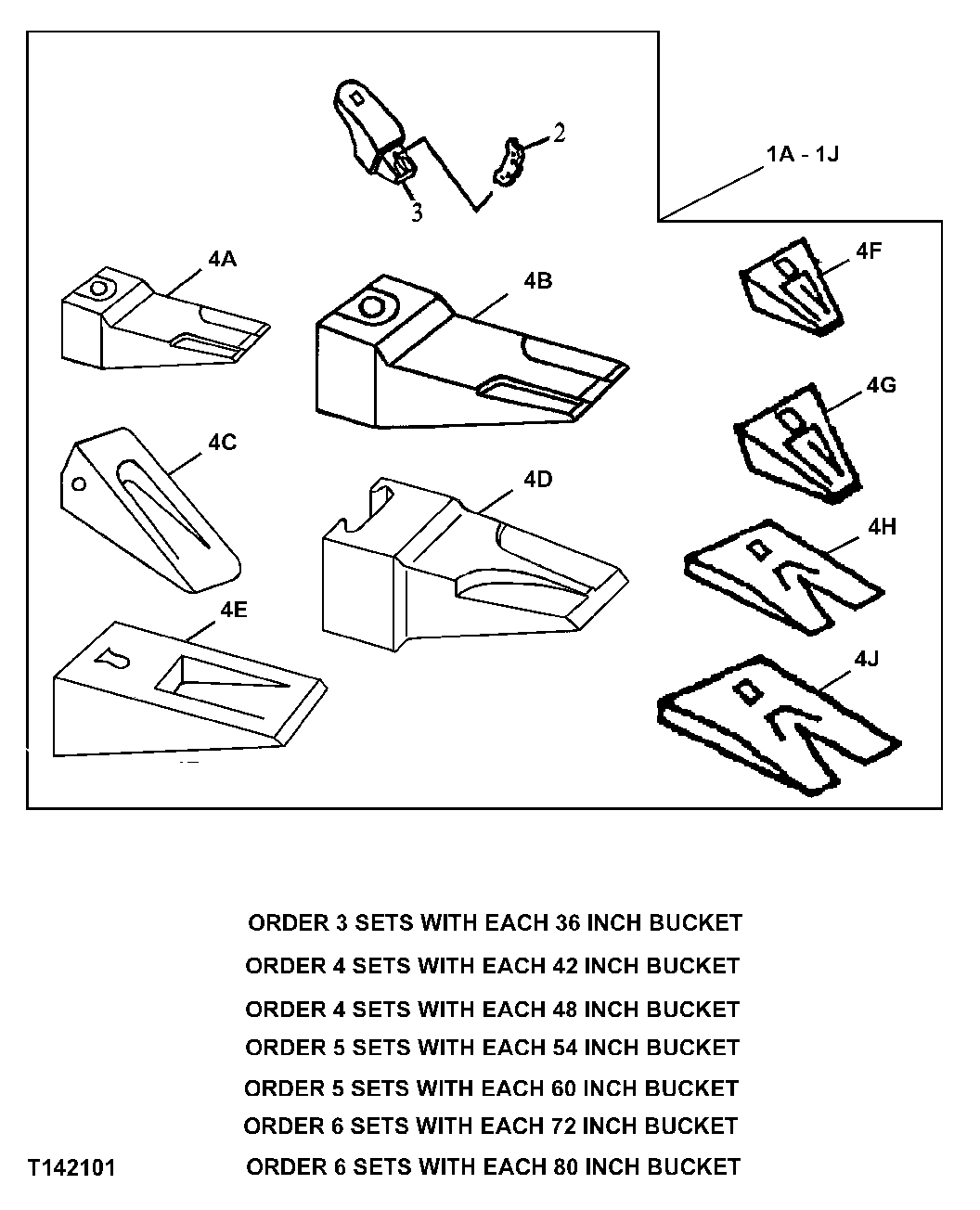

Запчасти John Deere 50LC 133 - Heavy Duty Bucket Tooth Assembly 3302 Bucket With Teeth

1A

Tooth

(WHOLEGOODS) (SHARP RIBBED) ( AT189733 NLA)

1шт.

1B

Tooth

(WHOLEGOODS) (SHARP RIBBED) ( AT189732 NLA)

1шт.

1C

Tooth

( AT189736 NLA) (WHOLEGOODS) Esco Standard

1шт.

1D

Tooth

(WHOLEGOODS) ( AT189735 NLA) Caterpill ar Replacement Standard Tooth Assembly

1шт.

1E

Tooth

( AT189835 NLA) (WHOLE GOODS) Abrasion Panel

1шт.

1F

Tooth

( AT192636 NLA) (HENSLEY TIGER)

1шт.

1G

Tooth

(HENSLEY TIGER) ( AT192639 NLA)

1шт.

1H

Tooth

( AT192638 NLA) (HENSLEY TWIN TIGER)

1шт.

1J

Tooth

(HENSLEY TWIN TIGER) ( AT192640 NLA)

1шт.

2

PMK550R

Pin

(SUB FOR TK550R) Sharp Ribbed

1шт.

EX57VPN

Pin

Esco Vertalok Not Illustrated O n This Page-See Esco Tooth Page

1шт.

T9U9616

Pin

Caterpillar Replacement Not Illustrated

1шт.

TK500R

Pin

(SHARP RIBBED OR ABRASION PANEL)

1шт.

TT500

Pin

(HENSLEY TIGER, OR TWIN TIGER)

1шт.

PMK550R

Pin

(SUB FOR TK550R) (HENSL EY TIGER, OR TWIN TIGER)

1шт.

3

Shank

(SHARP RIBBED, HENSLEY TIGER, OR H ENSLEY TWIN TIGER) ( T806X550 NLA)

1шт.

EX1856-57V

Shank

Esco Vertalok Not Illustrated O n This Page-See Esco Tooth Page

1шт.

Shank

Caterpillar Replacement Not Illustrated ( T4T4704 NLA)

1шт.

T806X500

Shank

(ABRASION PANEL, HENSELY TI GER, OR HENSLEY TWIN TIGER)

1шт.

4A

Tooth

(HENSLEY RIBBED SHARP) ( TX550SYL NLA)

1шт.

4B

Tooth

(HENSLEY RIBBED SHARP) ( TX500SYL NLA)

1шт.

4C

Tooth

(CATERPILLAR STANDARD) ( T4T4702 NLA)

1шт.

4D

EX57SYL

Tooth

Esco Standard

1шт.

4E

TX500AP

Tooth

Abrasion Panel

1шт.

4F

Tooth

(HENSLEY TIGER)

1шт.

4G

Tooth

(HENSLEY TIGER) ( AT192639 NLA)

1шт.

4H

Tooth

(HENSLEY TWIN TIGER)

1шт.

4J

Tooth

(HENSLEY TWIN TIGER) ( AT192640 NLA)

1шт.

5

EX57VPL

Plug

Not Illustrated On This Page-See Esco Tooth Page

1шт.

T4T4707

Retainer

Caterpillar Replacement Not Illustrated

1шт.
