550LC Excavator - 11Aug17
/
33 - Excavator
/
3302 Bucket With Teeth
/

126 - EXTREME DUTY BUCKET (CONTINUED)

Запчасти John Deere 50LC 126 - EXTREME DUTY BUCKET (CONTINUED) 3302 Bucket With Teeth

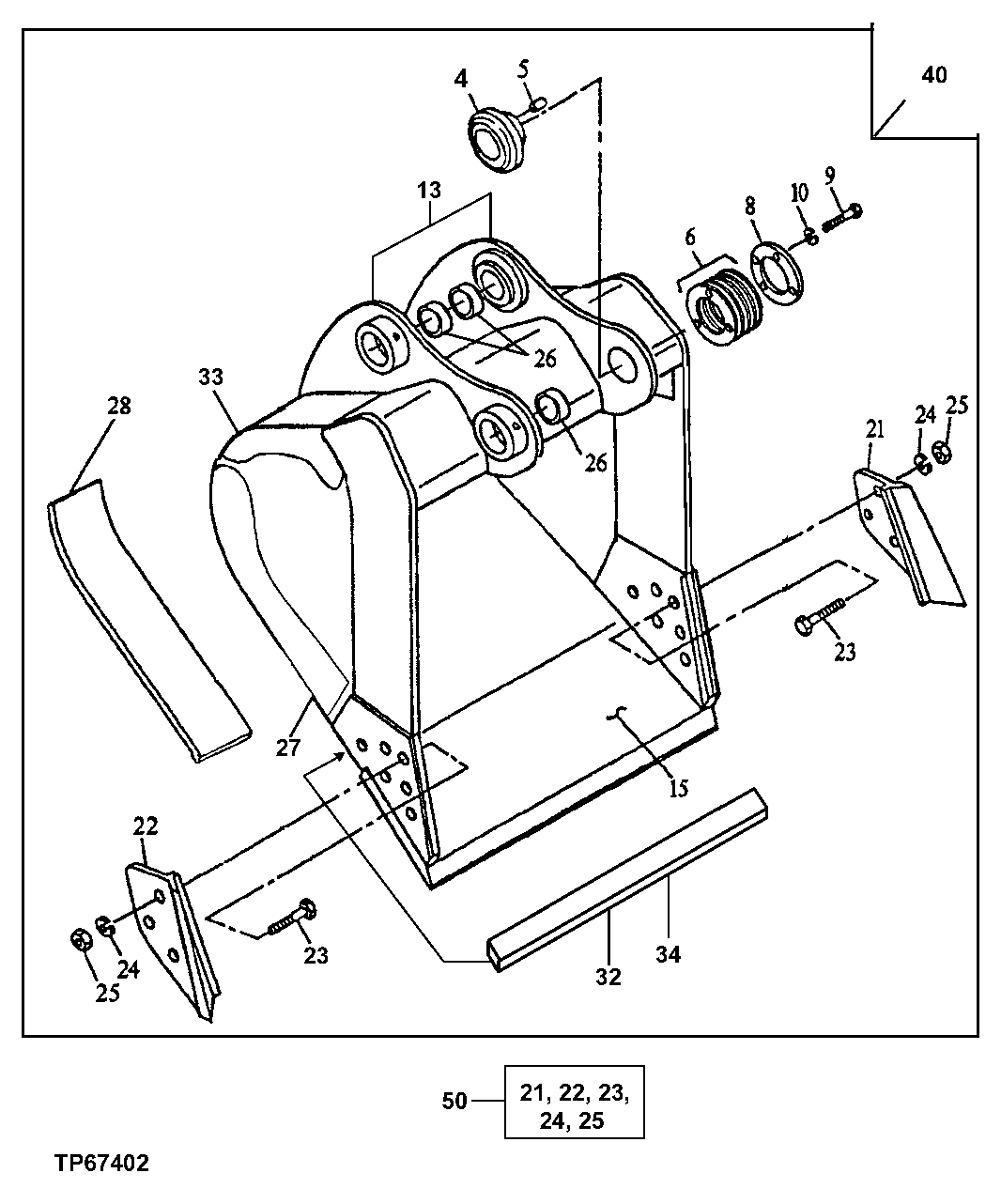

Схема запчастей John Deere 50LC - 126 - EXTREME DUTY BUCKET (CONTINUED) 3302 Bucket With Teeth

№

Артикул

Название

Примечание

Количество

27

C619040

Plate

(F) (LOWER), (RH)

1шт.

C619041

Plate

(F) (LOWER), (LH)

1шт.

28

C624486

Bar

(F) 36in. 2.35yd³ , Bucket

1шт.

C619059

Bar

(F) 42in. 2.90yd³ , Bucket

1шт.

C619060

Bar

(F) 48in. 3.50yd³, Bucket

1шт.

C619061

Bar

(F) 54in. 4.00yd³, Bucket

1шт.

C619062

Bar

(F) 60in. 4.62yd³ , Bucket

1шт.

C619561

Bar

(F) 72in. 4.84yd³ , Bucket

1шт.

C619562

Bar

(F) 80in. 5.50yd³ , Bucket

1шт.

C619065

Bar

(F) 80in. 6.60yd³, Bucket

1шт.

32

C33125

Bar

(F) 36in. 2.35yd³, Bucket

6шт.

C33066

Bar

(F) 42in. 2.90yd³, Bucket

6шт.

C33067

Bar

(F) 48in. 3.50yd³, Bucket

6шт.

C33068

Bar

(F) 54in. 4.00yd³, Bucket

6шт.

C33069

Bar

(F) 60in. 4.62yd³, Bucket

6шт.

C33648

Bar

(F) 72in. 4.84yd³, Bucket

6шт.

C33649

Bar

(F) 80in. 5.50yd³, Bucket

6шт.

C33072

Bar

(F) 80in. 6.60yd³, Bucket

6шт.

33

C619038

Plate

(F) (UPPER), (RH)

1шт.

C619039

Plate

(F) (UPPER), (LH)

1шт.

34

C27052

Bar

(F) 36in. 2.35yd³, Bucket

1шт.

C33124

Bar

(F) 42in. 2.90yd³, Bucket

1шт.

C33125

Bar

(F) 48in. 3.50yd³, Bucket

1шт.

C33126

Bar

(F) 54in. 4.00yd³, Bucket

1шт.

C33127

Bar

(F) 60in. 4.62yd³, Bucket

1шт.

C23311

Bar

(F) 72in. 4.84yd³, Bucket

1шт.

C23312

Bar

(F) 80in. 5.50yd³, Bucket

1шт.

C33130

Bar

(F) 80in. 6.60yd³, Bucket

1шт.

40

Excavator Bucket

36in. 2.35yd³, ( AT189746 NLA) Availa ble Tooth Assemblies On Separate Page

1шт.

Excavator Bucket

42in. 2.90yd³, ( AT189747 NLA) Availa ble Tooth Assemblies On Separate Page

1шт.

Excavator Bucket

48in. 3.50yd³ , ( AT189748 NLA) Avail able Tooth Assemblies On Separate Page

1шт.

Excavator Bucket

54in. 4.00yd³ , ( AT189749 NLA) Avail able Tooth Assemblies On Separate Page

1шт.

Excavator Bucket

60in. 4.62yd³, ( AT189750 NLA) Availa ble Tooth Assemblies On Separate Page

1шт.

Excavator Bucket

72in. 4.84yd³, ( AT189751 NLA) Availa ble Tooth Assemblies On Separate Page

1шт.

Excavator Bucket

80in. 5.50yd³, (WHOLEGOODS) ( AT189752 NLA) Available Tooth Assemblies On Separate Page

1шт.

Excavator Bucket

80in. 6.60yd³ , (WHOLEGOODS) ( AT189754 NLA) Available Tooth Assemblies On Separate Page

1шт.

50

Kit

( AT189734 NLA) Side Cutter

1шт.

Выбрано товаров: 37
