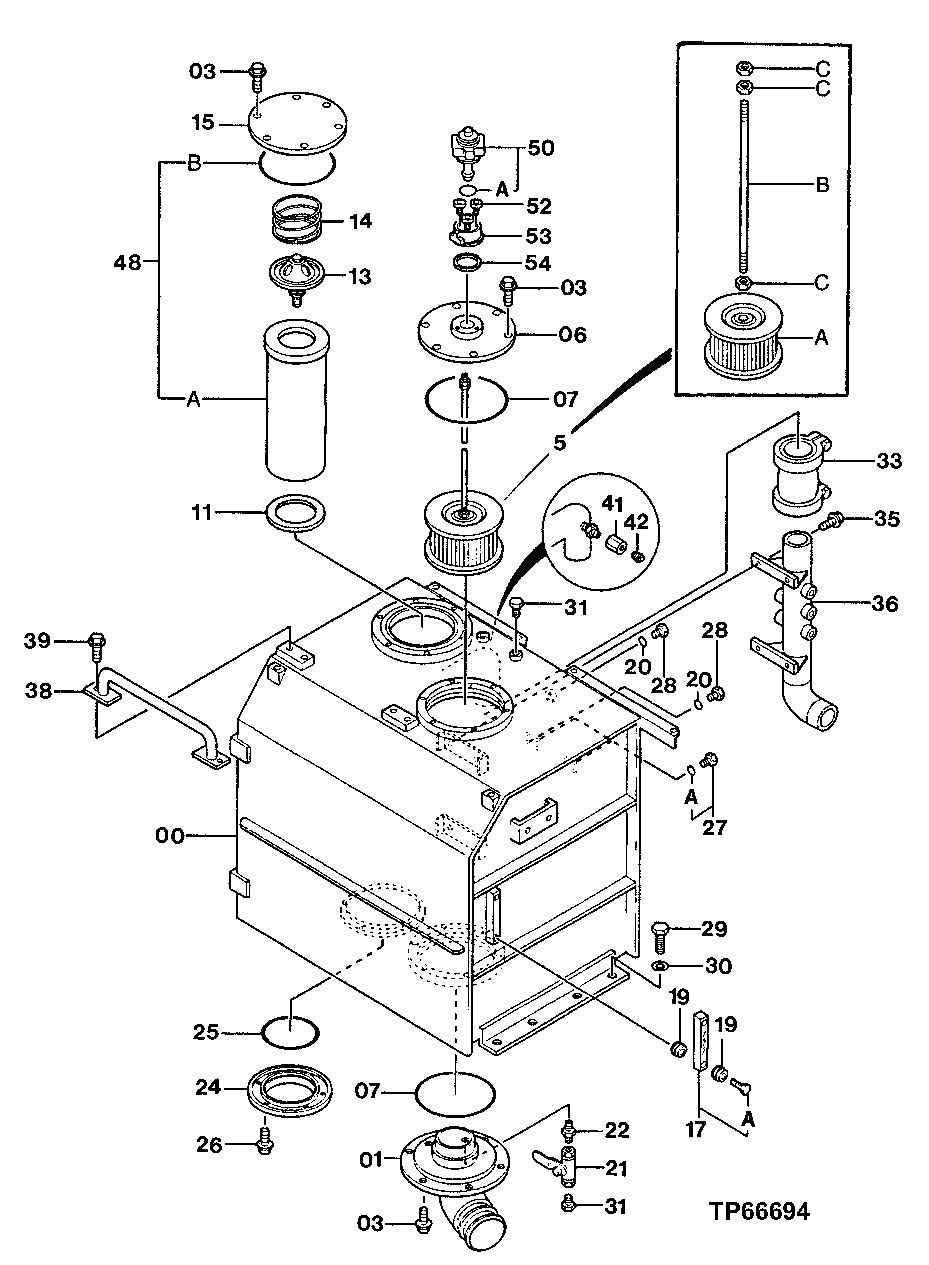

Запчасти John Deere 50LC 117 - Hydraulic Oil Tank And Filter 2160 Vehicle Hydraulics

0

5005300

Hydraulic Reservoir

SUB FOR TH5005300

1шт.

1

8054027

Line

SUB FOR TH8054027

1шт.

3

19M7402

Cap Screw

M10 X 25

18шт.

12M7066

Lock Washer

10 mm

18шт.

5

Strainer

SUB 4333464 AND 4349173 AND 14M7274; 4337815 NLA

1шт.

5A

4333464

Strainer

1шт.

5B

4349173

Rod

1шт.

5C

14M7274

Nut

M10

3шт.

6

8050201

Cover

SUB FOR AT202162

1шт.

7

A810220

O-Ring

SUB FOR TH104436

2шт.

11

4250293

Washer

120 X 170 X 2 mm (4.724" X 6.6 93" X 0.079") SUB FOR AT134351

1шт.

13

4271000

Flow Control Hyd. Valve

SUB FOR AT201733

1шт.

14

4271001

Spring

SUB FOR AT201734

1шт.

15

3054856

Cover

SUB FOR AT201684

1шт.

17

8053499

Level Gauge

SUB FOR TH108293

1шт.

17A

4100967

Bolt

SUB FOR TH101894

2шт.

19

449558

Washer

SUB FOR TH100675

4шт.

20

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

2шт.

21

4209782

Hand Operated Valve

SUB FOR AT128432

1шт.

22

94-1702

Adapter Fitting

SUB FOR TH102949

1шт.

24

8023981

Cover

SUB FOR TH101891

1шт.

25

TH100679

O-Ring

159.300 X 5.700 mm (6.272" X 0.224")

1шт.

26

19M7402

Cap Screw

M10 X 25

6шт.

12M7066

Lock Washer

10 mm

6шт.

27

4093624

Drain Plug

SUB FOR AT318013; SUB FOR TH102536

2шт.

27A

M800650

Packing

1шт.

28

15M7036

Drain Plug

SUB FOR TH109285 OR 0309805

2шт.

29

19M7488

Cap Screw

M16 X 40

8шт.

30

4114405

Washer

17 X 32 X 4.500 mm (0.669" X 1. 260" X 0.177") SUB FOR TH101105

8шт.

31

R30298

Pipe Plug

9.525 mm (3/8")

3шт.

33

4071215

Coupling

SUB FOR FXV00000007 AND TH101898

1шт.

33A

Seal

SUB TO FXV00000007, 4196267 NLA

2шт.

35

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

36

8058788

Tube

SUB FOR TH8058788

1шт.

38

9741409

Handrail

SUB FOR AT201951

1шт.

39

19M7872

Cap Screw

M12 X 25

2шт.

12H301

Lock Washer

1/2"

2шт.

41

94-0680

Socket

SUB FOR AT202376

1шт.

42

94-2027

Plug

SUB FOR AT202377

1шт.

48

4333469

Filter Element

SUB FOR AT201793

1шт.

AT162766

Filter Element

Cleanup Filter Short Term Use - Ap proximately Three Hours Idle Speed

1шт.

48A

4333469

Filter Element

SUB FOR TH4287634 OR 4287634

1шт.

48B

A810220

O-Ring

SUB FOR TH104436

1шт.

50

4222874

Filler Cap

SUB FOR AT217084

1шт.

50A

953612

O-Ring

31.700 X 3.500 mm (1.248" X 0.138") SUB FOR TH111019

1шт.

52

19M8146

Screw

M5 X 16

3шт.

53

4222875

Base

SUB FOR TH111021

1шт.

54

4222876

Packing

SUB FOR TH111022

1шт.
