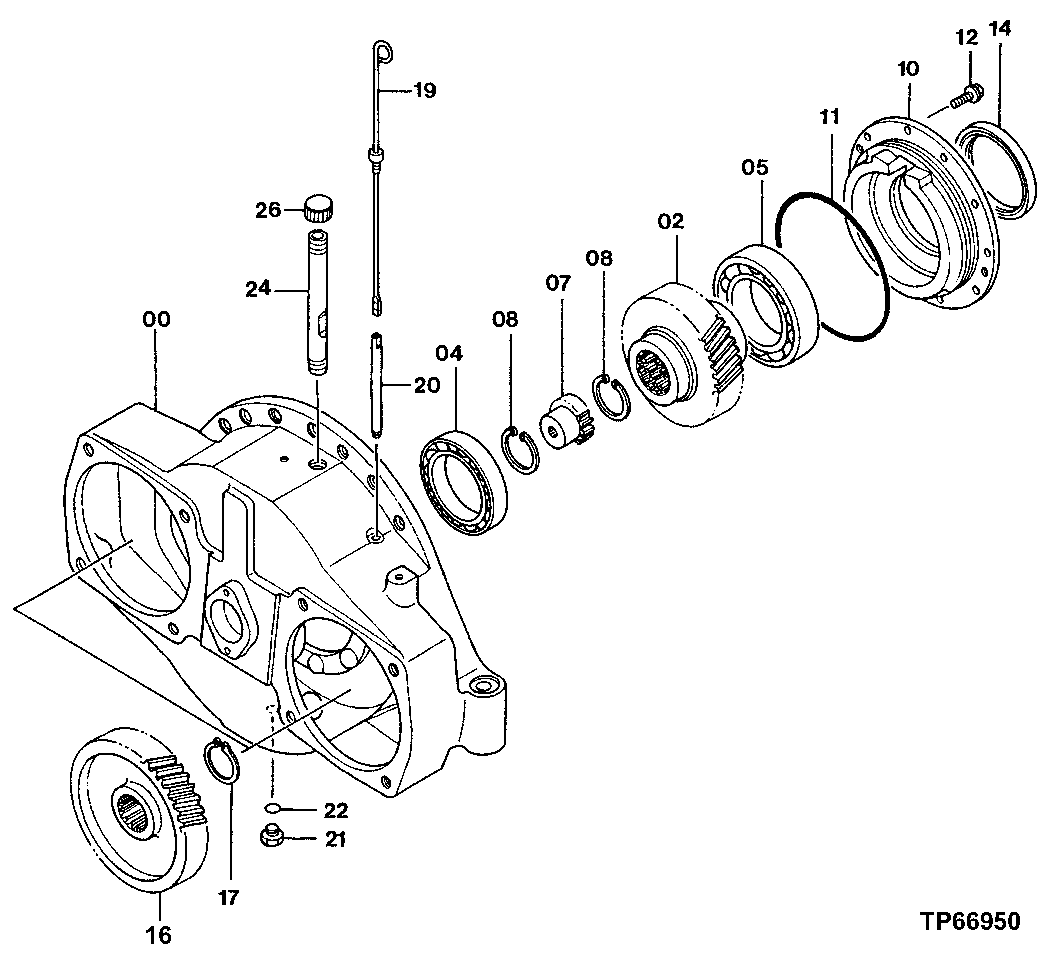

Запчасти John Deere 50LC 108 - Main Hydraulic Pump 2160 Vehicle Hydraulics

0

0001284

Housing

(SUB FOR TH0001284)

1шт.

2

2033642

Gear

(SUB FOR TH2033642)

1шт.

4

4160773

Ball Bearing

(SUB FOR TH4160773)

1шт.

5

4160774

Ball Bearing

(SUB FOR TH4160774)

1шт.

7

3040803

Coupling

(SUB FOR TH3040803)

1шт.

8

40M7044

Snap Ring

2шт.

10

2033315

Bearing Housing W/O Bearing

(SUB FOR TH2033315)

1шт.

11

4218005

O-Ring

(SUB FOR TH4218005)

1шт.

12

19M7403

Cap Screw

M12 X 35

10шт.

12H301

Lock Washer

1/2"

10шт.

14

4083852

Seal

(SUB FOR TH4083852)

1шт.

16

2033318

Gear

(SUB FOR TH2033318)

2шт.

17

40M7327

Snap Ring

(SUB FOR AT131689) (SUB FOR 4103152)

2шт.

19

4375918

Dipstick Tube

(SUB FOR TH4375918)

1шт.

20

4264452

Tube

(SUB FOR AT154293)

1шт.

21

4074727

Drain Plug

(SUB FOR TH100027)

1шт.

22

R77401

O-Ring

19.800 X 2.400 mm (0.780" X 3/32")

1шт.

24

Tube

( 4388529 NLA) (FURNISH 4722534, 8087727, 4 187328, 4417570, 8075819) (SUB FOR AT250079)

1шт.

26

4343365

Cap

(SUB FOR AT204965)

1шт.

27

4722534

Breather

Not Illustrated

1шт.

28

8104650

Pipe

(SUB FOR 8087727 OR 80 92124) Not Illustrated

1шт.

29

4187328

O-Ring

Not Illustrated

1шт.

30

4417570

Socket

Not Illustrated

1шт.

31

8075819

Line

Not Illustrated

1шт.
