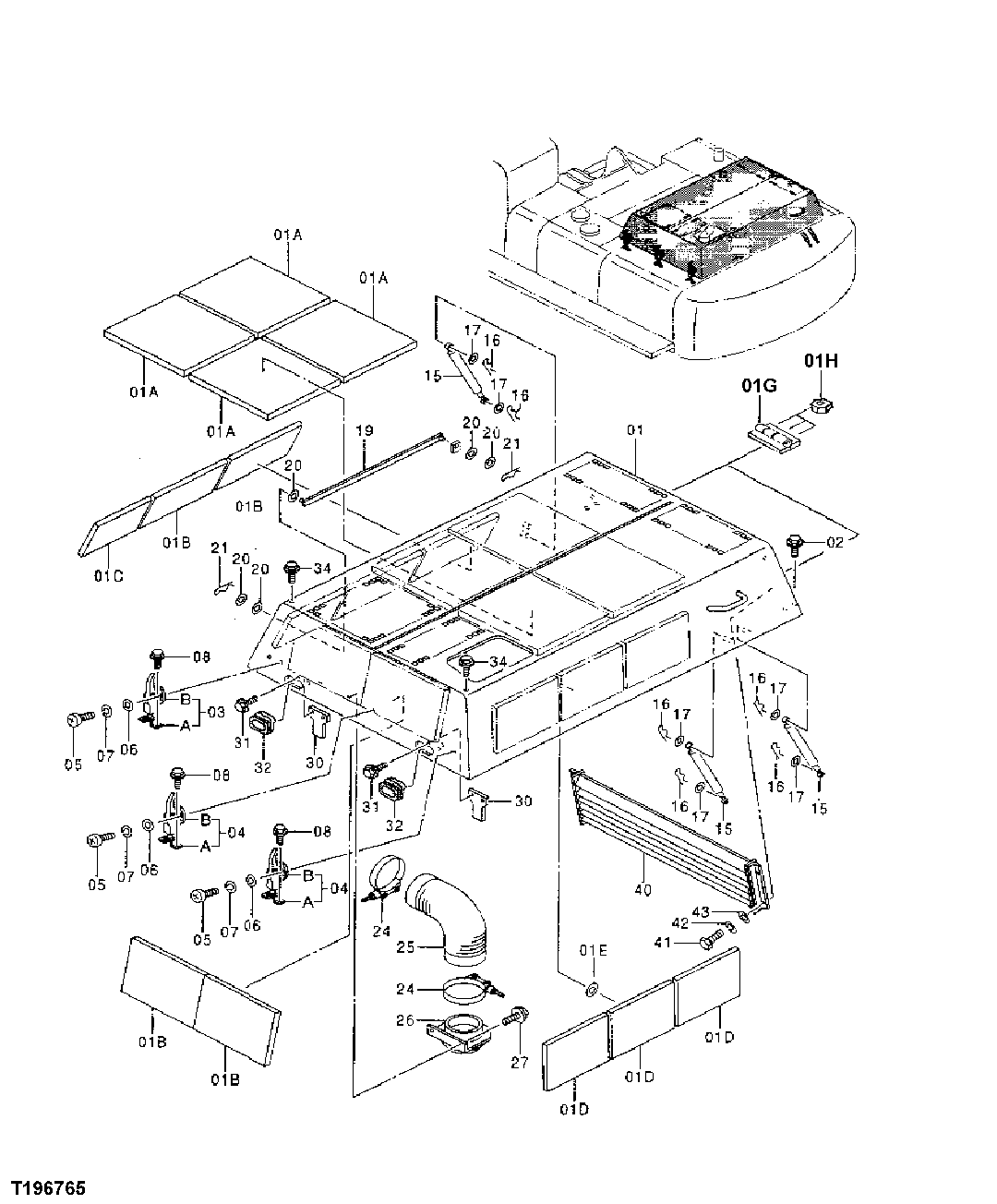

Запчасти John Deere 50LC 103 - Engine Cover 1910 Hood Or Engine Enclosure

1

9162242

Hood

SUB FOR TH9162242; INCL UDES KEYS 1A THROUGH 1E

1шт.

1A

4379670

Isolator

SUB FOR TH4379670

4шт.

1B

4379671

Isolator

SUB FOR TH4379671

4шт.

1C

4379672

Isolator

SUB FOR TH4379672

1шт.

1D

4379673

Isolator

SUB FOR TH4379673

3шт.

1E

4156886

Spring Washer

SUB FOR AT121962

105шт.

1G

4400755

Hinge

2шт.

1H

4200444

Nut

6шт.

3

Catch

1шт.

3A

3074568

Catch

SUB FOR AT131654

1шт.

3B

3021131

Anchor

SUB FOR TH102247

1шт.

4

Catch

2шт.

4A

3074568

Catch

SUB FOR AT131654

1шт.

4B

3021131

Anchor

SUB FOR TH102247

1шт.

5

21M7397

Screw

M8 X 25

6шт.

6

24M7055

Washer

8.400 X 16 X 1.600 mm

6шт.

7

Washer

12M7065 NLA

6шт.

8

19M7932

Cap Screw

M8 X 16

6шт.

12

19M7493

Cap Screw

M12 X 40

4шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

4шт.

24M7345

Washer

13.500 X 24 X 2.500 mm

4шт.

15

4326348

Gas Operated Cylinder

SUB FOR TH4326348

3шт.

16

H132922

Cotter Pin

6шт.

17

24M7055

Washer

8.400 X 16 X 1.600 mm

6шт.

19

9752231

Latch

SUB FOR TH9738794

1шт.

20

24M7053

Washer

17 X 30 X 3 mm

5шт.

21

M40461

Spring Locking Pin

2шт.

24

4271940

Hose Clamp

SUB FOR TH4271940

2шт.

25

4278853

Hose

SUB FOR TH4278853

1шт.

26

8053145

Bracket

SUB FOR TH8053145

1шт.

27

19M8011

Cap Screw

M12 X 30

2шт.

12H301

Lock Washer

1/2"

2шт.

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

30

4292679

Stop

SUB FOR TH4292679

2шт.

31

19M8011

Cap Screw

M12 X 30

4шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

4шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

4шт.

32

4055843

Grommet

SUB FOR TH108084

2шт.

34

19M7872

Cap Screw

M12 X 25

2шт.

12H301

Lock Washer

1/2"

2шт.

40

7030978

Vent

SUB FOR TH7030978

1шт.

41

19M7402

Cap Screw

M10 X 25

4шт.

42

12M7066

Lock Washer

10 mm

4шт.

43

24M7028

Washer

10.500 X 20 X 2 mm

4шт.
