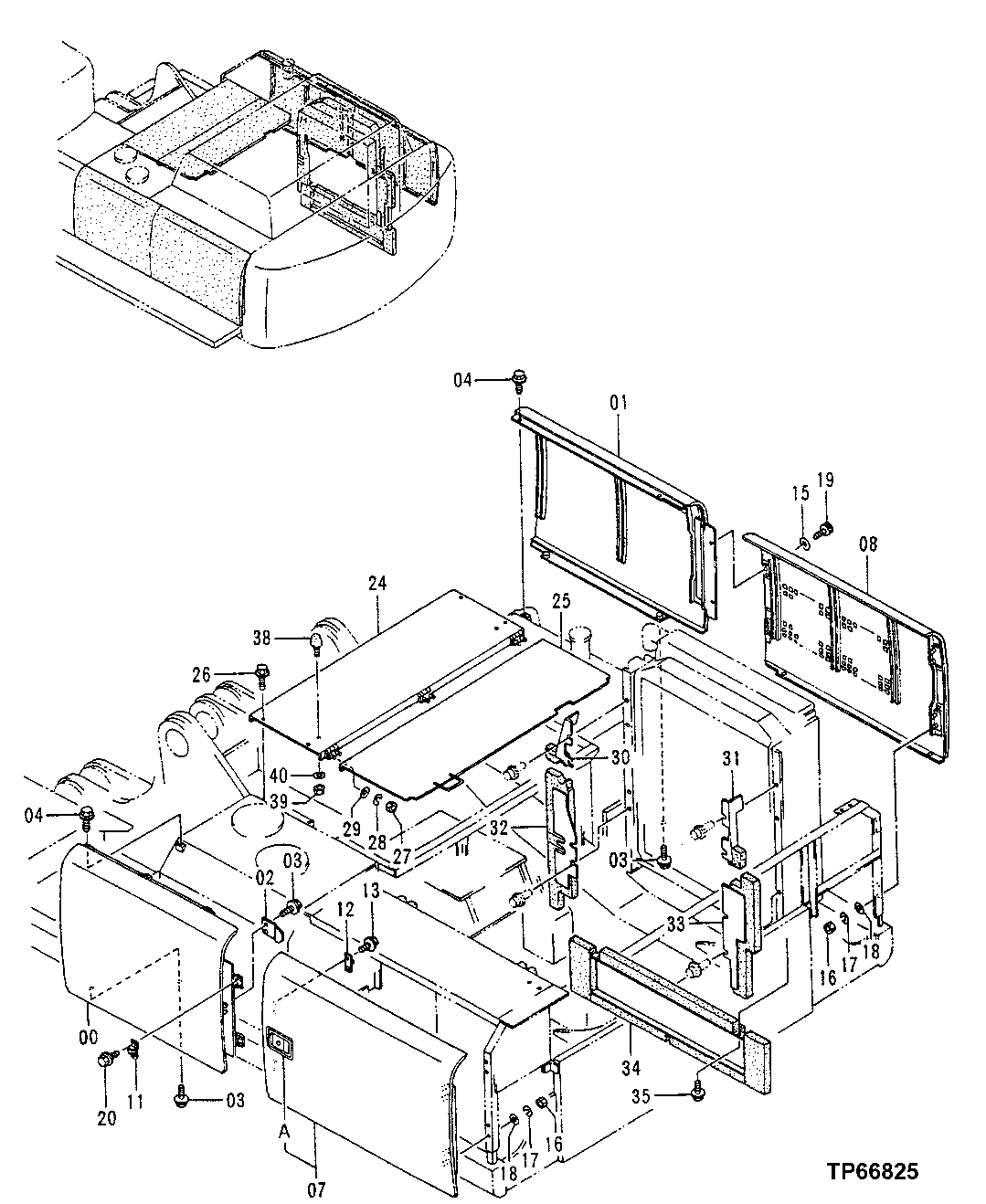

Запчасти John Deere 50LC 100 - Cover 1910 Hood Or Engine Enclosure

0

5005317

Door

LH, SUB FOR TH5003517; SUB FOR TH5005317

1шт.

1

6014667

Door

SUB FOR TH6014667

1шт.

2

4294325

Hinge

SUB FOR TH4294325

1шт.

3

19M8011

Cap Screw

M12 X 30

6шт.

12H301

Lock Washer

1/2"

6шт.

24M7047

Washer

13 X 24 X 2.500 mm

6шт.

4

19M8011

Cap Screw

M12 X 30

4шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

4шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

4шт.

7

5005568

Door

SUB FOR TH5005568

1шт.

7A

4361766

Latch

SUB FOR AT217114

1шт.

8

6015545

Door

SUB FOR TH6015545

1шт.

11

4175253

Bracket

SUB FOR AT318015, AT154915

2шт.

12

4175254

Stop

SUB FOR AT154916

2шт.

13

19M7923

Cap Screw

M6 X 12 SUB FOR 19M6614

4шт.

12M7006

Lock Washer

6 mm

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

15

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

16

14M7275

Nut

M12

8шт.

17

12H301

Lock Washer

1/2"

8шт.

18

24M7047

Washer

13 X 24 X 2.500 mm

8шт.

19

19M8168

Screw

M12 X 25

2шт.

20

19M7923

Cap Screw

M6 X 12 SUB FOR 19M6614

4шт.

12M7006

Lock Washer

6 mm

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

24

7029445

Cover

SUB FOR TH7029445

1шт.

25

7029444

Cover

SUB FOR TH7029444

1шт.

26

19M8011

Cap Screw

M12 X 30

4шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

4шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

4шт.

27

14M7273

Nut

M8

6шт.

28

Washer

12M7065 NLA

6шт.

29

24M7055

Washer

8.400 X 16 X 1.600 mm

6шт.

30

8061984

Bracket

SUB FOR TH8061984

1шт.

31

8061983

Bracket

SUB FOR TH8061983

1шт.

32

7028694

Isolator

SUB FOR TH7028694

1шт.

33

7025621

Isolator

SUB FOR TH7025621

1шт.

34

7029442

Isolator

SUB FOR TH7029442

1шт.

35

19M8011

Cap Screw

M12 X 30

2шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

2шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

2шт.

38

4204586

Bumper

SUB FOR TH108668

2шт.

39

14M7274

Nut

M10

2шт.

40

12M7066

Lock Washer

10 mm

2шт.
