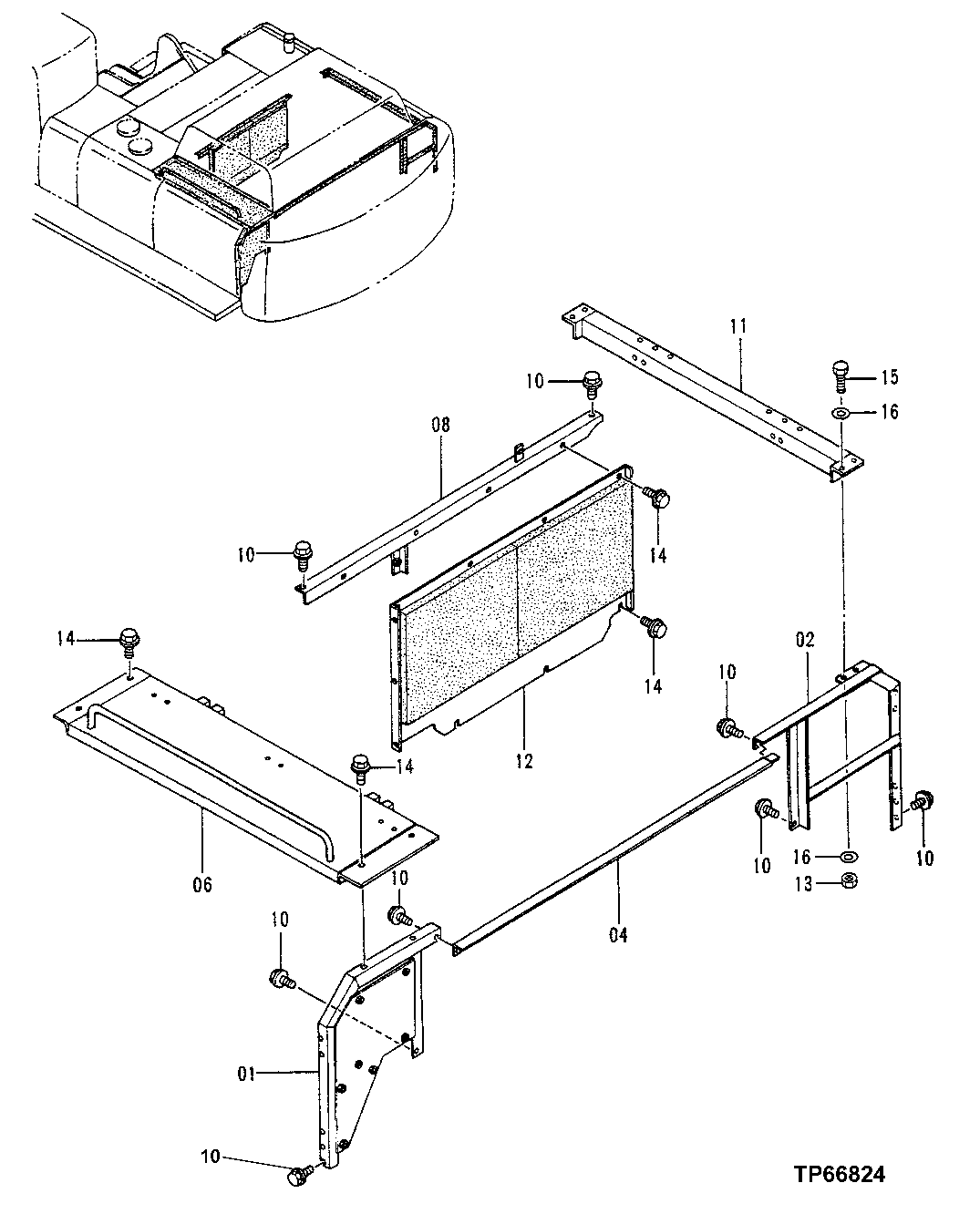

Запчасти John Deere 50LC 99 - Cover 1910 Hood Or Engine Enclosure

1

7032695

Support

(SUB FOR TH7032695)

1шт.

2

7027179

Support

(SUB FOR TH7027179)

1шт.

4

8067010

Support

(SUB FOR TH8067010)

1шт.

6

7032694

Cover

(SUB FOR TH7032694)

1шт.

8

8060939

Support

(SUB FOR TH8060939)

1шт.

10

19M8011

Cap Screw

M12 X 30

8шт.

12H301

Lock Washer

1/2"

8шт.

24M7047

Washer

13 X 24 X 2.500 mm

8шт.

11

8069495

Support

(SUB FOR TH8069495)

1шт.

12

7029438

Partition

(SUB FOR TH7029438)

1шт.

13

14M7275

Nut

M12

4шт.

14

19M8011

Cap Screw

M12 X 30

12шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

12шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

12шт.

15

19M7403

Cap Screw

M12 X 35

4шт.

16

24M7345

Washer

13.500 X 24 X 2.500 mm

8шт.
