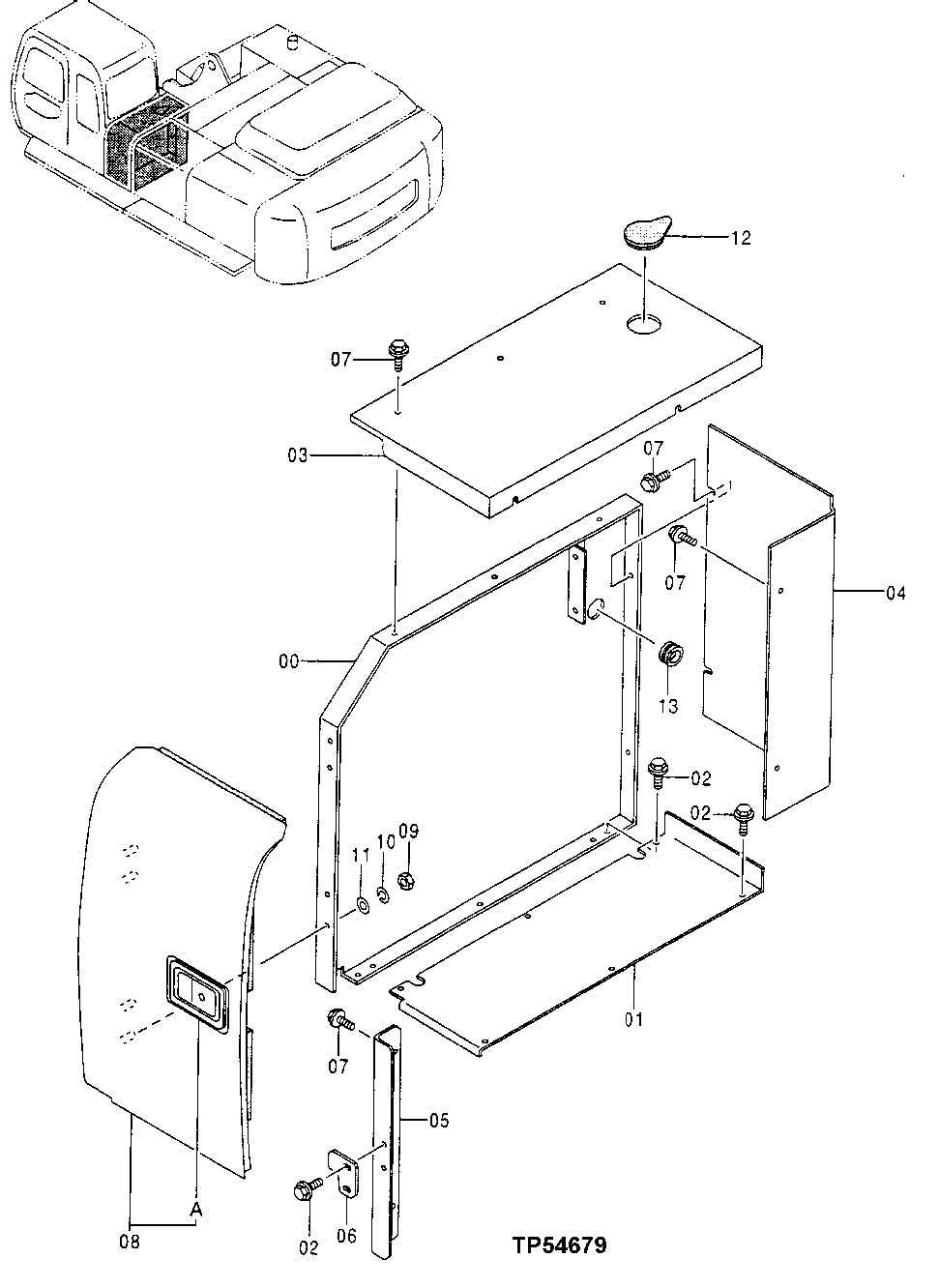

Запчасти John Deere 50LC 98 - Cover 1910 Hood Or Engine Enclosure

0

7032498

Cover

(SUB FOR AT217013)

1шт.

1

3078185

Plate

(SUB FOR TH3078185)

1шт.

2

19M7403

Cap Screw

M12 X 35

10шт.

12H301

Lock Washer

1/2"

10шт.

24M7047

Washer

13 X 24 X 2.500 mm

10шт.

3

3078183

Cover

(SUB FOR TH3078183)

1шт.

4

3078184

Shield

(SUB FOR TH3078184)

1шт.

5

8067547

Bracket

(SUB FOR AT217027)

1шт.

6

4378181

Plate

(SUB FOR AT216988)

1шт.

7

19M8011

Cap Screw

M12 X 30

11шт.

12H301

Lock Washer

1/2"

11шт.

24M7047

Washer

13 X 24 X 2.500 mm

11шт.

8

5005310

Door

(SUB FOR TH5005310)

1шт.

8A

4361763

Lock

(SUB FOR AT214010)

1шт.

9

14M7275

Nut

M12

4шт.

10

12H301

Lock Washer

1/2"

4шт.

11

24M7047

Washer

13 X 24 X 2.500 mm

4шт.

12

3058180

Cap

(SUB FOR AT155242)

1шт.

13

U15091

Grommet

1шт.
