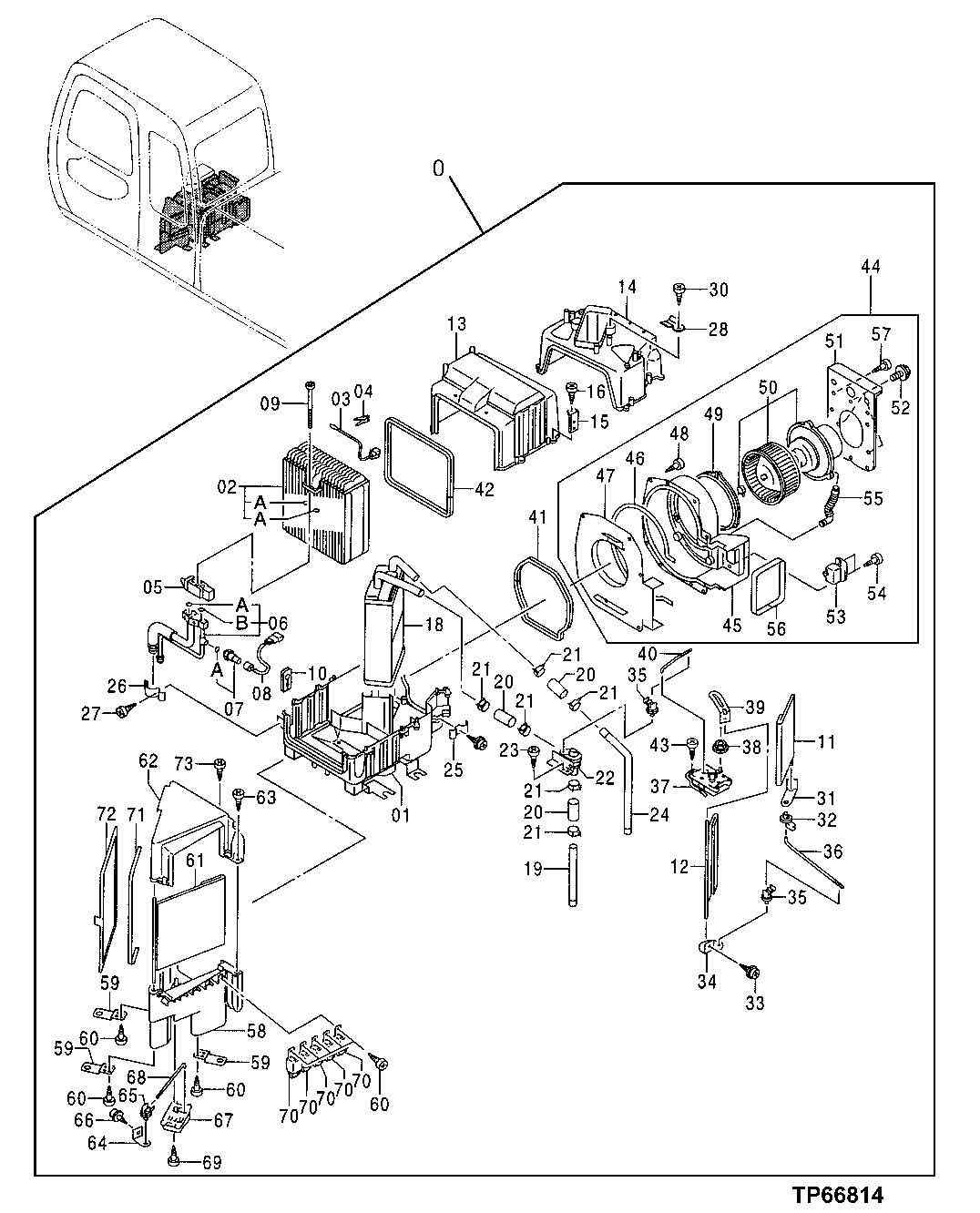

Запчасти John Deere 50LC 92 - Air Conditioner 1830 Heating & Air Conditioning

0

4375485

Air Conditioner

SUB FOR AT217133

1шт.

1

Housing

SUB FOR AT180993)( 4382811 NLA

1шт.

2

4382812

Evaporator

SUB FOR AT180994

1шт.

2A

4297380

O-Ring

SUB FOR 4622346, 4674883, A T180995, 4350206 OR 4509180

2шт.

3

4382813

Thermostat

SUB FOR AT180996

1шт.

4

4363957

Clamp

SUB FOR AT180997

1шт.

5

4382814

Flow Control Hyd. Valve

SUB FOR AT180998

1шт.

6

4382815

Tube

SUB FOR AT180999

1шт.

6A

4297380

O-Ring

SUB FOR 4622346, 4674883, A T180995, 4350206 OR 4509180

1шт.

6B

CH11568

Packing

SUB FOR AT181001 AND 4350187 AND 4226445

1шт.

7

Pressure Switch

AT322233 NLA

1шт.

AT336248

Pressure Switch

SUB FOR 4382816 OR 4469059 OR AT181007

1шт.

4363718

O-Ring

1шт.

8

4382817

Wiring Harness

SUB FOR AT181004

1шт.

9

19M8627

Screw

M6 X 20

2шт.

10

4382818

Grommet

SUB FOR AT181005

1шт.

11

4382819

Door

SUB FOR AT181006

1шт.

12

4382820

Door

SUB FOR AT181007

1шт.

13

Case

SUB FOR AT186862; 4406285 NLA

1шт.

14

4382822

Housing

SUB FOR AT181009

1шт.

15

4406286

Bracket

SUB FOR AT186863

1шт.

16

4382883

Screw

SUB FOR AT181011

11шт.

18

4382824

Radiator

SUB FOR AT181013

1шт.

19

4382825

Line

SUB FOR AT181014

1шт.

20

Bulk Hose

SUB FOR AT181015; 4382826 NO LONGER AVAILABLE FOR SERVICE; FURNISH TY22 328 BULK MATERIAL CUT TO 60 MM LENGT H

3шт.

21

4382827

Hose Clamp

SUB FOR AT181016

6шт.

22

4382828

Flow Control Hyd. Valve

SUB FOR AT181017

1шт.

23

4382829

Screw

SUB FOR AT181018

2шт.

24

4382830

Line

SUB FOR AT181019

1шт.

25

4363958

Clamp

SUB FOR AT181020

1шт.

26

4382831

Clamp

SUB FOR AT181021

1шт.

27

4382832

Screw

SUB FOR AT181022

1шт.

28

4363950

Bracket

SUB FOR AT181023

1шт.

30

4236448

Screw

SUB FOR AT181024

1шт.

31

4363947

Lever

SUB FOR AT173809

1шт.

32

4363956

Bushing

SUB FOR AT173819

2шт.

33

J460308

Screw With Washer

SUB FOR AT181025

3шт.

34

4363945

Lever

SUB FOR AT173807

1шт.

35

4362310

Clamp

SUB FOR AT173818

2шт.

36

4382833

Rod

SUB FOR AT181026

1шт.

37

4363945

Lever

SUB FOR AT173807

1шт.

38

4363955

Bushing

SUB FOR AT173817

1шт.

39

4382835

Lever

SUB FOR AT181028

1шт.

40

4382836

Rod

SUB FOR AT181029

1шт.

41

4406288

Packing

SUB FOR AT186865

2шт.

42

4382838

Isolator

SUB FOR AT181031

1шт.

43

4382839

Screw

SUB FOR AT181032

3шт.

44

4406287

Blower

SUB FOR AT186864

1шт.

45

Housing

SUB FOR TH4382841; 4382841 NLA

1шт.

46

4363966

Isolator

SUB FOR AT173820

1шт.

47

4382842

Plate

SUB FOR TH4382842

1шт.

48

4382843

Screw

SUB FOR AT181034

5шт.

49

4363944

Gasket

SUB FOR AT173804

1шт.

50

4406290

Blower Motor

SUB FOR TH4406290

1шт.

51

4395660

Bracket

SUB FOR TH4395660

1шт.

52

4382848

Screw

SUB FOR AT181039

3шт.

53

4406289

Resistor

SUB FOR AT186866

1шт.

54

4382884

Screw

SUB FOR AT181041

2шт.

55

4363954

Tube

SUB FOR AT173815

1шт.

56

4382850

Packing

SUB FOR AT181042

1шт.

57

4364031

Screw

SUB FOR AT181043

1шт.

58

4382852

Housing

SUB FOR AT181044

1шт.
