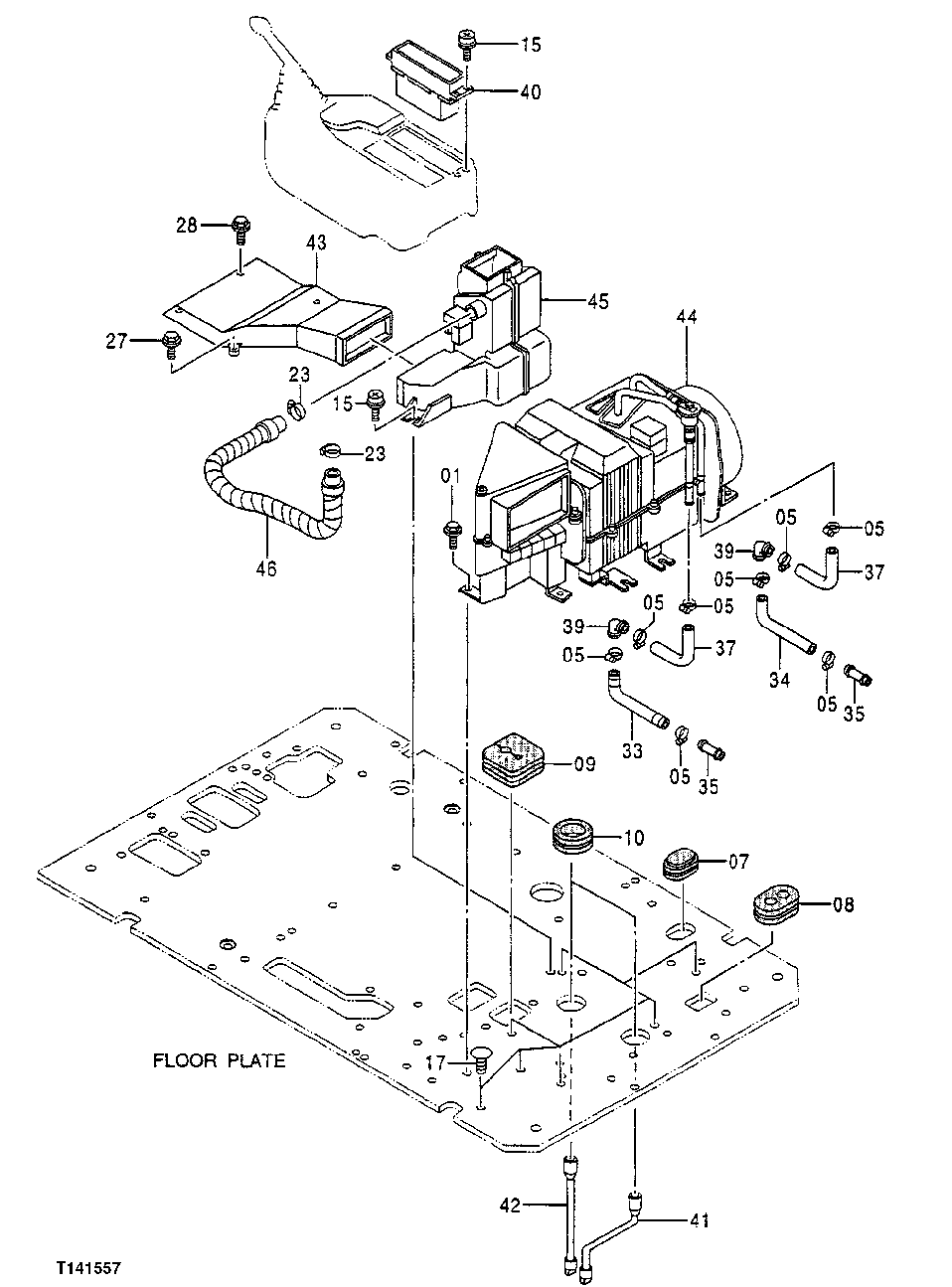

Запчасти John Deere 50LC 87 - Air Conditioner 1830 Heating & Air Conditioning

1

19M7402

Cap Screw

M10 X 25

11шт.

12M7066

Lock Washer

10 mm

11шт.

24M7028

Washer

10.500 X 20 X 2 mm

11шт.

5

WZ2141223

Hose Clamp

SUB FOR AA34965

8шт.

7

9738084

Plug

SUB FOR AT214398

1шт.

8

4276794

Grommet

SUB FOR AT154344

1шт.

9

4351009

Grommet

SUB FOR AT215523

1шт.

10

4361147

Grommet

SUB FOR AT214002

2шт.

15

21M7265

Screw

M5 X 12

4шт.

17

4280359

Plug

SUB FOR AT154351

8шт.

23

TY22470

Clamp

SUB FOR AR65293

2шт.

27

19M7881

Screw

M8 X 20

2шт.

Washer

12M7065 NLA

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

28

19M7866

Screw

M8 X 20 SUB FOR AT213603 OR J0508 20, ALONG WITH 24M7036 AND 12M7065

2шт.

24M7036

Washer

9 X 16 X 1.600 mm

2шт.

Washer

12M7065 NLA

2шт.

33

4344638

Hose

SUB FOR AT214027 OR 4366623

1шт.

34

4344638

Hose

SUB FOR AT213898

1шт.

35

4341800

Tube

SUB FOR AT213885

2шт.

37

R184812

Radiator Hose

SUB FOR AT217129, AT217128 OR 4373430

2шт.

39

4394036

Pipe Elbow

SUB FOR AT217134, 4376262

2шт.

40

4405812

Control

SUB FOR AT186244

1шт.

41

4375370

Hose

SUB FOR AT217132

1шт.

42

4251897

Hose

SUB FOR AT155266

1шт.

43

4350243

Air Duct

SUB FOR AT213940

1шт.

44

4375485

Air Conditioner

SUB FOR AT217133

1шт.

45

4361107

Housing

SUB FOR AT215531

1шт.

46

4377169

Hose

SUB FOR AT217828

1шт.
