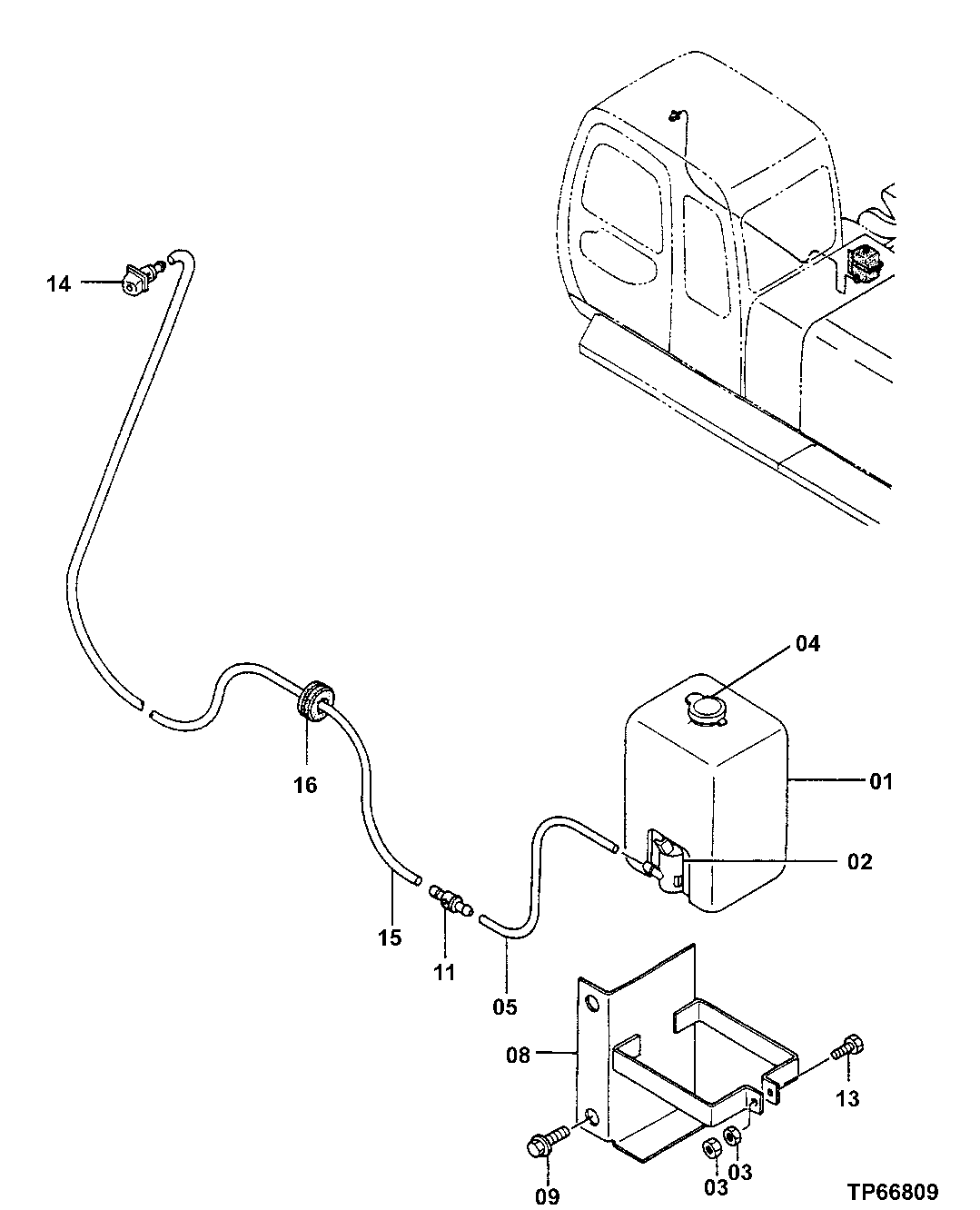

Запчасти John Deere 50LC 72 - Window Washer 1810 Operator Enclosure

1

T104082

Tank

1шт.

2

AT106365

Pump

1шт.

3

14M7272

Nut

M6

2шт.

4

AT106413

Cap

1шт.

5

4334203

Hose

(SUB FOR AT202232)

1шт.

8

7025226

Bracket

(SUB FOR AT201860)

1шт.

9

19M8011

Cap Screw

M12 X 30

2шт.

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

12H301

Lock Washer

1/2"

2шт.

11

4273335

Check Valve

(SUB FOR AT201739)

1шт.

13

19M7874

Cap Screw

M6 X 30

1шт.

14

4282793

Nozzle

(SUB FOR AT154358)

1шт.

15

Hose

(CTL FROM R54445 BULK MATERIAL)

1шт.

16

4287903

Grommet

(SUB FOR AT154413)

1шт.
