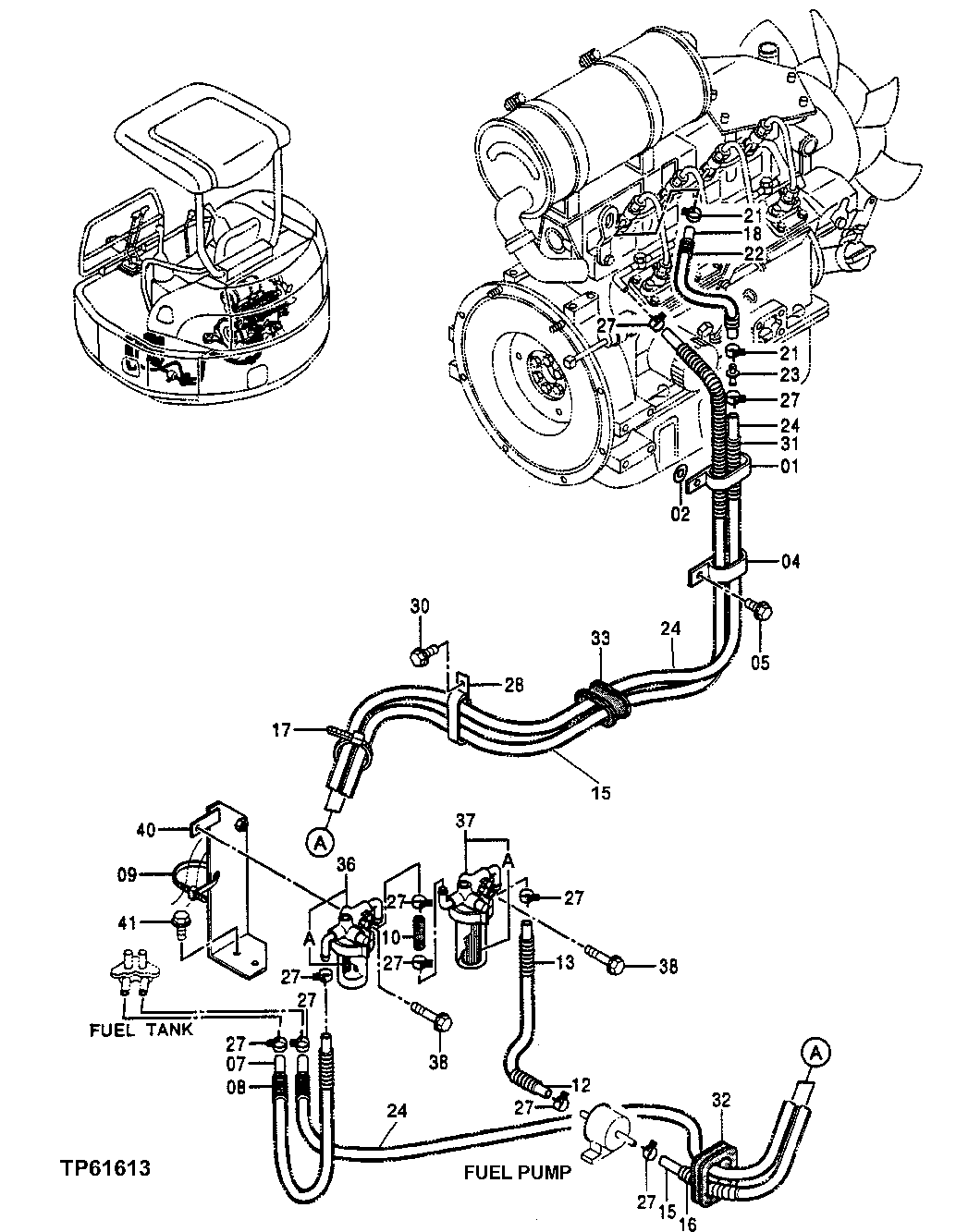

Запчасти John Deere 0ZTS 59 - Fuel Lines 0560 External Fuel Supply Systems

1

R50454

Clamp

SUB FOR TH109445 OR 4192034

1шт.

2

12M7036

Lock Plate

1шт.

4

XCL-29

Hose Clamp

SUB FOR TH110522 OR 4193848

1шт.

5

19M8324

Cap Screw

M10 X 16

1шт.

12M7066

Lock Washer

10 mm

1шт.

7

Hose

CUT TO LENGTH FROM TY223 24 BULK MATERIAL; 480 MM

1шт.

8

4400457

Hose Guard

SUB FOR AT258376

1шт.

9

H77698

Tie Band

1шт.

10

Hose

CUT TO LENGTH FROM TY22 324 BULK MATERIAL; 50 MM

1шт.

12

Hose

CUT TO LENGTH FROM TY223 24 BULK MATERIAL; 300 MM

1шт.

13

4400458

Hose Guard

SUB FOR AT258377, 4299654 OR 4422674

1шт.

15

Hose

CUT TO LENGTH FROM TY223 24 BULK MATERIAL; 1300 MM

1шт.

16

TY26189

Conduit

SUB FOR AT258378 OR 4397686

1шт.

17

H77698

Tie Band

2шт.

18

Hose

CUT TO LENGTH FROM TY225 51 BULK MATERIAL; 100 MM

1шт.

21

4351486

Hose Clamp

SUB FOR AT251251

2шт.

22

TY26188

Conduit

SUB FOR AT258382 OR 4403055

1шт.

23

4399418

Adapter Fitting

SUB FOR AT251412

1шт.

24

Hose

CUT TO LENGTH FROM TY225 51 BULK MATERIAL; 1600 MM

1шт.

27

4339258

Hose Clamp

SUB FOR AT251236

10шт.

28

T32854

Clamp

1шт.

30

19M7881

Screw

M8 X 20

1шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

Washer

12M7065 NLA

1шт.

31

TY26189

Conduit

SUB FOR AT258383 OR 4404297

1шт.

32

4205082

Grommet

SUB FOR TH108615

1шт.

33

4393101

Grommet

SUB FOR AT251356

1шт.

36

8970862453

Filter

SUB FOR AT254924; WATER SEPARATOR

1шт.

36A

8943602540

Filter Element

SUB FOR 4418776; SUB FOR AT251519

1шт.

37

8971788182

Fuel Filter

SUB FOR AT254971, 8971788181; FUEL

1шт.

37A

8970713480

Filter Element

SUB FOR AT256025; SUB FOR 4454529

1шт.

38

19M7663

Cap Screw

M8 X 70

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

Washer

12M7065 NLA

2шт.

40

9749783

Bracket

SUB FOR AT251645

1шт.

41

19M7407

Cap Screw

M8 X 25

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

Washer

12M7065 NLA

2шт.
