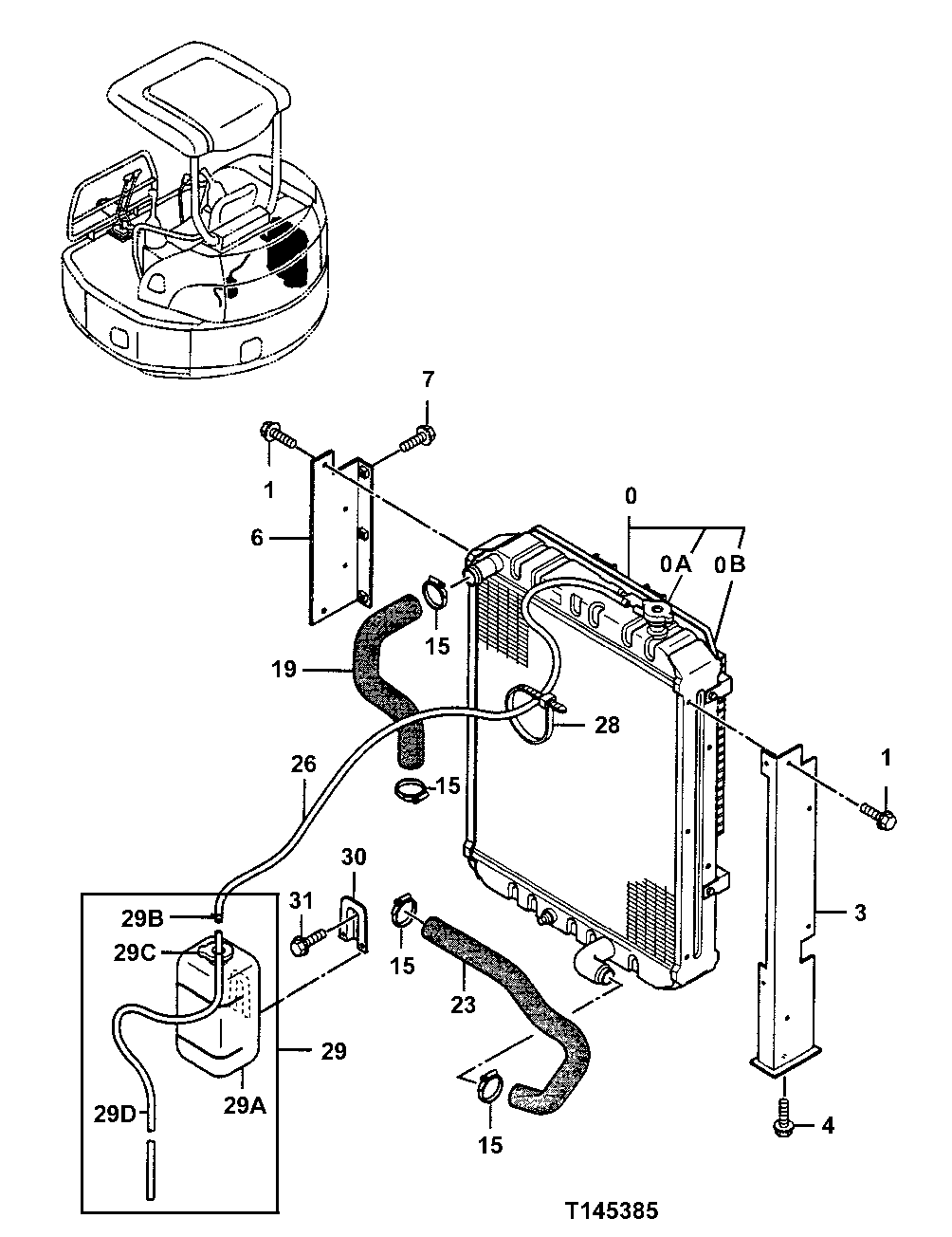

Запчасти John Deere 0ZTS 48 - Radiator 0510 Engine Cooling Systems

0

Radiator

4390488 NLA, SUB FOR AT2513 23, ORDER 4434312 AND 4373424

1шт.

0A

4434312

Filler Cap

SUB FOR AT255963

1шт.

0B

4373424

Oil Cooler

SUB FOR TH4373424

1шт.

1

19M7964

Cap Screw

M8 X 12

8шт.

Washer

12M7065 NLA

8шт.

3

8070294

Bracket

SUB FOR AT251572

1шт.

4

19M7662

Cap Screw

M10 X 30

1шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

1шт.

12M7066

Lock Washer

10 mm

1шт.

6

8070295

Bracket

SUB FOR AT251573

1шт.

7

19M7077

Cap Screw

M6 X 20

3шт.

24M7267

Washer

6.400 X 11 X 1.600 mm

3шт.

12M7006

Lock Washer

6 mm

3шт.

15

TY22470

Clamp

SUB FOR AR65293

4шт.

19

3076297

Radiator Hose

SUB FOR AT251135

1шт.

23

3081936

Radiator Hose

SUB FOR AT251148

1шт.

26

Hose

1шт.

28

H77698

Tie Band

1шт.

29

Tank

NOT AVAILABLE FOR SERVICE AS COMPLE TE ASSEMBLY - ORDER INDIVIDUAL PARTS

1шт.

29A

4397682

Reservoir

SUB FOR AT251399

1шт.

29B

4508575

Clamp

SUB FOR AT250726 OR 4397686

2шт.

29C

4396809

Cap

SUB FOR AT251523 OR 4421236

1шт.

29D

Hose

VINYL

1шт.

30

4367147

Plate

SUB FOR P65788

1шт.

31

19M7300

Cap Screw

M6 X 10

2шт.

12M7006

Lock Washer

6 mm

2шт.
