Запчасти John Deere 0ZTS 31 - Engine Oil Pump And Oil Pump Intake 0407 Engine Oiling System

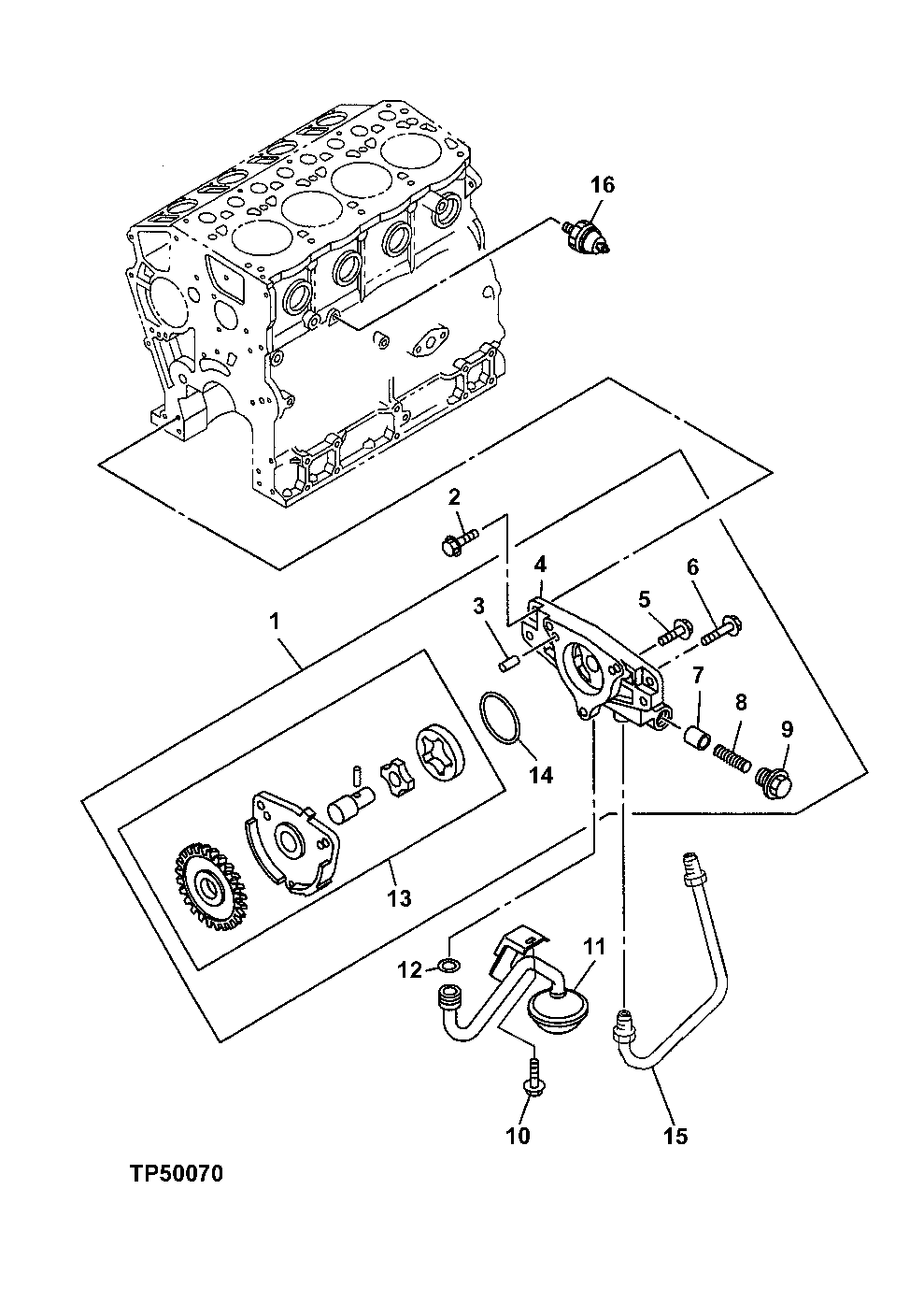

Схема запчастей John Deere 0ZTS - 31 - Engine Oil Pump And Oil Pump Intake 0407 Engine Oiling System

Артикул

Название

Примечание

Количество

1

8970488098

Oil Pump

SUB FOR AT254904, 8970488095 OR 8970488097

1шт.

2

0280808300

Bolt

SUB FOR AT259926

4шт.

3

9098780940

Dowel Pin

SUB FOR AT255013

2шт.

4

8970488105

Housing

SUB FOR AT260012 AND 8970488104

1шт.

5

0282806300

Bolt

SUB FOR AT191642 AND AT259921

2шт.

6

0280506500

Bolt

SUB FOR 0280806500 OR AT259923

2шт.

7

8942355671

Pressure Relief Valve

SUB FOR AT254852

1шт.

8

8971133320

Spring

SUB FOR AT254930

1шт.

9

8941046150

Fitting Plug

SUB FOR AT254839

1шт.

10

0280508160

Bolt

SUB FOR AT259924 OR 0280808160

1шт.

11

8971172990

Oil Pump Intake

SUB FOR AT254935

1шт.

12

AT254815

O-Ring

1шт.

13

8970448133

Oil Pump

SUB FOR AT254895

1шт.

14

8971096790

O-Ring

SUB FOR AT254929

1шт.

15

8970454000

Oil Line

SUB FOR AT254897

1шт.

16

1824100330

Pressure Sensor

SUB FOR AT254817

1шт.

Выбрано товаров: 16
