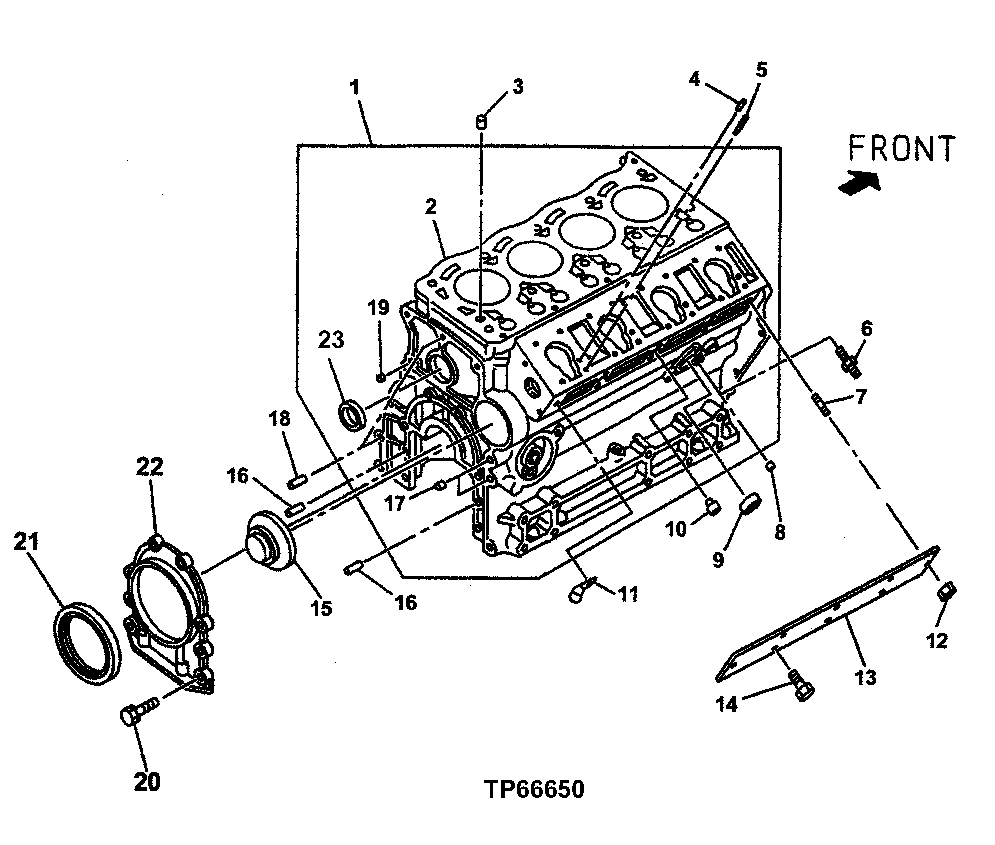

Запчасти John Deere 0ZTS 27 - Cylinder Block 0404 Cylinder Block

1

8971826972

Cylinder Block

SUB FOR AT254977 Additional Components on Seperate Page

1шт.

2

8971826972

Cylinder Block

SUB FOR AT254977

1шт.

3

8942170020

Dowel Pin

SUB FOR AT254849, 8942008190 OR 8972310071

1шт.

4

9098785320

Dowel Pin

SUB FOR AT255029

8шт.

5

AT254807

Stud

ARшт.

6

Connector

ARшт.

7

0410106160

Stud

SUB FOR AT255005 OR 8972621471

ARшт.

8

5096050192

Pipe Plug

SUB FOR AT254812

1шт.

9

1096000122

Plug

SUB FOR AT254809 OR 1096000121

ARшт.

10

8970394953

Pin

SUB FOR AT254887

2шт.

11

9099167241

Hose Clamp

SUB FOR AT255031

ARшт.

12

AT259944

Nut

ARшт.

13

Cover

NLA

1шт.

14

0280806140

Bolt

SUB FOR AT259917

ARшт.

15

8970471421

Plug

SUB FOR AT254903

1шт.

16

9098780940

Dowel Pin

SUB FOR AT255013

2шт.

17

5096000130

Plug

SUB FOR AT255032 AND AT254823

1шт.

18

9081508160

Pin Fastener

SUB FOR AT255014

2шт.

19

5096000130

Plug

SUB FOR AT255032 AND AT254823

4шт.

20

0280806200

Cap Screw

SUB FOR AT259919

6шт.

21

AT254827

Seal

1шт.

22

8972310300

Retainer

SUB FOR 8970447863 AND AT254894

1шт.

23

8942298530

Plug

SUB FOR AT254851

1шт.
