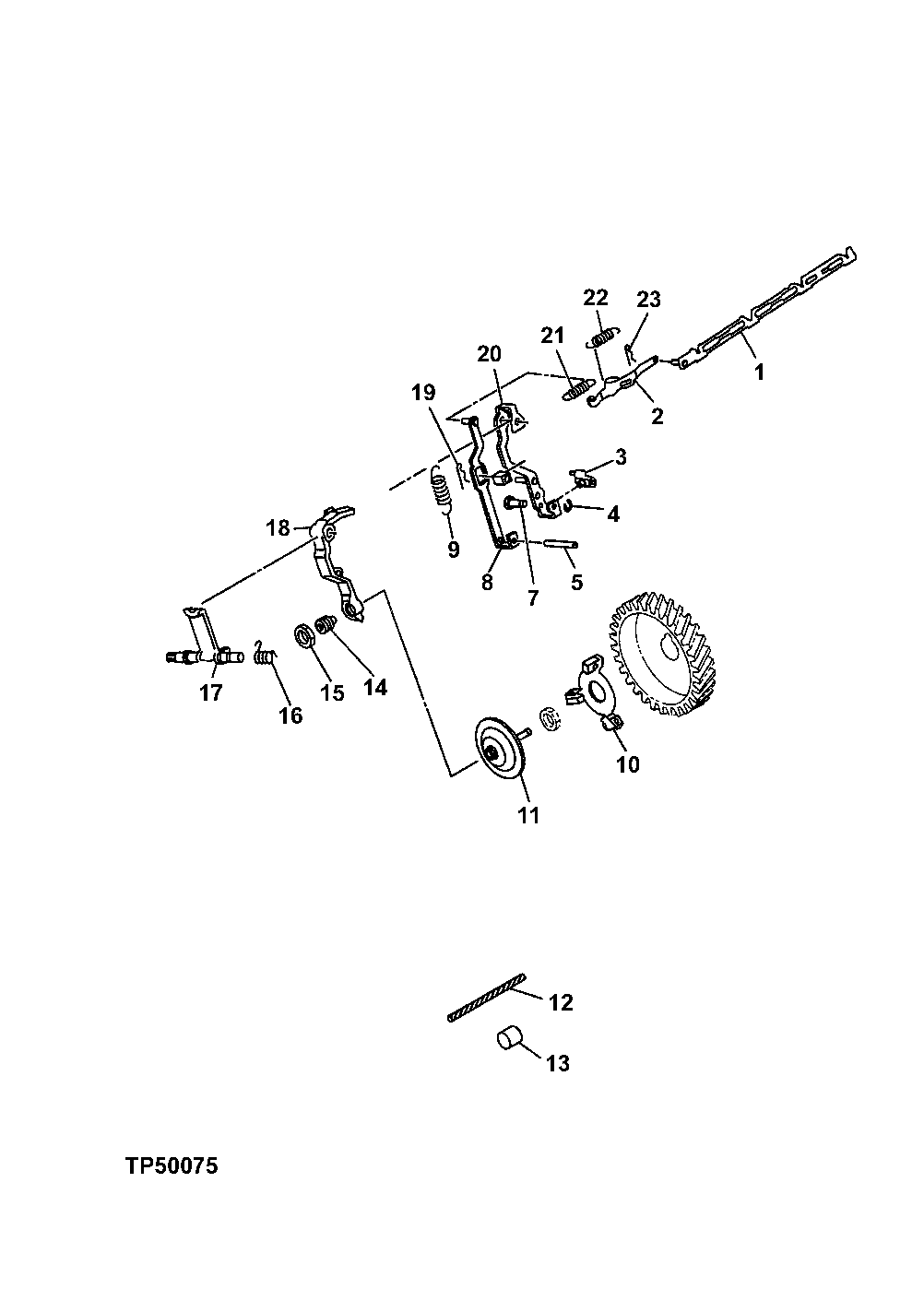

Запчасти John Deere 0ZTS 24 - TIMING LINKAGE 0402 Camshaft And Valve Actuating Means

1

8971488650

Link

(SUB FOR AT254966)

1шт.

2

8971485500

Link

(SUB FOR AT254965)

1шт.

3

8970346383

Link

(SUB FOR AT254882)

1шт.

4

0918055040

Snap Ring

(SUB FOR AT255023 OR 9091854040)

1шт.

5

9081605450

Pin

(SUB FOR AT255012)

1шт.

7

9082136250

Pin Fastener

(SUB FOR AT255016)

1шт.

8

8971485480

Lever

(SUB FOR AT254964)

1шт.

9

8970769040

Spring

(SUB FOR AT254917)

1шт.

10

8972153581

Weight

(SUB FOR AT254934 AND AT261426)

1шт.

11

8971474893

Sleeve

(SUB FOR AT254961, 897 1474890 OR 8971474892)

1шт.

12

9813254460

Wire

(SUB FOR AT260113)

1шт.

13

AT259948

Tag

1шт.

14

8971840800

Angle Kit

(SUB FOR AT254980)

1шт.

15

8941304380

Nut

(SUB FOR AT259960)

1шт.

16

8970169400

Torsion Spring

(SUB FOR AT254876)

1шт.

17

8970346424

Lever

(SUB FOR AT254883)

1шт.

18

8970346376

Lever

(SUB FOR AT254881)

1шт.

19

AT254816

Spring Locking Pin

1шт.

20

8970345945

Lever

(SUB FOR AT254879)

1шт.

21

8970837141

Spring

(SUB FOR AT254919, 8970837140)

1шт.

22

8971840980

Spring

(SUB FOR AT254981)

1шт.

23

AT254816

Spring Locking Pin

1шт.
