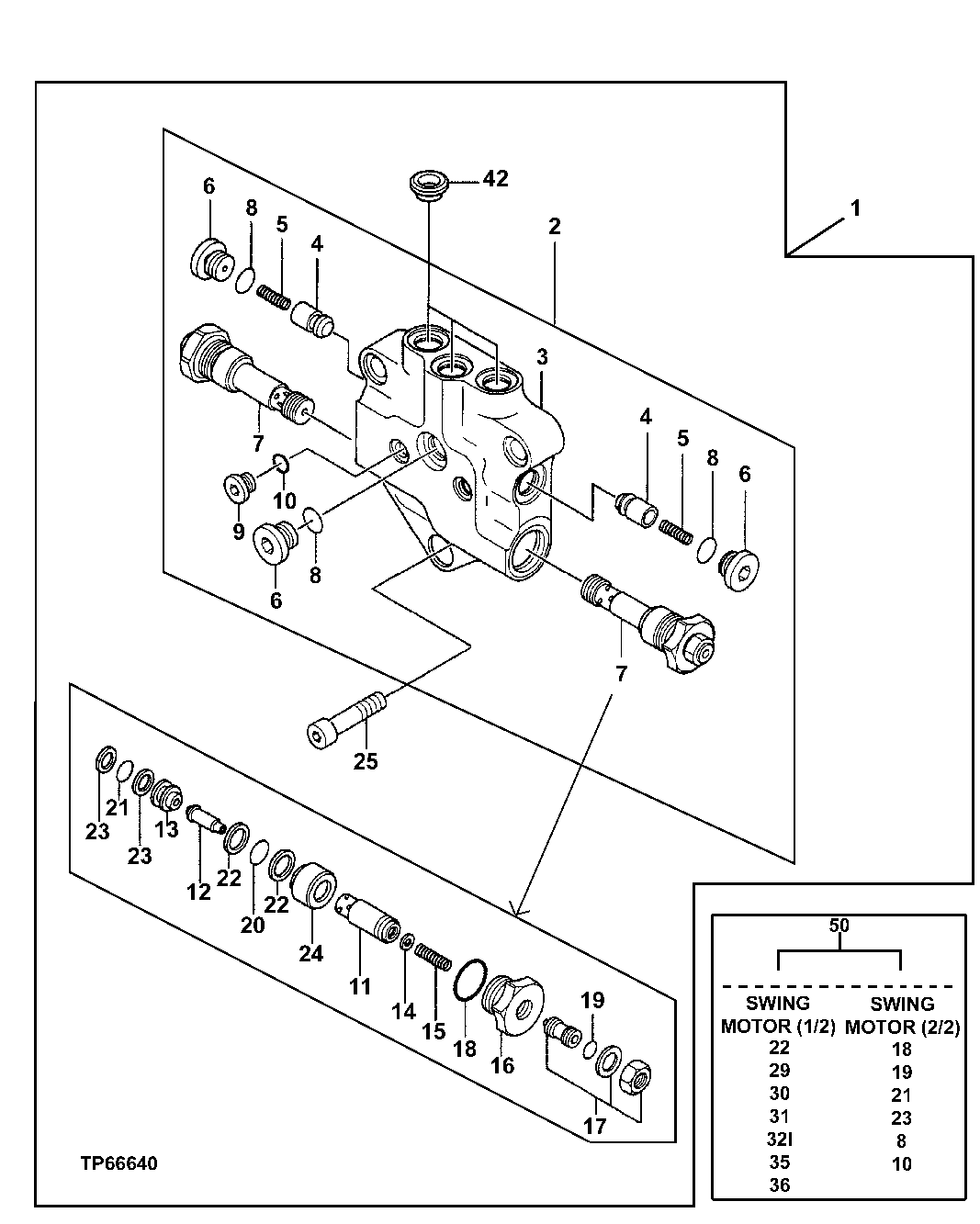

Запчасти John Deere 0ZTS 209 - Swing Motor And Park Brake, 2/2 4360 Hydraulics

1

Hydraulic Motor

CONTAINS ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENTS ON PREVIOUS PAGE 4404045 NLA, SUB FOR AT25595 0

1шт.

2

End Plate

0658801 NLA, SUB FOR AT251893

1шт.

3

Case

1шт.

4

Check Valve

2шт.

5

AT251801

Spring

2шт.

6

0311336

Pipe Plug

SUB FOR TH109082

3шт.

7

0658802

Pressure Relief Valve

SUB FOR AT251894

2шт.

8

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

3шт.

9

0647006

Fitting Plug

SUB FOR AT251802

2шт.

10

4506408

O-Ring

7.800 X 1.900 mm (0.307" X 0.075") SUB FOR TH101490

2шт.

11

Housing

1шт.

12

Poppet

1шт.

13

Seat

1шт.

14

Seat

1шт.

15

Spring

1шт.

16

Plug

1шт.

17

Adjuster

1шт.

18

AT318035

O-Ring

SUB FOR 4506424, TH100055

1шт.

19

CH17167

O-Ring

1шт.

20

Seal

1шт.

21

CH10568

Packing

1шт.

22

Ring

2шт.

23

4S01078

Back-Up Ring

SUB FOR 4027963

2шт.

24

Piston

1шт.

25

19M8734

Screw

M14 X 45 SUB FOR TH0158883

3шт.

42

Plug

4шт.

50

0658701

Seal Kit

ALSO CONTAINS COMPONENTS SHOWN O N PREVIOUS PAGE SUB FOR AT251892

1шт.
