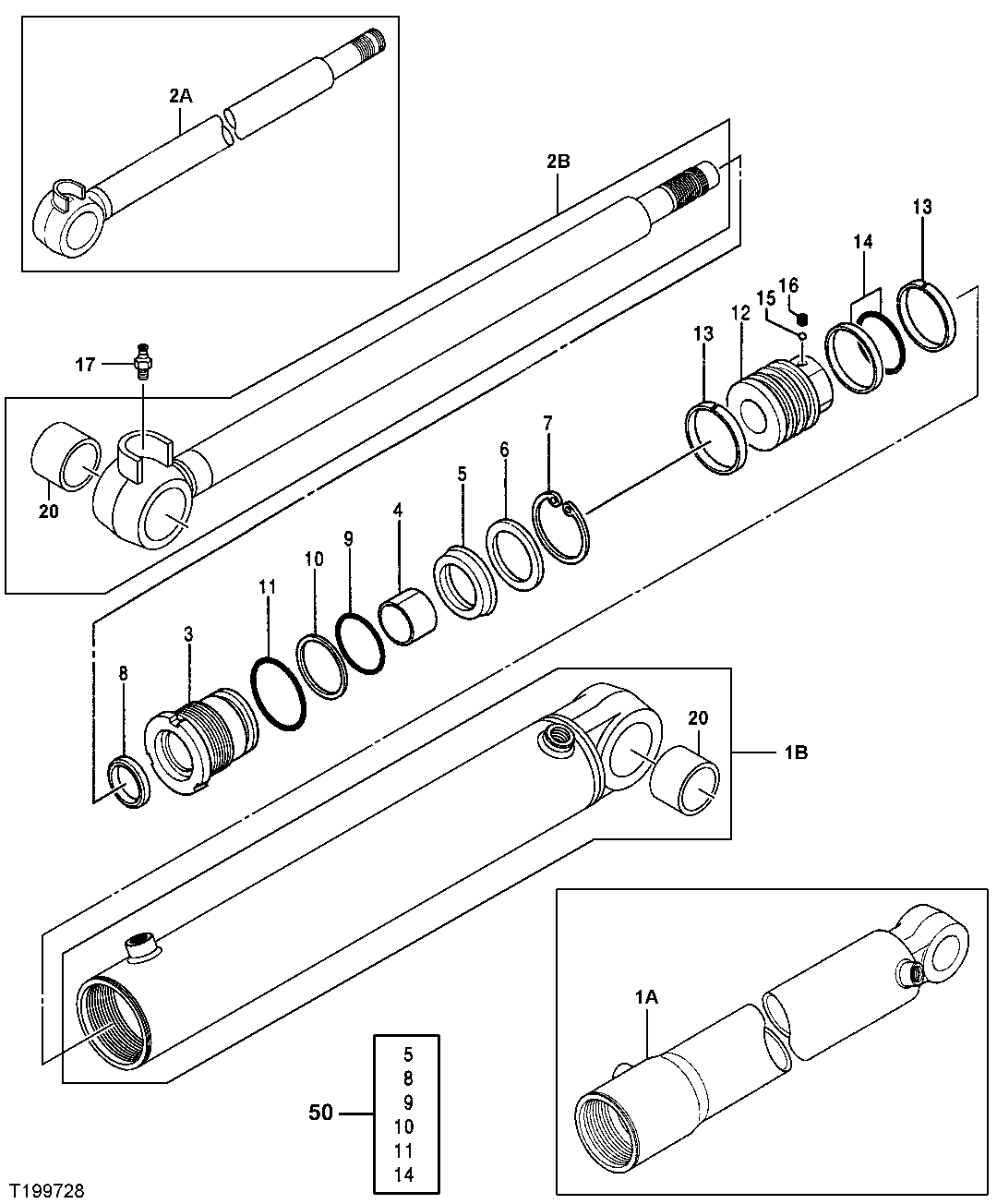

Запчасти John Deere 0ZTS 192 - Swing Cylinder 3360 HYDRAULIC SYSTEM

1A

Hydraulic Cylinder Barrel

SUB 0843801, AT251856 OR 0656601 NO LONGER AVAILABLE FOR SERVICE

1шт.

1B

0843801

Structural Tube

SUB FOR AT251856 OR 0656601

1шт.

2A

Rod

SUB 0843802, AT251857 OR 065660 2 NO LONGER AVAILABLE FOR SERVICE

1шт.

2B

0843802

Rod

SUB FOR AT251857 OR 0656602

1шт.

3

0656603

Hydr. Cylinder Rod Guide

SUB FOR AT251858

1шт.

4

0843809

Bushing

SUB FOR AT251760 OR 0478703

1шт.

5

Packing

1шт.

6

0481702

Ring

SUB FOR AT251775

1шт.

7

0481703

Snap Ring

SUB FOR AT251776

1шт.

8

0662901

Seal

SUB FOR AT251898

1шт.

9

O-Ring

1шт.

10

Ring

1шт.

11

Ring

1шт.

12

0663105

Piston

SUB FOR AT251900

1шт.

13

0225717

Ring

SUB FOR AT251770 OR 4S00154

2шт.

14

Ring

1шт.

15

0370110

Ball

SUB FOR AT251764 OR 0478719

1шт.

16

ER046420

Set Screw

SUB FOR AT251771 OR 0479214

1шт.

17

0429920

Lubrication Fitting

SUB FOR TH0429920

1шт.

20

4353818

Bushing

1шт.

50

0656604

Hydraulic Cylinder Kit

SUB FOR AT251859

1шт.
