191 - Swing Cylinder

Запчасти John Deere 0ZTS 191 - Swing Cylinder 3360 HYDRAULIC SYSTEM

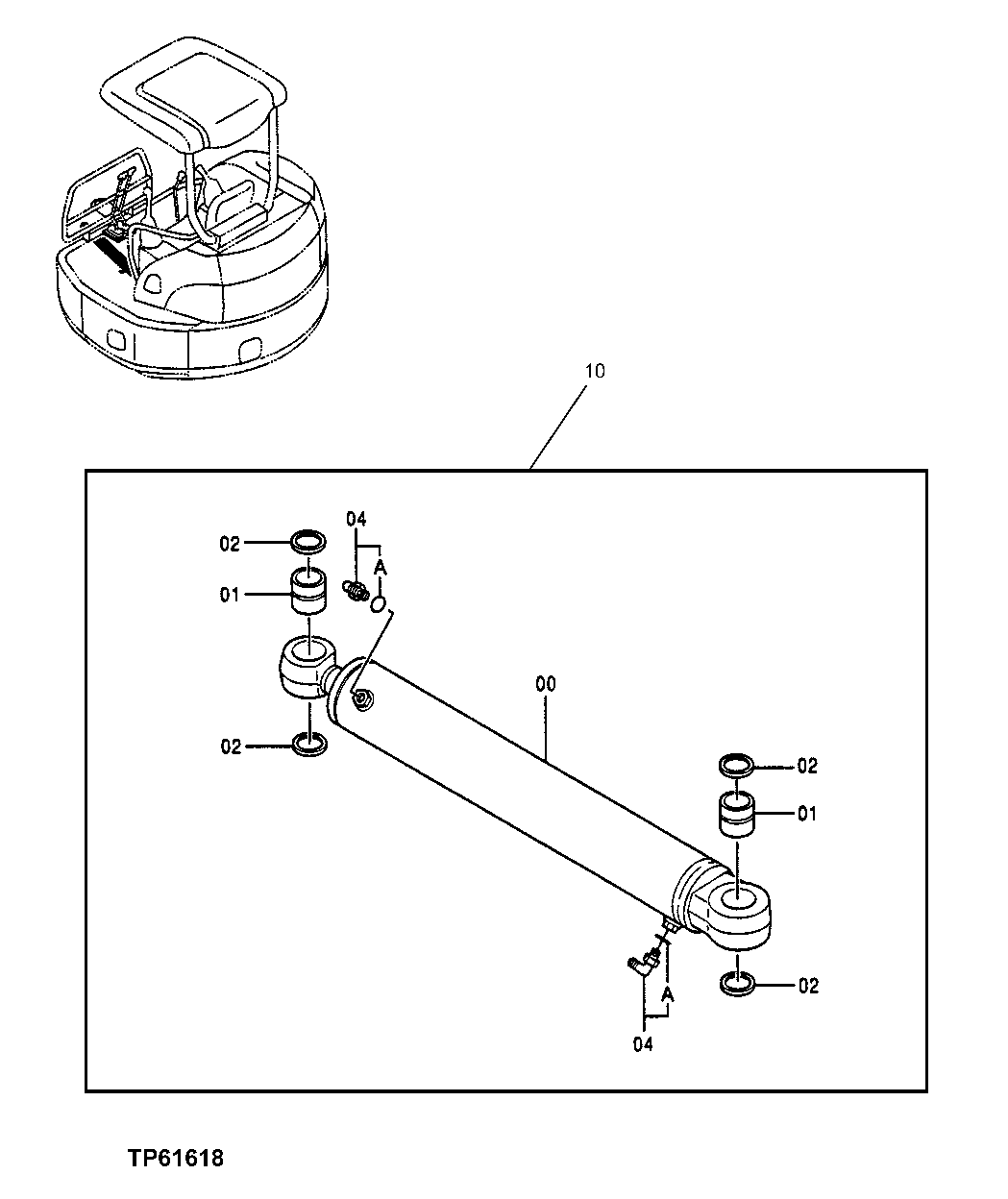

Схема запчастей John Deere 0ZTS - 191 - Swing Cylinder 3360 HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

Hydraulic Cylinder

(NOT AVAILABLE FOR SERVICE)

1шт.

1

4353818

Bushing

(SUB FOR P65881)

2шт.

2

4349913

Seal

(SUB FOR P65743)

4шт.

4

4133249

Elbow Fitting

(SUB FOR AT251164)

2шт.

4A

M800650

Packing

1шт.

10

4463353

Hydraulic Cylinder

(ALSO ORDER (2) AT318014) (SUB F OR 9164664, AT251614 OR 9184772)

1шт.

11

AT318014

Elbow Fitting

(NOT ILLUSTRATED) (SUB FOR 4156434)

2шт.
