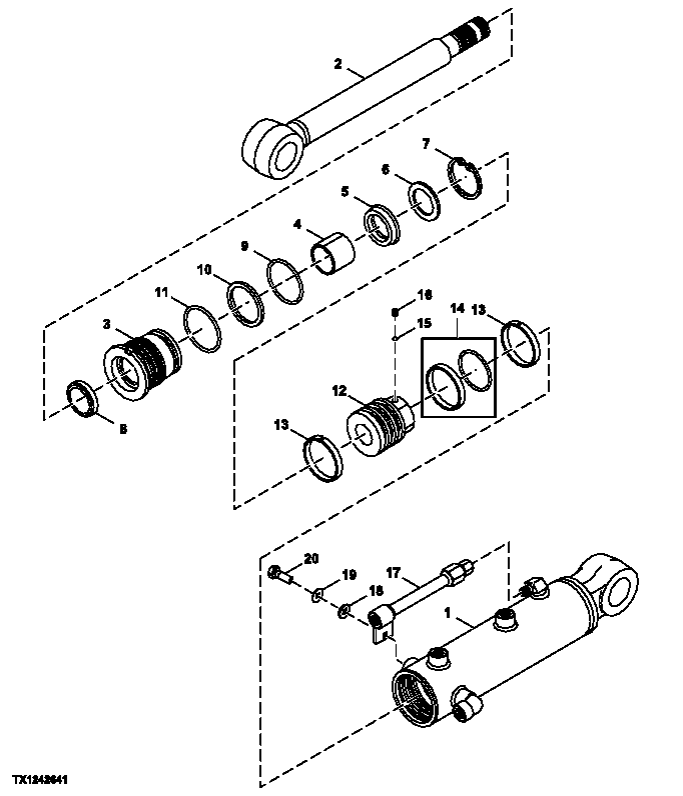

Запчасти John Deere 0ZTS 190 - BACKFILL BLADE CYLINDER 3360 HYDRAULIC SYSTEM

1

0654701

Hydraulic Cylinder Barrel

(SUB FOR 4391327 AND AT251613)

1шт.

2

0654702

Hydraulic Cylinder Rod

1шт.

3

0654703

Hydr. Cylinder Rod Guide

1шт.

4

AT264310

Bushing

(A) (SUB FOR 0654704)

1шт.

5

0495703

Packing

1шт.

6

0654705

Ring

1шт.

7

0654706

Snap Ring

1шт.

8

AT264312

Seal

(A) (SUB FOR 0663302)

1шт.

9

0654707

O-Ring

1шт.

10

0630002

Ring

(SUB FOR 0654708)

1шт.

11

0654709

O-Ring

1шт.

12

0654710

Piston

1шт.

13

AT264311

Ring

(A) (SUB FOR 0654711)

2шт.

14

0654712

Seal

1шт.

15

0370110

Ball

(SUB FOR 0478719 AND AT200154)

1шт.

16

ER046420

Set Screw

(SUB FOR AT251771 ) (SUB FOR 0479214)

1шт.

17

0654713

Oil Line

1шт.

18

0658610

Washer

1шт.

19

0662807

Washer

1шт.

20

Screw

( 0654714 NOT AVAILABLE)

1шт.

21

AT264223

O-Ring

(A)

1шт.

22

AT264320

O-Ring

(A)

1шт.

23

AT264386

Ring

(A)

1шт.

24

AT280443

Back-Up Ring

(A)

1шт.

25

AT280444

O-Ring

(A)

1шт.

26

AT264442

Hydraulic Cylinder Kit

(SUB FOR 0654715)(INCL UDES PARTS MARKED (A))

1шт.
