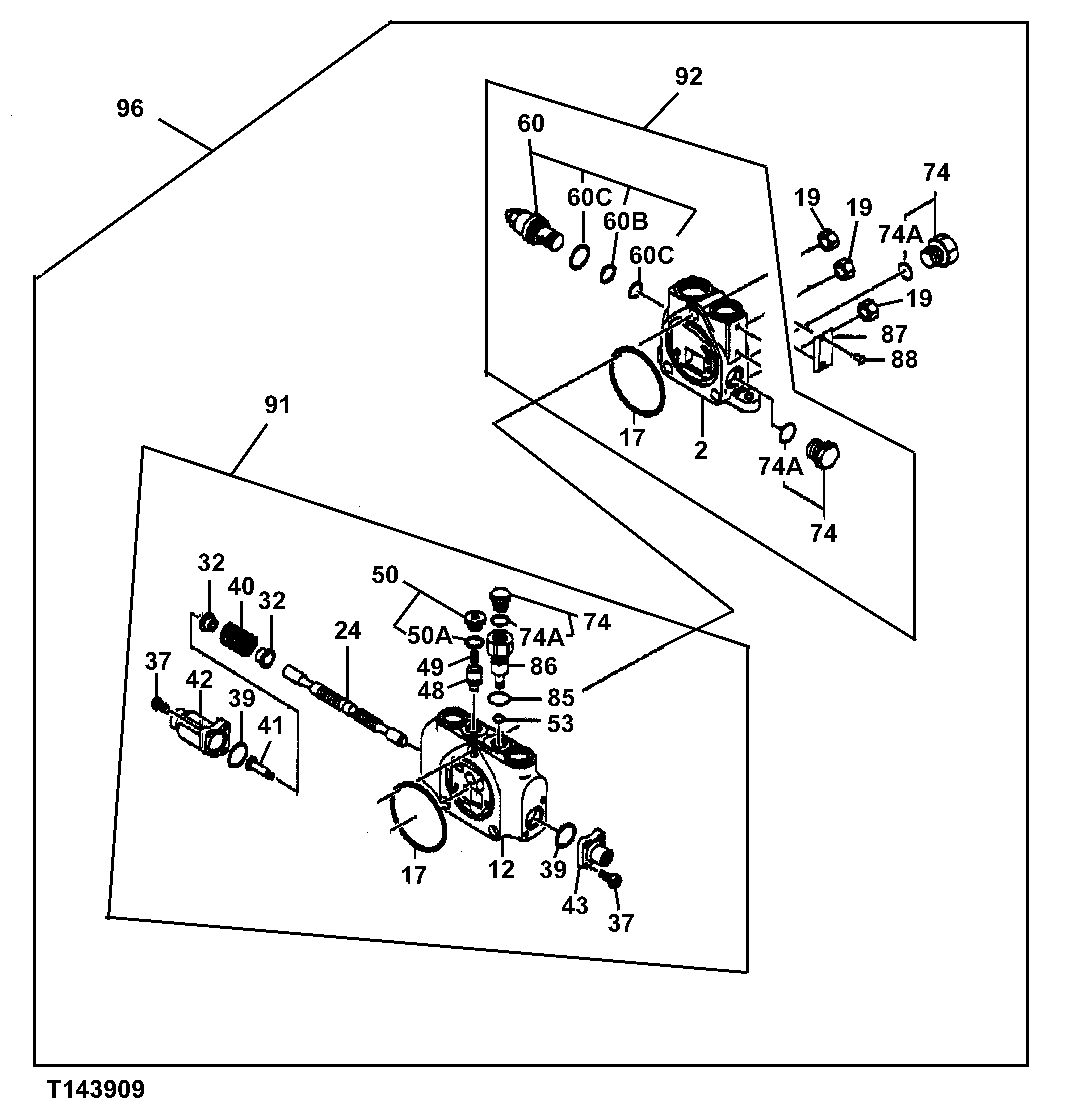

Запчасти John Deere 0ZTS 178 - RIGHT PROPEL CONTROL VALVE AND ENDCAP 3360 HYDRAULIC SYSTEM

2

Plate

1шт.

12

Plate

1шт.

17

0433401

O-Ring

SUB FOR AT251734

2шт.

19

Nut

3шт.

24

Valve Spool

1шт.

32

0433407

Guide

SUB FOR AT251736

2шт.

37

19M8627

Screw

M6 X 20

6шт.

39

0433411

O-Ring

SUB FOR AT251738

2шт.

40

0476305

Spring

SUB FOR AT251758

1шт.

41

0433413

Cap Screw

SUB FOR AT251739

1шт.

42

0433414

Cover

SUB FOR AT251740

1шт.

43

0433415

Cover

SUB FOR AT251741

1шт.

48

0681701

Check Valve

SUB FOR AT251916

1шт.

49

0433417

Spring

SUB FOR AT251742

1шт.

50

0664404

Fitting Plug

SUB FOR AT251904

1шт.

50A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

53

4506405

O-Ring

4.800 X 1.900 mm (0.189" X 0.075") SUB FOR TH102655

1шт.

60

Pressure Relief Valve

0734101 NLA

1шт.

60A

0976602

O-Ring

SUB FOR TH103574 OR AT264354 OR 4S00734

1шт.

60B

0433513

Back-Up Ring

SUB FOR AT251748

1шт.

60C

0637402

O-Ring

SUB FOR AT251797

1шт.

74

0433420

Fitting Plug

SUB FOR AT251743

3шт.

74A

M800650

Packing

1шт.

85

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

86

0734201

Adapter Fitting

SUB FOR AT251934

1шт.

87

Identification Plate

1шт.

88

Rivet

1шт.

91

0755201

Housing

RIGHT PROPEL

1шт.

92

Housing

ENDCAP 0755202 NLA

1шт.

96

Hyd Actuated Control Valve

4427490 NO LONGER AVAILABLE, CONTAI NS ALL ITEMS ON THIS PAGE - ADDITIONA L COMPONENTS LISTED ON PREVIOUS PAGES

1шт.

Hyd Actuated Control Valve

4447586 NO LONGER AVAILABLE, CONTAI NS ALL ITEMS ON THIS PAGE - ADDITIONA L COMPONENTS LISTED ON PREVIOUS PAGES

1шт.
