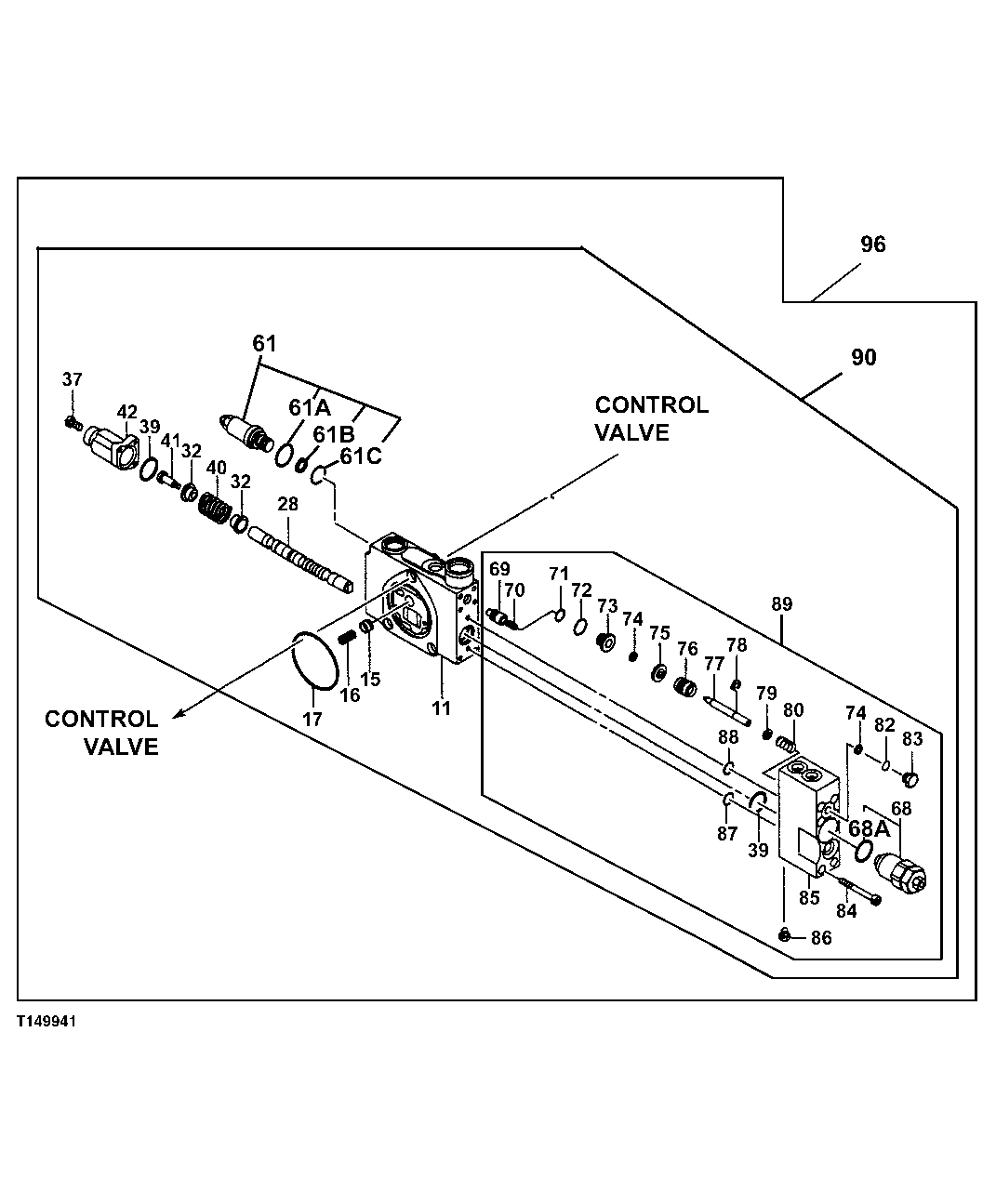

Запчасти John Deere 0ZTS 177 - Boom Control Valve 3360 HYDRAULIC SYSTEM

11

Housing

1шт.

15

0433501

Check Valve

SUB FOR AT251744

1шт.

16

0433502

Spring

SUB FOR AT251745

1шт.

17

0433401

O-Ring

SUB FOR AT251734

1шт.

28

Spool

1шт.

32

0433407

Guide

SUB FOR AT251736

2шт.

37

19M8627

Screw

M6 X 20 SUB FOR TH0432911

3шт.

39

0433411

O-Ring

SUB FOR AT251738

2шт.

40

0476305

Spring

SUB FOR AT251758

1шт.

41

0433413

Cap Screw

SUB FOR AT251739

1шт.

42

0433414

Cover

SUB FOR AT251740

1шт.

61

4384555

Flow Control Hyd. Valve

SUB FOR AT251973

1шт.

61A

0976602

O-Ring

SUB FOR TH103574 OR AT264354 OR 4S00734

1шт.

61B

0433513

Back-Up Ring

SUB FOR AT251748

1шт.

61C

0637402

O-Ring

SUB FOR AT251797

1шт.

68

0657201

Flow Control Hyd. Valve

SUB FOR AT251869

1шт.

68A

0976602

O-Ring

SUB FOR TH103574 OR AT264354 OR 4S00734

1шт.

69

Valve

1шт.

70

Spring

1шт.

71

Seal

1шт.

72

Seal

1шт.

73

Bushing

1шт.

74

Seal

2шт.

75

Washer

1шт.

76

Piston

1шт.

77

Piston

1шт.

78

Washer

1шт.

79

Washer

1шт.

80

Spring

1шт.

82

Seal

1шт.

83

Plug

1шт.

84

Bolt

6шт.

85

Housing

1шт.

86

Plug

1шт.

87

Seal

1шт.

88

Seal

1шт.

89

4448505

Valve Kit

ANTI-DRIFT SUB FOR TH4448505

1шт.

90

0734202

Hyd Actuated Control Valve

BOOM SUB FOR AT251935

1шт.

96

Hyd Actuated Control Valve

4427490 NO LONGER AVAILABLE, CONTAINS AL L ITEMS ON THIS PAGE - ADDITIONAL COMPONEN TS LISTED ON PREVIOUS AND FOLLOWING PAGES

1шт.

Hyd Actuated Control Valve

4447586 NO LONGER AVAILABLE, CONTAINS AL L ITEMS ON THIS PAGE - ADDITIONAL COMPONEN TS LISTED ON PREVIOUS AND FOLLOWING PAGES

1шт.
