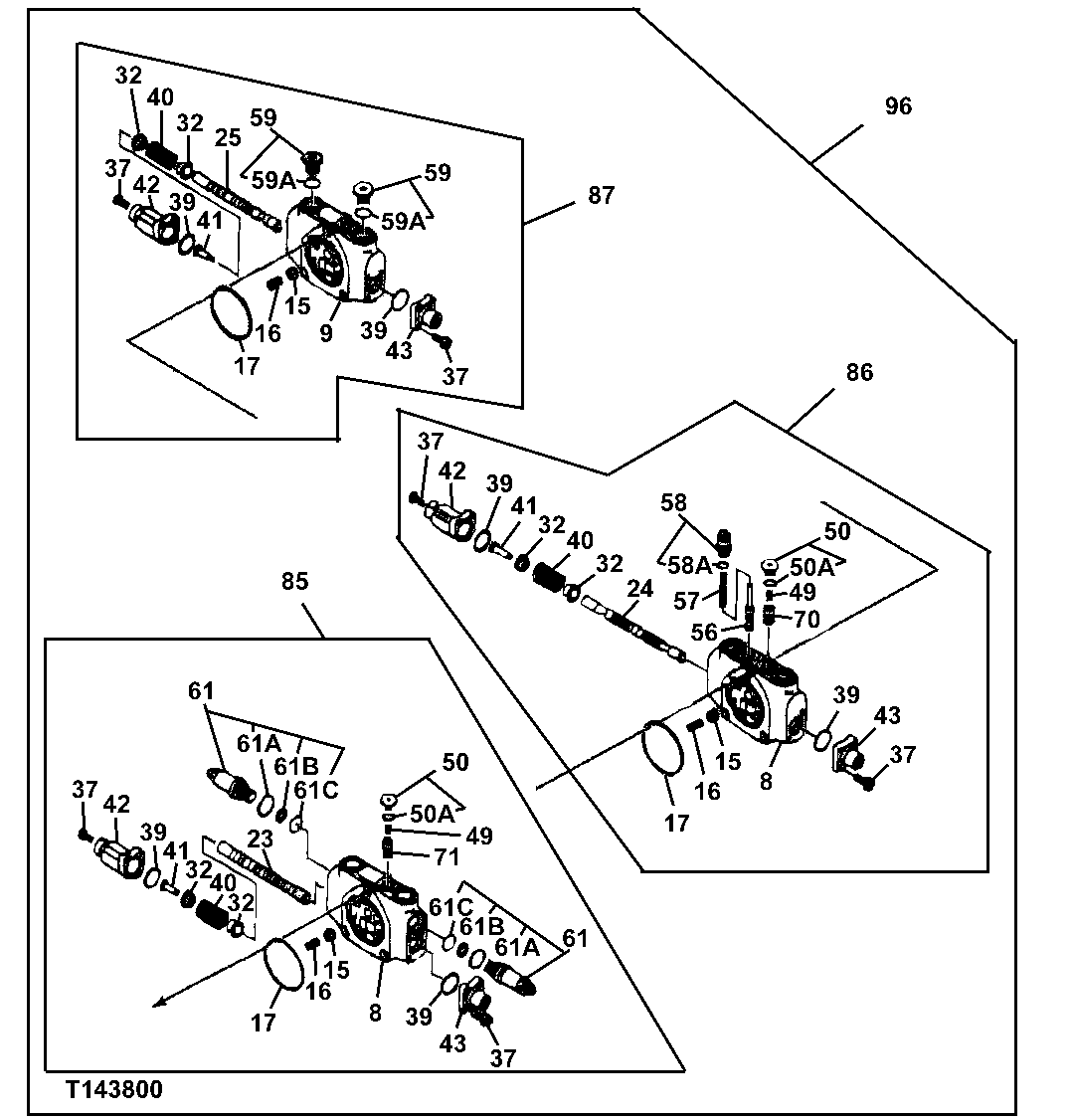

Запчасти John Deere 0ZTS 175 - BOOM, LEFT PROPEL, AND ARM CONTROL VALVE 3360 HYDRAULIC SYSTEM

7

Housing

1шт.

8

Housing

1шт.

9

Housing

1шт.

15

0433501

Check Valve

SUB FOR AT251744

3шт.

16

0433502

Spring

SUB FOR AT251745

3шт.

17

0433401

O-Ring

SUB FOR AT251734

3шт.

23

Spool

1шт.

24

Spool

1шт.

25

Spool

1шт.

32

0433407

Guide

SUB FOR AT251736

6шт.

37

19M8627

Screw

M6 X 20

30шт.

39

0433411

O-Ring

SUB FOR AT251738

6шт.

40

0476305

Spring

SUB FOR AT251758

3шт.

41

0433413

Cap Screw

SUB FOR AT251739

3шт.

42

0433414

Cover

SUB FOR AT251740

3шт.

43

0433415

Cover

SUB FOR AT251741

2шт.

49

0433417

Spring

SUB FOR AT251742

2шт.

50

0664404

Fitting Plug

SUB FOR AT251904

2шт.

50A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

56

0433509

Spool

SUB FOR AT251746

1шт.

57

0433010

Spring

SUB FOR AT251732

1шт.

58

0433011

Fitting Plug

SUB FOR AT251733

1шт.

58A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

59

0637401

Fitting Plug

SUB FOR AT251796

2шт.

59A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

61

4384555

Flow Control Hyd. Valve

SUB FOR AT251793

2шт.

61A

0976602

O-Ring

SUB FOR TH103574 OR AT264354 OR 4S00734

1шт.

61B

0433513

Back-Up Ring

SUB FOR AT251748

1шт.

61C

0637402

O-Ring

SUB FOR AT251797

1шт.

70

0681501

Check Valve

SUB FOR AT251913

1шт.

71

0681502

Check Valve

SUB FOR AT251914

1шт.

85

Hyd Actuated Control Valve

ARM SUB FOR AT251929 Furnish Components

1шт.

86

0755101

Housing

LEFT PROPEL NOT AVAILABLE FOR SERVICE

1шт.

87

0734104

Hyd Actuated Control Valve

BOOM SUB FOR AT251931

1шт.

96

Hyd Actuated Control Valve

4427490 NO LONGER AVAILABLE, ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGE S

1шт.

Hyd Actuated Control Valve

4447586 NO LONGER AVAILABLE, ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGE S

1шт.
