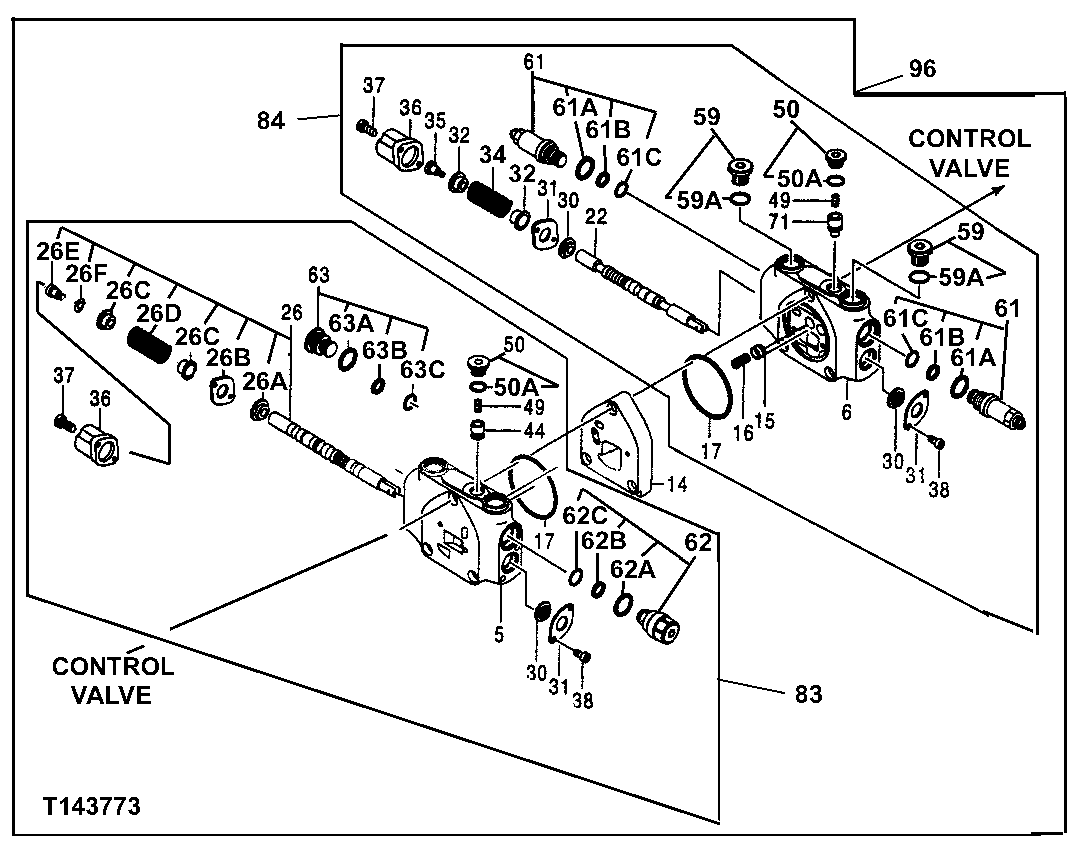

Запчасти John Deere 0ZTS 174 - AUXILIARY AND BOOM SWING CONTROL VALVE 3360 HYDRAULIC SYSTEM

5

Housing

1шт.

6

Housing

1шт.

14

0734001

End Plate

SUB FOR AT251921

1шт.

15

0433501

Check Valve

SUB FOR AT251744

1шт.

16

0433502

Spring

SUB FOR AT251745

1шт.

17

0433401

O-Ring

SUB FOR AT251734

2шт.

22

Spool

1шт.

26

Spool

1шт.

26A

4S01089

Seal

SUB FOR AT251735, 0433406

1шт.

26B

0209415

Plate

SUB FOR TH100730

1шт.

26C

0433407

Guide

SUB FOR AT251736

2шт.

26D

0664402

Spring

SUB FOR AT251903

1шт.

26E

0433409

Cap Screw

SUB FOR AT251737

1шт.

26F

0734002

Shim

SUB FOR AT251922

2шт.

30

4S01089

Seal

SUB FOR AT251735, 0433406

3шт.

31

0209415

Plate

SUB FOR TH100730

3шт.

32

0433407

Guide

SUB FOR AT251736

2шт.

34

0664402

Spring

SUB FOR AT251903

1шт.

35

0433409

Cap Screw

SUB FOR AT251737

1шт.

36

0637301

Cover

SUB FOR AT251795

2шт.

37

19M8627

Screw

M6 X 20 SUB FOR TH0432911

4шт.

19M8627

Screw

M6 X 20

12шт.

38

0209423

Bolt

SUB FOR TH100738

4шт.

44

0681401

Check Valve

SUB FOR AT251912

1шт.

49

0433417

Spring

SUB FOR AT251742

2шт.

50

0664404

Fitting Plug

SUB FOR AT251904

2шт.

50A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

59

0637401

Fitting Plug

SUB FOR AT251796

2шт.

59A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

61

4384555

Flow Control Hyd. Valve

AUXILIARY RELIEF VALVE

2шт.

4311306

Pressure Relief Valve

2шт.

61A

0976602

O-Ring

SUB FOR TH103574 OR AT264354 OR 4S00734

1шт.

61B

0433513

Back-Up Ring

SUB FOR AT251748

1шт.

61C

0637402

O-Ring

SUB FOR AT251797

1шт.

62

0476503

Flow Control Hyd. Valve

1шт.

62A

0976602

O-Ring

SUB FOR TH103574 OR AT264354 OR 4S00734

1шт.

62B

0433513

Back-Up Ring

SUB FOR AT251748

1шт.

62C

0637402

O-Ring

SUB FOR AT251797

1шт.

63

0433512

Fitting Plug

SUB FOR AT251747

1шт.

63A

0976602

O-Ring

SUB FOR TH103574 OR AT264354 OR 4S00734

1шт.

63B

0433513

Back-Up Ring

SUB FOR AT251748

1шт.

63C

0637402

O-Ring

SUB FOR AT251797

1шт.

71

0681502

Check Valve

SUB FOR AT251914

1шт.

83

0734005

Hyd Actuated Control Valve

BOOM SWING

1шт.

84

Hyd Actuated Control Valve

AUXILIARY 0734006 NLA

1шт.

0836801

Housing

1шт.

96

Hyd Actuated Control Valve

4427490 NO LONGER AVAILABLE, CONTAINS AL L ITEMS ON THIS PAGE - ADDITIONAL COMPONEN TS LISTED ON PREVIOUS AND FOLLOWING PAGES

1шт.

Hyd Actuated Control Valve

4447586 NO LONGER AVAILABLE, CONTAINS AL L ITEMS ON THIS PAGE - ADDITIONAL COMPONEN TS LISTED ON PREVIOUS AND FOLLOWING PAGES

1шт.
