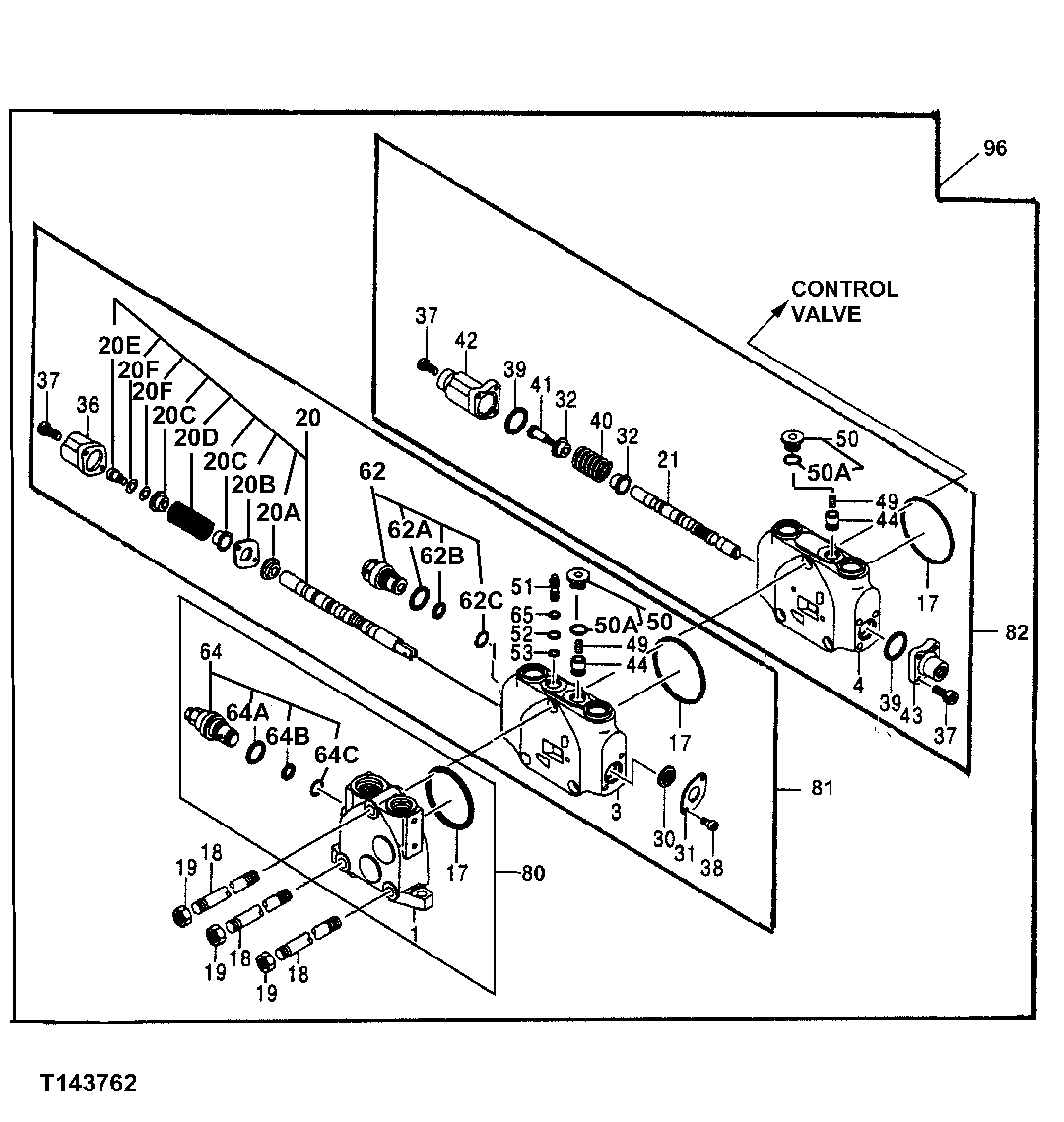

Запчасти John Deere 0ZTS 173 - Swing And Backfill Blade Control Valve, And Endcap 3360 HYDRAULIC SYSTEM

1

Plate

1шт.

3

Housing

1шт.

4

Housing

1шт.

17

0433401

O-Ring

SUB FOR AT251734

3шт.

18

0664401

Bolt

SUB FOR AT251902

3шт.

19

14M7275

Nut

M12 SUB FOR 0433403

3шт.

20

Spool

1шт.

20A

4S01089

Seal

SUB FOR AT251735, 0433406

1шт.

20B

0209415

Plate

SUB FOR TH100730

1шт.

20C

0433407

Guide

SUB FOR AT251736

2шт.

20D

0664402

Spring

SUB FOR AT251903

1шт.

20E

0433409

Cap Screw

SUB FOR AT251737

1шт.

20F

0734002

Shim

SUB FOR AT251922

2шт.

21

Spool

1шт.

30

4S01089

Seal

SUB FOR AT251735, 0433406

1шт.

31

0209415

Plate

SUB FOR TH100730

1шт.

32

0433407

Guide

SUB FOR AT251736

2шт.

36

0637301

Cover

SUB FOR AT251795

1шт.

37

19M8627

Screw

M6 X 20 SUB FOR TH0432911

8шт.

38

0209423

Bolt

SUB FOR TH100738

2шт.

39

0433411

O-Ring

SUB FOR AT251738

2шт.

40

0476305

Spring

SUB FOR AT251758

1шт.

41

0433413

Cap Screw

SUB FOR AT251739

1шт.

42

0433414

Cover

SUB FOR AT251740

1шт.

43

0433415

Cover

SUB FOR AT251741

1шт.

44

0681401

Check Valve

SUB FOR AT251912

2шт.

49

0433417

Spring

SUB FOR AT251742

2шт.

50

0664404

Fitting Plug

SUB FOR AT251904

2шт.

50A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

51

Orifice

0432919 NLA, SUB FOR AT251730

1шт.

52

CH11568

Packing

1шт.

53

4506405

O-Ring

4.800 X 1.900 mm (0.189" X 0.075") SUB FOR TH102655

1шт.

62

0476503

Flow Control Hyd. Valve

SUB FOR AT251759

1шт.

62A

0976602

O-Ring

SUB FOR TH103574 OR AT264354 OR 4S00734

1шт.

62B

0433513

Back-Up Ring

SUB FOR AT251748

1шт.

62C

0637402

O-Ring

SUB FOR AT251797

1шт.

64

Pressure Relief Valve

0657001 NLA, SUB FOR AT251868

1шт.

64A

0976602

O-Ring

SUB FOR TH103574 OR AT264354 OR 4S00734

1шт.

64B

0433513

Back-Up Ring

SUB FOR AT251748

1шт.

64C

0637402

O-Ring

SUB FOR AT251797

1шт.

65

4046168

Back-Up Ring

SUB FOR AT251731, 0432922

1шт.

80

0734007

End Plate

ENDCAP SUB FOR AT251927

1шт.

81

0734003

Hyd Actuated Control Valve

BACKFILL BLADE SUB FOR AT251923

1шт.

82

0734004

Hyd Actuated Control Valve

SWING SUB FOR AT251924

1шт.

96

Hyd Actuated Control Valve

ADDITIONAL COMPONENTS LISTED ON FOLLOW ING PAGES 4427490 NO LONGER AVAILABLE

1шт.

Hyd Actuated Control Valve

4447586 NO LONGER AVAILABLE, ADDITION AL COMPONENTS LISTED ON FOLLOWING PAGES

1шт.
