Запчасти John Deere 0ZTS 171 - AUXILIARY PIPING (UPPERSTRUCTURE) 3360 HYDRAULIC SYSTEM

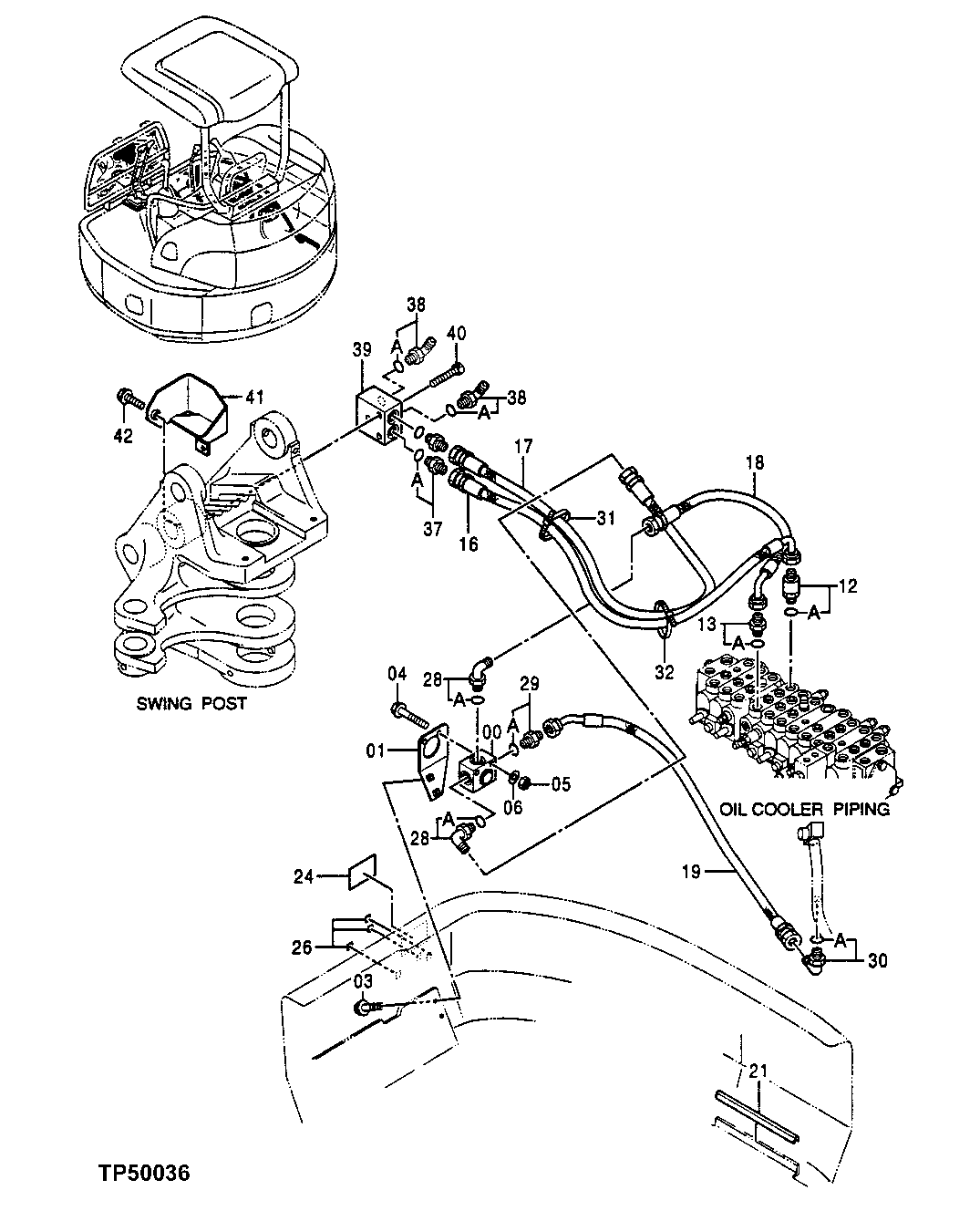

Схема запчастей John Deere 0ZTS - 171 - AUXILIARY PIPING (UPPERSTRUCTURE) 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

0

4340948

Selective Control Valve

SUB FOR AT251240

1шт.

1

9749203

Bracket

SUB FOR AT251640

1шт.

3

19M7513

Cap Screw

M8 X 30

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

Washer

12M7065 NLA

2шт.

4

19M8402

Cap Screw

M8 X 65

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

Washer

12M7065 NLA

2шт.

5

14M7273

Nut

M8

2шт.

6

12M7036

Lock Plate

2шт.

12

4408125

Adapter Fitting

SUB FOR AT251455

1шт.

12A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

13

4042032

Adapter Fitting

SUB FOR TH101294

1шт.

13A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

16

4426455

Hydraulic Hose

SUB FOR AT251711

1шт.

17

4426456

Hydraulic Hose

SUB FOR AT251712

1шт.

18

4426457

Hydraulic Hose

SUB FOR AT251713

1шт.

19

4426458

Hydraulic Hose

SUB FOR AT251714

1шт.

21

4403242

Isolator

SUB FOR AT251439

1шт.

24

4403558

Label

SUB FOR AT258381

1шт.

26

Label

AT255936 NOT AVAILABLE FOR SERVICE

1шт.

28

4037760

Elbow Fitting

SUB FOR AT251156

2шт.

28A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

29

4368201

Adapter Fitting

SUB FOR AT251298

1шт.

29A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

30

4169598

Elbow Fitting

SUB FOR AT251168

1шт.

30A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

31

H77698

Tie Band

1шт.

32

H77698

Tie Band

1шт.

37

4042032

Adapter Fitting

SUB FOR TH101294

2шт.

37A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

2шт.

38

4037760

Elbow Fitting

SUB FOR AT251156

2шт.

38A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

39

3078513

Manifold

SUB FOR AT251136

1шт.

40

19M8335

Screw

M8 X 55

3шт.

41

8068247

Cover

SUB FOR AT251566

1шт.

42

19M7662

Cap Screw

M10 X 30

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

Выбрано товаров: 39
