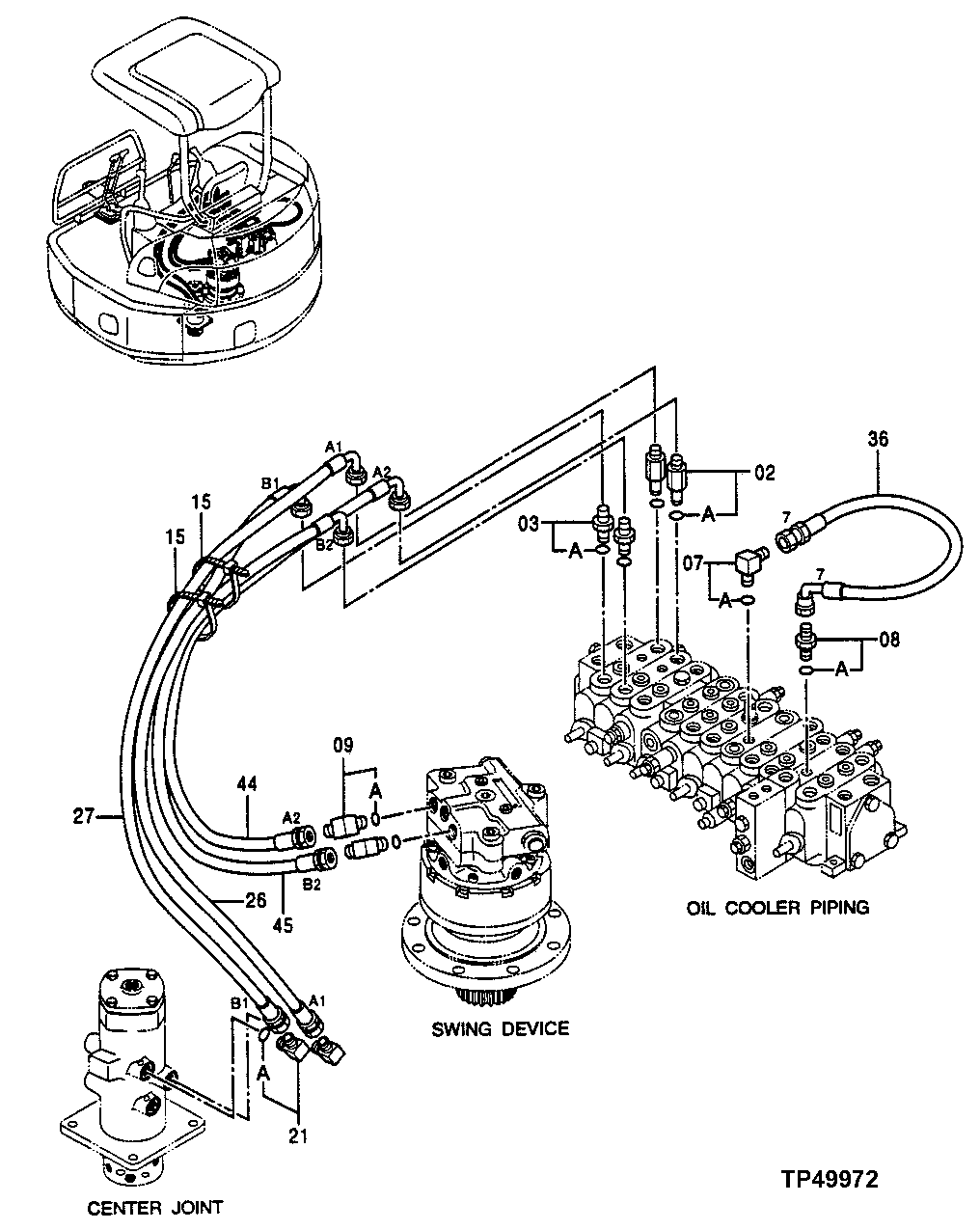

Запчасти John Deere 0ZTS 166 - MAIN PIPINGS 3360 HYDRAULIC SYSTEM

2

4368207

Adapter Fitting

(SUB FOR AT251301)

2шт.

2A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

3

4368204

Adapter Fitting

(SUB FOR AT251299)

2шт.

3A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

7

4037761

Hose Fitting

(SUB FOR TH103894)

1шт.

7A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

8

4368210

Adapter Fitting

(SUB FOR AT251302)

1шт.

8A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

9

4037761

Hose Fitting

(SUB FOR TH103894)

2шт.

9A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

15

H77698

Tie Band

2шт.

21

4037761

Hose Fitting

(SUB FOR TH103894)

2шт.

21A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

26

4426442

Hydraulic Hose

(A1) (SUB FOR AT251676)

1шт.

27

4426443

Hydraulic Hose

(B1) (SUB FOR AT251677)

1шт.

36

4426448

Hydraulic Hose

(SUB FOR AT251678)

1шт.

44

4426465

Hydraulic Hose

(A2) (SUB FOR AT251679)

1шт.

45

4426466

Hydraulic Hose

(B2) (SUB FOR AT251680)

1шт.
