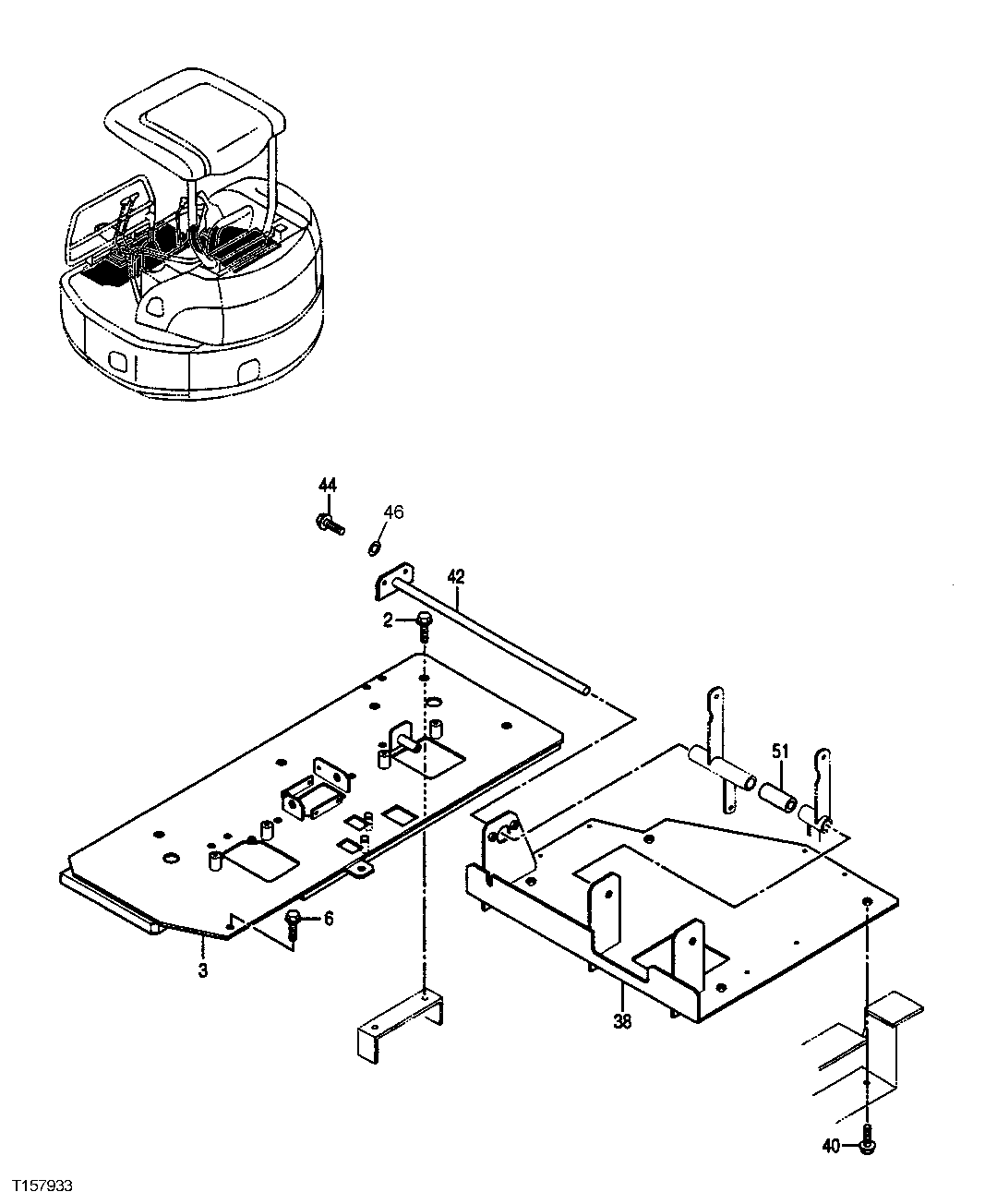

Запчасти John Deere 0ZTS 145 - LEVER LINK SUPPORT 3315 Controls Linkage

2

19M7403

Cap Screw

M12 X 35

3шт.

24M7044

Washer

13 X 20 X 2 mm

3шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

3шт.

3

7037417

Platform

SUB FOR AT251560

1шт.

6

19M7881

Screw

M8 X 20

1шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

Washer

12M7065 NLA

1шт.

38

7034315

Platform

SUB FOR AT251544

1шт.

40

19M7073

Cap Screw

M12 X 50

4шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

4шт.

42

9744822

Rod

SUB FOR AT251627

1шт.

44

19M7407

Cap Screw

M8 X 25

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

Washer

12M7065 NLA

2шт.

46

J222008

Washer

SUB FOR J254008

2шт.

51

4355276

Spacer

SUB FOR AT251265

1шт.
