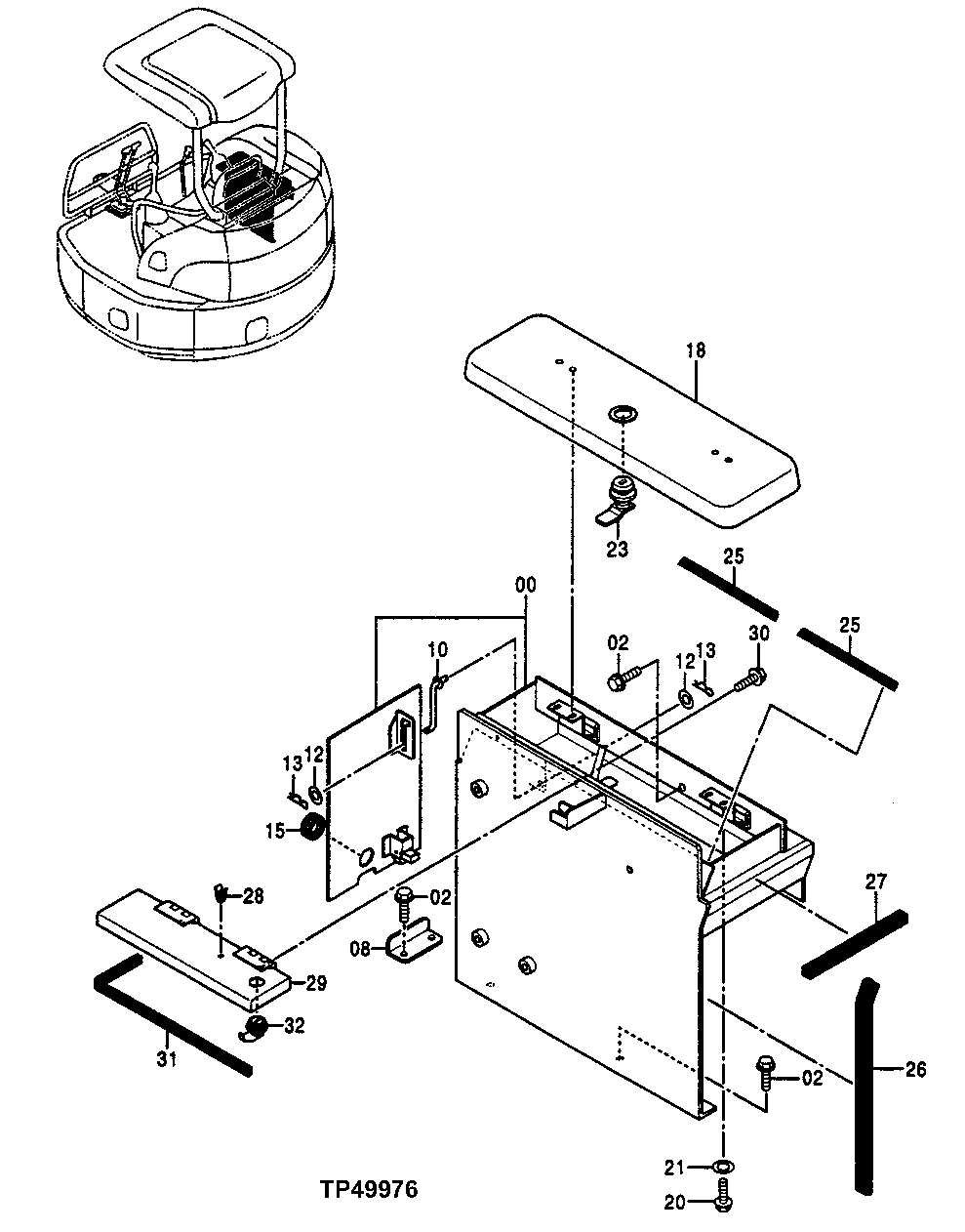

Запчасти John Deere 0ZTS 140 - Console 3315 Controls Linkage

0

6018709

Console

SUB FOR AT251540

1шт.

2

19M7881

Screw

M8 X 20

7шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

7шт.

Washer

12M7065 NLA

7шт.

8

4416055

Bracket

SUB FOR AT251511

1шт.

10

9743982

Rod

SUB FOR AT251625

1шт.

12

24M7139

Washer

6.400 X 18 X 1.600 mm

2шт.

13

M800051

Pin

SUB FOR CH10542

2шт.

15

94-2809

Grommet

SUB FOR TH106275

1шт.

18

4348006

Cover

SUB FOR AT251244

1шт.

20

19M7300

Cap Screw

M6 X 10

4шт.

12M7006

Lock Washer

6 mm

4шт.

21

12M7054

Washer

4шт.

23

4363359

Lock

SUB FOR AT251287

1шт.

25

4348280

Isolator

SUB FOR AT251246

2шт.

26

4409683

Isolator

SUB FOR AT251492

1шт.

27

4411283

Isolator

SUB FOR AT251498

1шт.

28

4399244

Clip

SUB FOR AT251411

1шт.

29

8077999

Cover

SUB FOR AT251610

1шт.

30

19M7300

Cap Screw

M6 X 10

2шт.

12M7006

Lock Washer

6 mm

2шт.

31

4427756

Isolator

SUB FOR AT251533

1шт.

32

4423918

Lock

SUB FOR AT251525

1шт.
