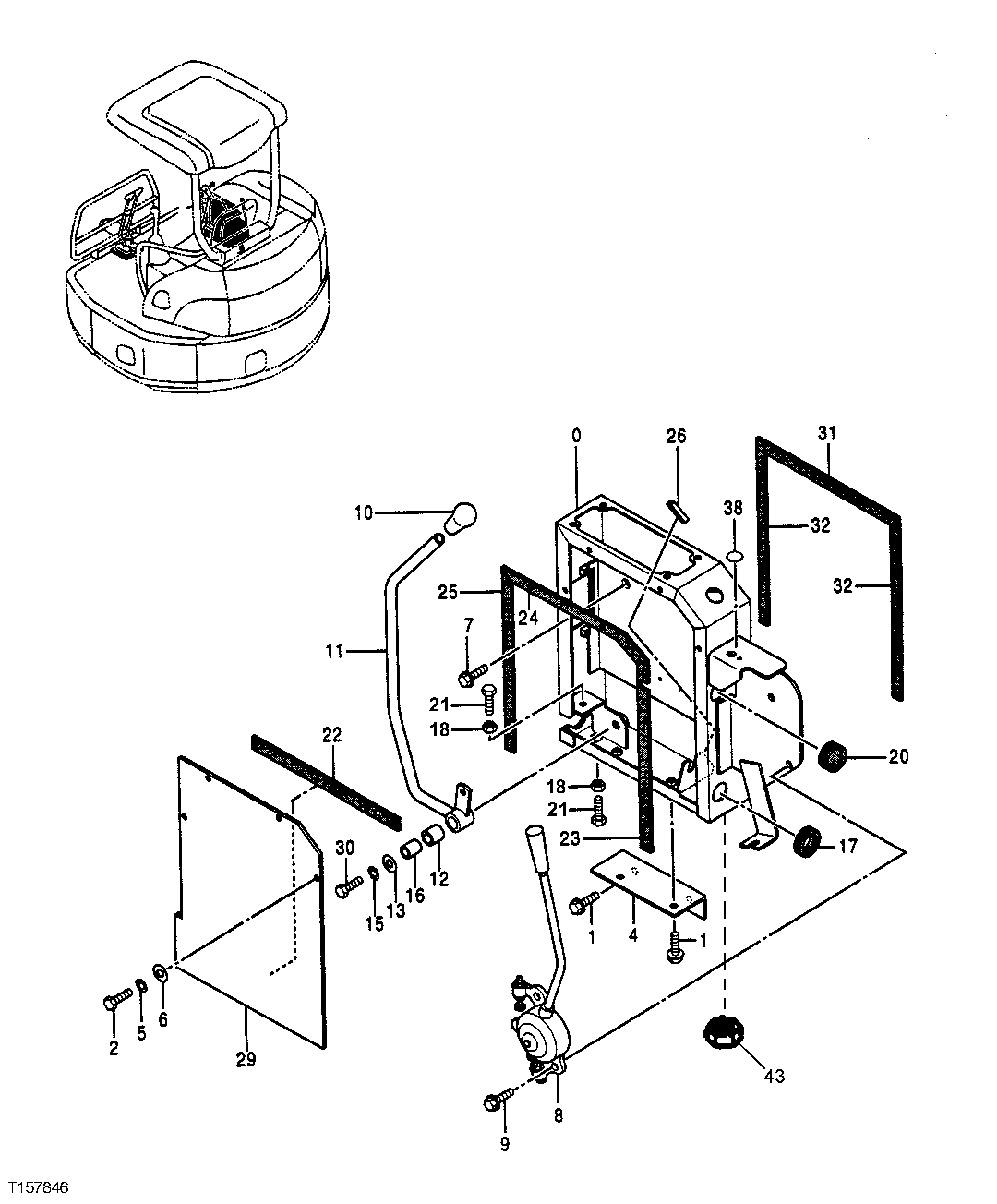

Запчасти John Deere 0ZTS 139 - CONTROL BOX 3315 Controls Linkage

0

3078513

Manifold

SUB FOR AT251136

1шт.

1

19M1932

Bolt

4шт.

Washer

12M7065 NLA

4шт.

2

19M8425

Cap Screw

M6 X 16

5шт.

4

4409056

Bracket

SUB FOR AT251459

1шт.

5

12M7006

Lock Washer

6 mm

5шт.

6

12M7054

Lock Washer

19 mm

5шт.

7

19M7881

Screw

M8 X 20

1шт.

Washer

12M7065 NLA

1шт.

8

4325764

Control Lever

SUB FOR AT251230

1шт.

9

19M7407

Cap Screw

M8 X 25

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

Washer

12M7065 NLA

2шт.

10

4399121

Grip

SUB FOR AT251404

1шт.

11

8074026

Control Lever

SUB FOR AT251588

1шт.

12

4280297

Bushing

SUB FOR AT251195

1шт.

13

24H1748

Washer

1/2" X 1-1/4" X 0.105"

1шт.

15

12M7058

Lock Washer

12 mm SUB FOR 12M7067

1шт.

16

P65873

Bushing

1шт.

17

4235210

Bushing

SUB FOR AT251172

1шт.

18

14M7272

Nut

M6

2шт.

20

4188729

Bushing

SUB FOR AT251169

1шт.

21

19M7933

Cap Screw

M6 X 25

2шт.

22

4417952

Isolator

SUB FOR AT251460 OR 4409058

1шт.

23

4409059

Isolator

SUB FOR AT251461

1шт.

24

4409651

Isolator

SUB FOR AT251467

1шт.

25

4409061

Isolator

SUB FOR AT251463

1шт.

26

4399148

Isolator

SUB FOR AT251405

1шт.

29

8077919

Cover

SUB FOR AT251609

1шт.

30

19M7073

Cap Screw

M12 X 50

1шт.

31

4417952

Isolator

SUB FOR AT251513

1шт.

32

4417953

Isolator

SUB FOR AT251514

2шт.

38

4403844

Label

SUB FOR P66121

1шт.

43

4472191

Bushing

1шт.
