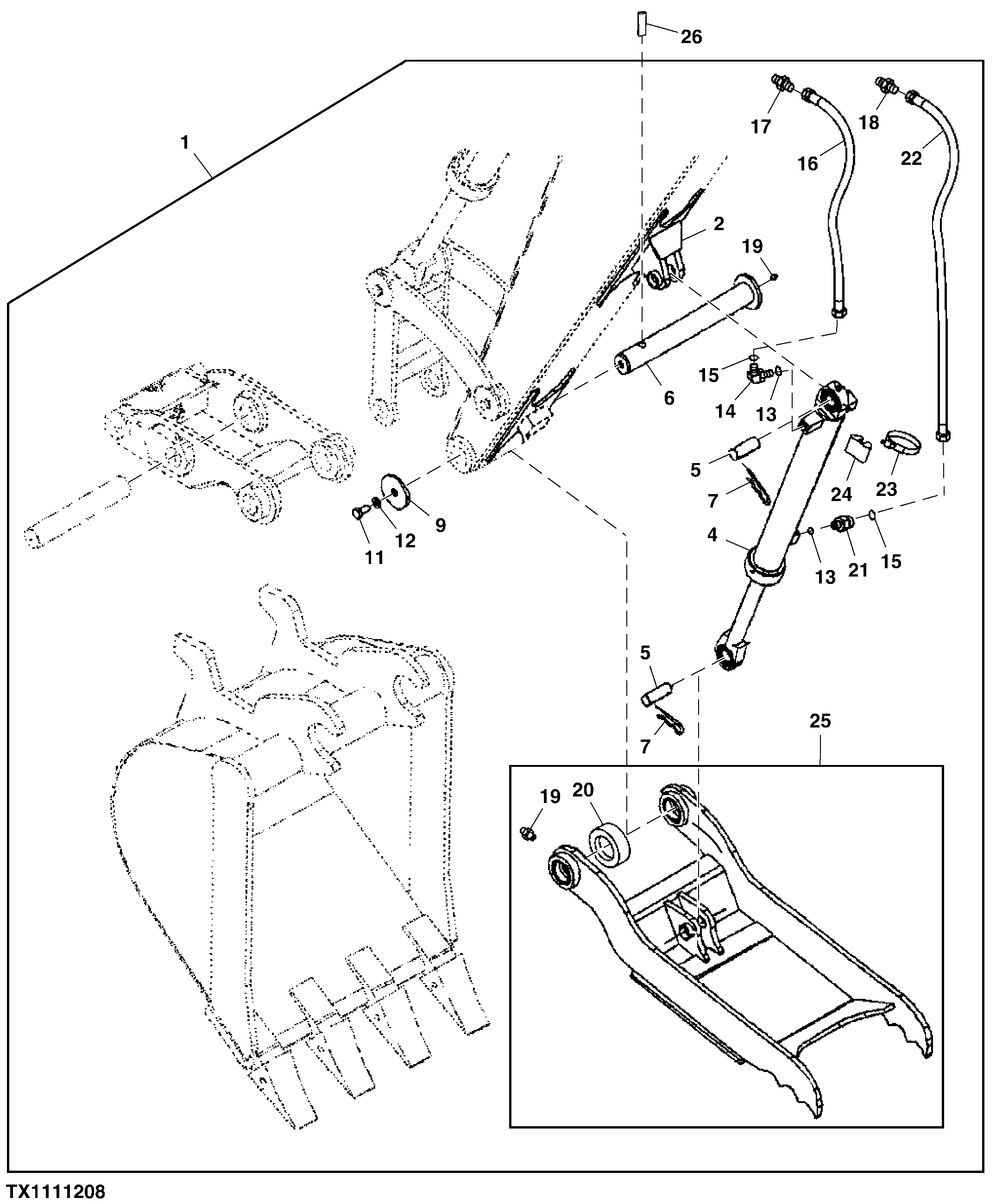

Запчасти John Deere 0ZTS 124 - Hydraulic Bucket Clamp (Replacement) 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

1

AT318257G

Field Installation Kit

WHOLE GOODS

1шт.

2

AT317647

Bracket

1шт.

4

AHC18100

Hydraulic Cylinder

Components Listed On Another Page

1шт.

5

L101620

Pin Fastener

2шт.

6

AT317653

Pin Fastener

Also Contains Pin and Ret ainer Pin, Not Illustrated

1шт.

7

11M7073

Cotter Pin

8 X 63 mm (SUB FOR 11M 7056, THIS APPLICATION)

2шт.

9

L77320

Washer

1шт.

11

19H2472

Cap Screw

1/2" X 1"

1шт.

12

12H301

Lock Washer

1/2"

1шт.

13

R26448

O-Ring

(SUB FOR R28782, THIS APPLICATION)

2шт.

14

38H1004

Elbow Fitting

(SUB FOR 38H1435, THIS APPLICATION)

1шт.

15

T77613

O-Ring

2шт.

16

AT280275

Hydraulic Hose

1шт.

17

M131863

Hydr. Quick Coupler Plug

1шт.

18

M131862

Hyd. Quick-Connect Coupler

1шт.

19

T162396

Lubrication Fitting

2шт.

20

T213163

Bushing

2шт.

21

38H1160

Adapter Fitting

(SUB FOR 38H1309, THIS APPLICATION)

1шт.

22

AT322165

Hydraulic Hose

1шт.

23

AR21999

Hose Clamp

1шт.

24

T105774

Guide

1шт.

25

AT316570

Clamp

1шт.

26

4624350

Pin Fastener

1шт.
