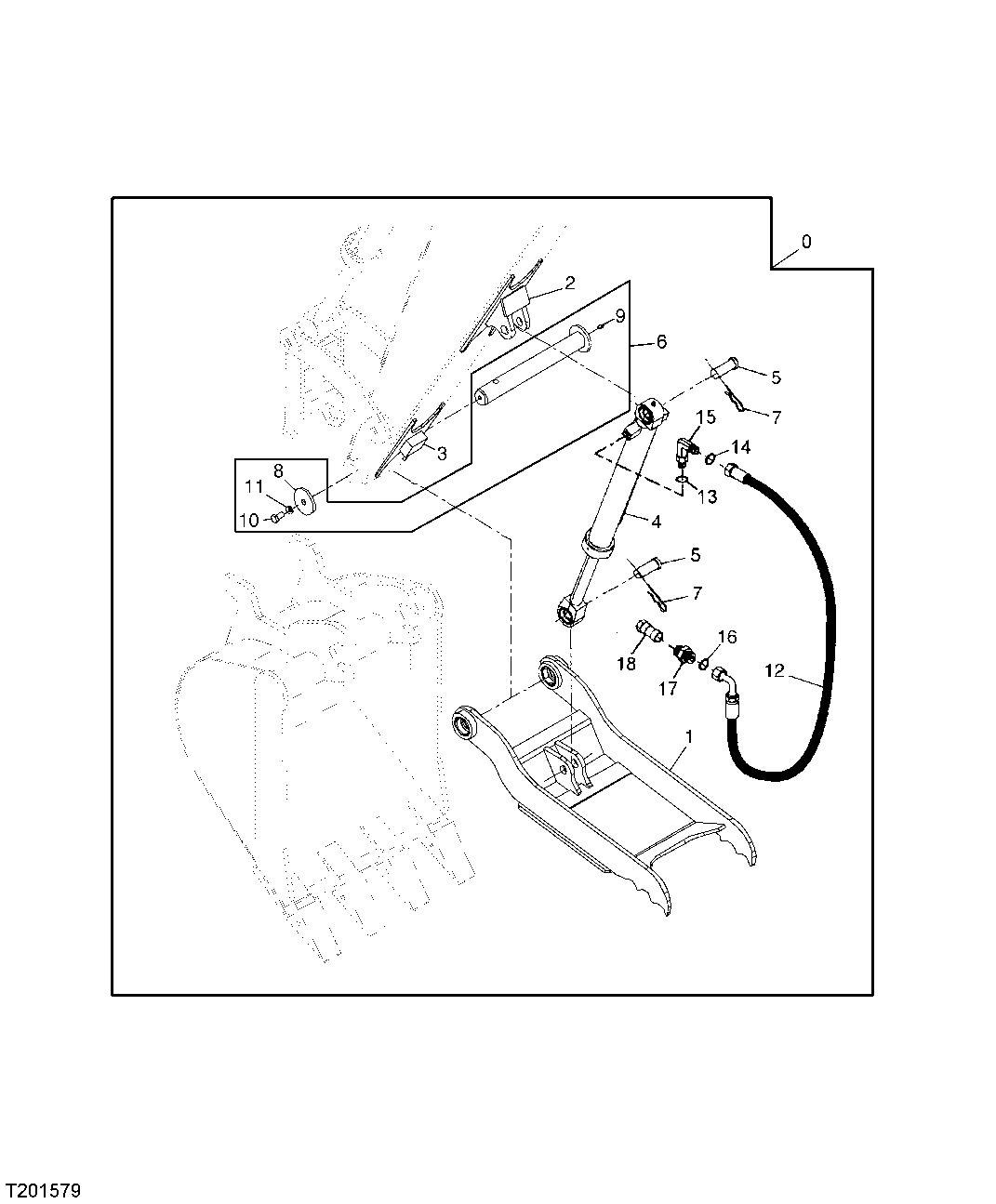

Запчасти John Deere 0ZTS 121 - Hydraulic Bucket Clamp 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

0

Clamp

WHOLEGOODS (HYDRAULIC BUCKET) (SUB AT2 80198 ( AT189239 NO LONGER AVAILABLE))

1шт.

1

AT316570

Clamp

(SUB FOR AT260401 OR AT309147 )(COMPONENTS ON ANOTHER PAGE)

1шт.

2

AT260402

Clevis

1шт.

3

AT260403

Stop

1шт.

4

AHC18100

Hydraulic Cylinder

(COMPONENTS ON ANOTHER PAGE)

1шт.

5

T185222

Pin

(SUB FOR AT260405)

2шт.

6

AT260406

Pin Fastener

1шт.

7

AT260407

Spring Locking Pin

2шт.

8

L77320

Washer

1шт.

9

AT260410

Lubrication Fitting

1шт.

10

19H2472

Cap Screw

1/2" X 1"

1шт.

11

12H301

Lock Washer

1/2"

1шт.

12

AT189441

Hydraulic Hose

2шт.

13

R28782

O-Ring

2шт.

14

T77613

O-Ring

2шт.

15

38H1435

Elbow Fitting

2шт.

16

T77857

O-Ring

2шт.

17

X8-8FLO-S

Adapter Fitting

2шт.

18

M131862

Hyd. Quick-Connect Coupler

FEMALE

1шт.

M131863

Hydr. Quick Coupler Plug

MALE

1шт.
