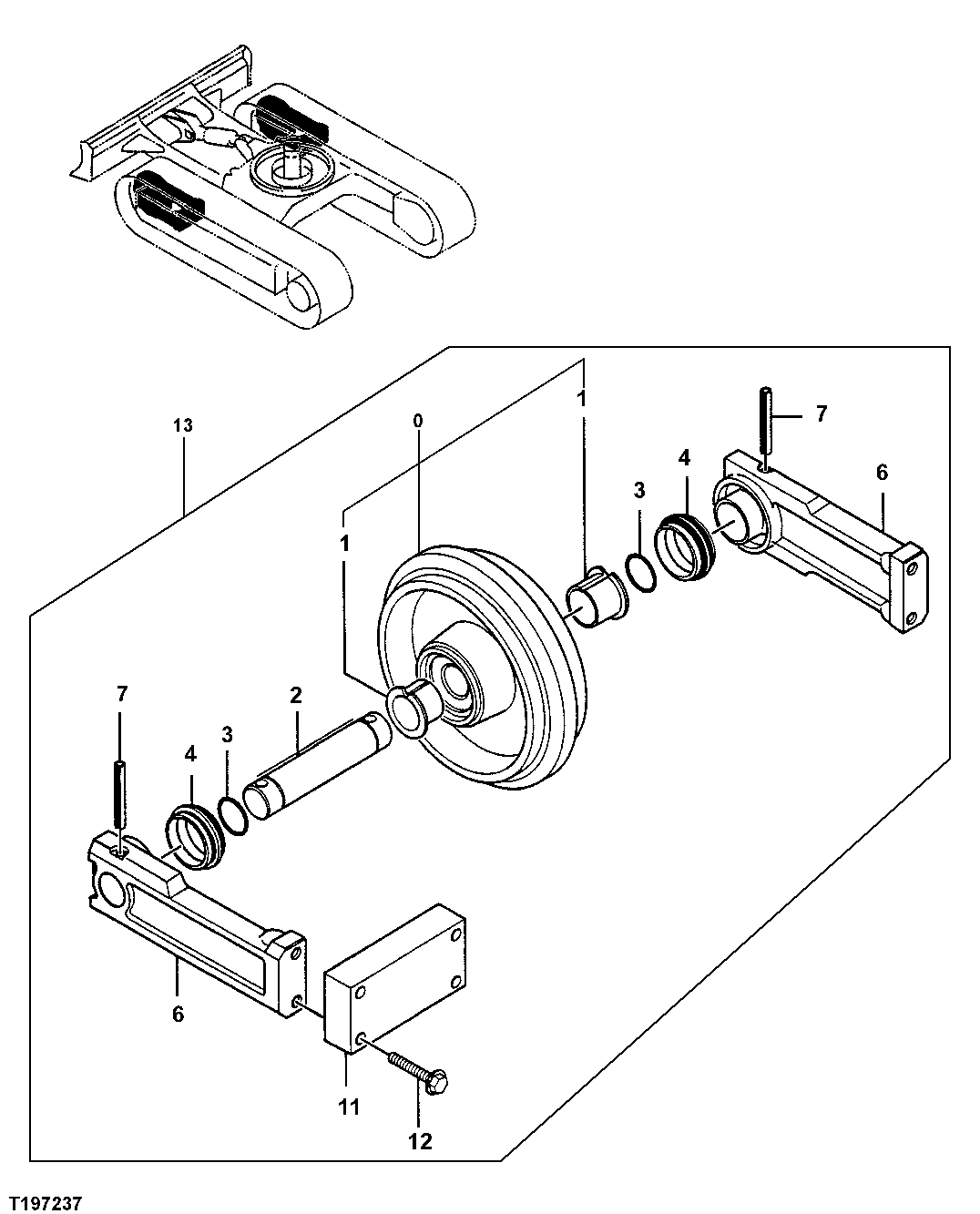

Запчасти John Deere 0ZTS 2 - Front Idler 0130 Track Systems

0

Idler Sprocket

( 9164785 NO LONGER AVAI LABLE) (SUB FOR AT251615)

1шт.

1

3058188

Bushing

(SUB FOR AT251124)

2шт.

2

3058189

Shaft

(SUB FOR AT251125)

1шт.

3

AT264324

O-Ring

(SUB FOR TH100044)

2шт.

4

4177260

Seal

(SUB FOR TH110487)

2шт.

6

1017138

Yoke

(SUB FOR AT251113)

2шт.

7

4144030

Spring Pin

(SUB FOR AT251165)

2шт.

11

4323080

Plate

(SUB FOR AT251225)

1шт.

12

19M8540

Cap Screw

M12 X 60

4шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

13

9163767

Track Idler

1шт.
