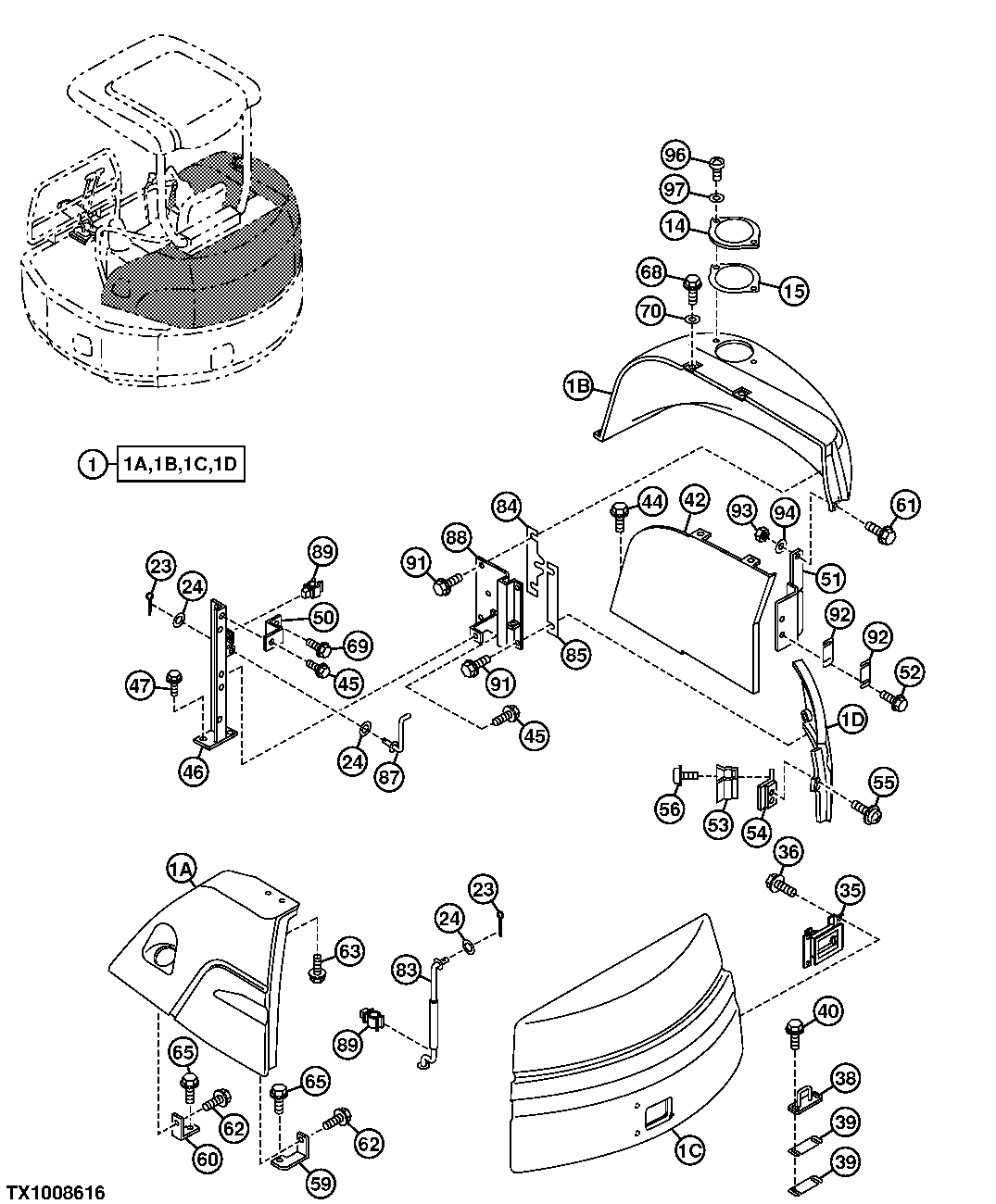

Запчасти John Deere 0ZTS 94 - Cover 1910 Hood Or Engine Enclosure

1

Cover

NOT AVAILABLE FOR SERVICE

1шт.

1A

4485792J

Cover

SUB FOR 4434690, 4485792 OR AT258432

1шт.

1B

4607069

Cover

ALSO ORDER 4318753 SUB FOR 460 7109; SUB FOR AT258433, 4434691

1шт.

4318753

Grommet

NOT ILLUSTRATED

1шт.

1C

4485798

Cover

SUB FOR 4434692; SUB FOR AT258434

1шт.

1D

4485803J

Cover

SUB FOR 4434693, 4485803 OR AT258435

1шт.

14

3091308J

Cover

SUB FOR 3091308

1шт.

15

4447800

Isolator

SUB FOR TH4447800

1шт.

23

11M7058

Cotter Pin

2 X 25 mm SUB FOR 11M7009

2шт.

24

12M7036

Lock Plate

3шт.

35

4393983

Latch

SUB FOR AT251363

1шт.

36

19M8425

Cap Screw

M6 X 16

4шт.

24M7267

Washer

6.400 X 11 X 1.600 mm

4шт.

12M7006

Lock Washer

6 mm

4шт.

38

8059499

Catch

SUB FOR AT251562

1шт.

39

4347798

Shim

SUB FOR AT251243

2шт.

40

19M7662

Cap Screw

M10 X 30

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

42

7035761

Cover

SUB FOR AT251555

1шт.

44

19M7881

Screw

M8 X 20

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

Washer

12M7065 NLA

4шт.

45

19M7407

Cap Screw

M8 X 25

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

Washer

12M7065 NLA

2шт.

46

8069525

Bracket

SUB FOR AT251568

1шт.

47

19M7402

Cap Screw

M10 X 25

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

50

9751395

Bracket

SUB FOR AT251648

1шт.
