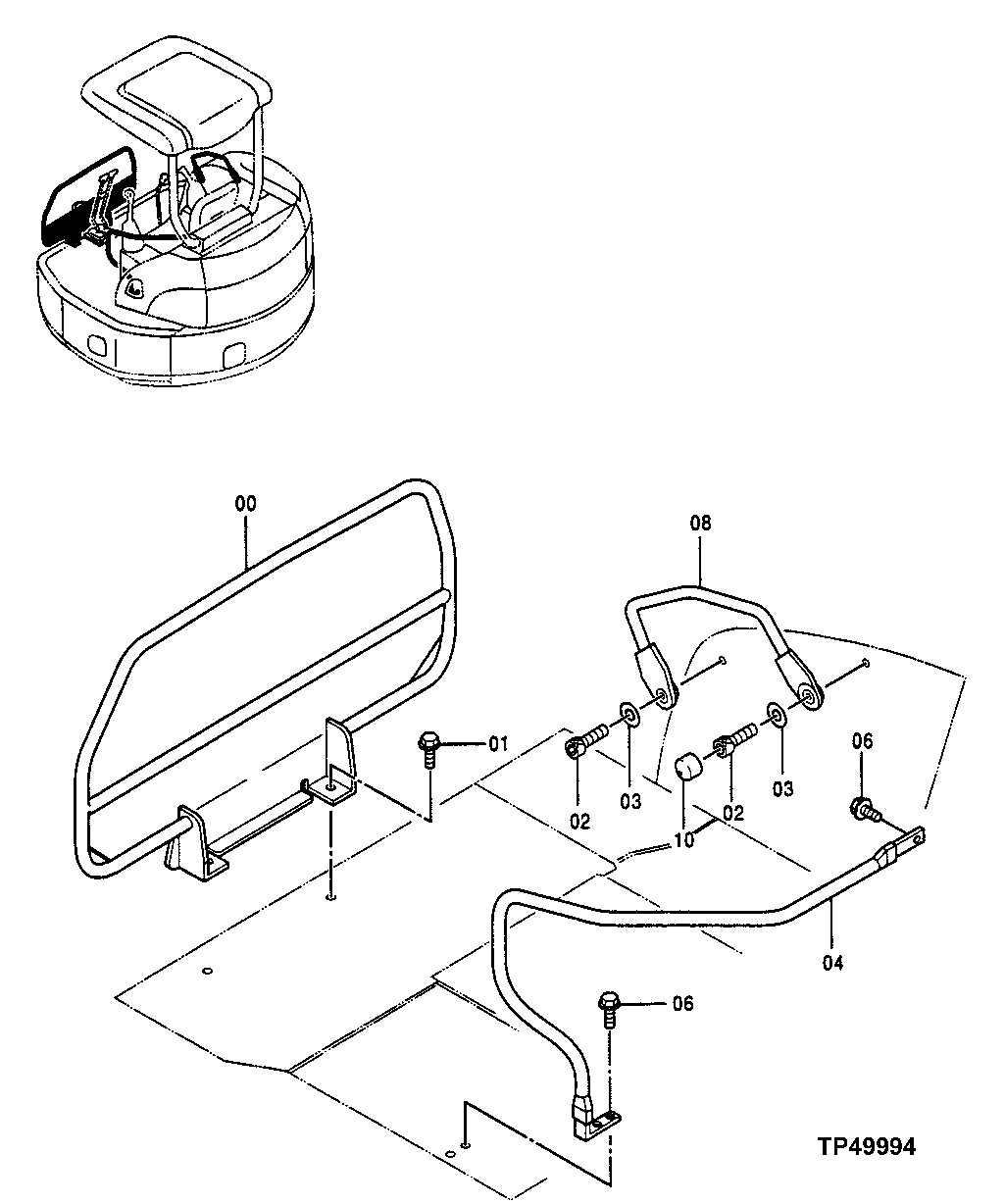

Запчасти John Deere 0ZTS 93 - Guards And Stays (Canopy Units) 1910 Hood Or Engine Enclosure

0

AT251541

Guard

1шт.

1

19M7493

Cap Screw

M12 X 40

2шт.

24M7044

Washer

13 X 20 X 2 mm

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

2

19M8735

Screw

M8 X 30

2шт.

3

12M7036

Lock Plate

2шт.

4

7035593

Handrail

(SUB FOR AT251554)

1шт.

6

19M7662

Cap Screw

M10 X 30

3шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

3шт.

12M7066

Lock Washer

10 mm

3шт.

8

7036131

Handrail

(SUB FOR AT251556)

1шт.

10

4419711

Cap

(SUB FOR AT251521)

1шт.
