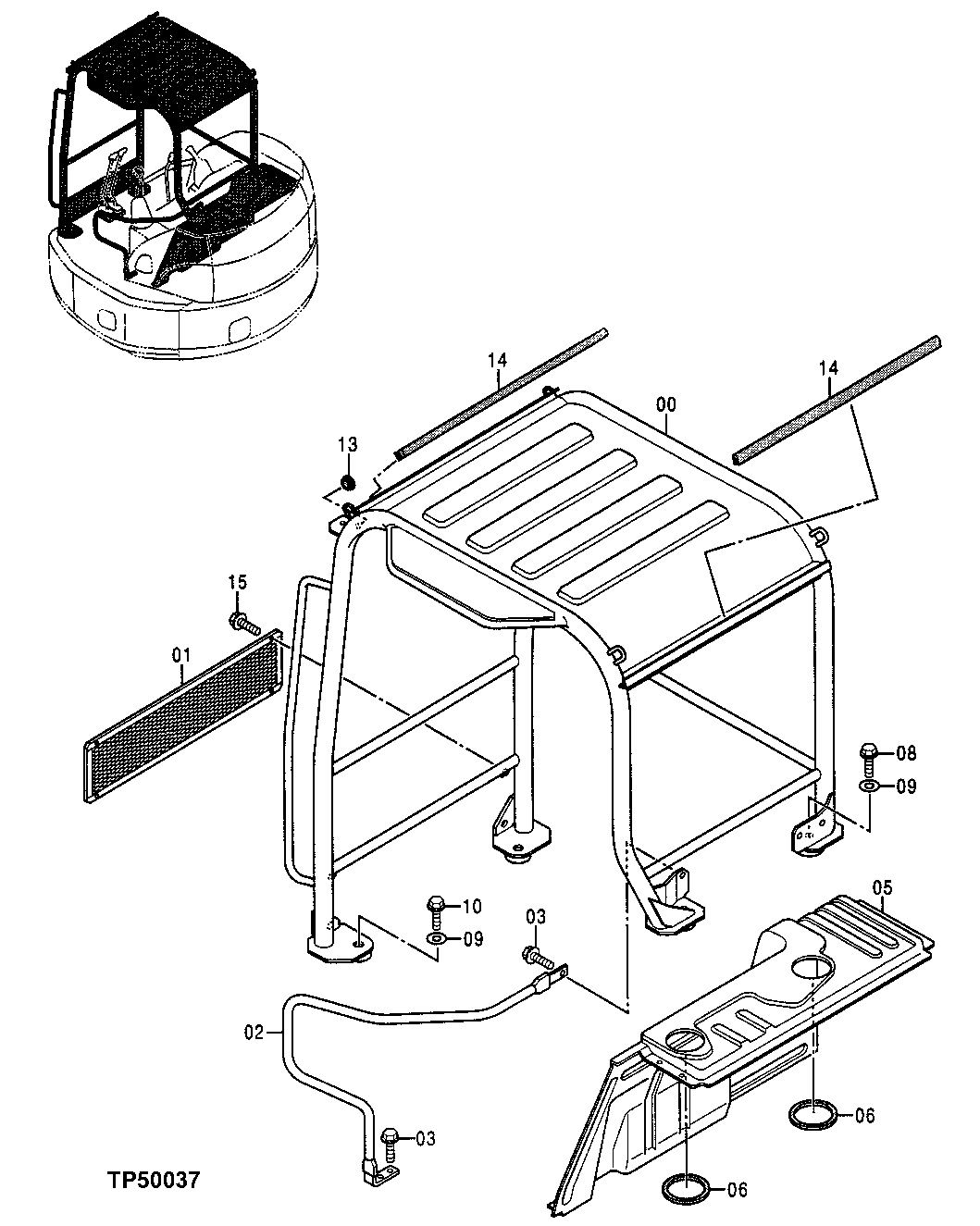

Запчасти John Deere 0ZTS 86 - TOPS Frame, TOPS Mounting Parts and TOPS Rear Cover 1810 Operator Enclosure

0

6018641

Canopy

SUB FOR AT258436

1шт.

1

3089894

Guard

SUB FOR TH3089894

1шт.

2

7037356

Handrail

SUB FOR AT258437

1шт.

3

19M7662

Cap Screw

M10 X 30

3шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

3шт.

12M7066

Lock Washer

10 mm

3шт.

5

4446066

Cover

SUB FOR 4410295, AT258390

1шт.

6

4416050

Seal

SUB FOR AT258397

2шт.

8

19M8485

Bolt

M16 X 90 SUB FOR J901690

2шт.

9

24M7053

Washer

17 X 30 X 3 mm

4шт.

10

19M7719

Bolt

M16 X 70 SUB FOR J901670

2шт.

13

4207699

Bushing

SUB FOR AT121399

1шт.

14

4427072

Seal

SUB FOR AT258415

2шт.

15

19M7407

Cap Screw

M8 X 25

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

Washer

12M7065 NLA

4шт.
