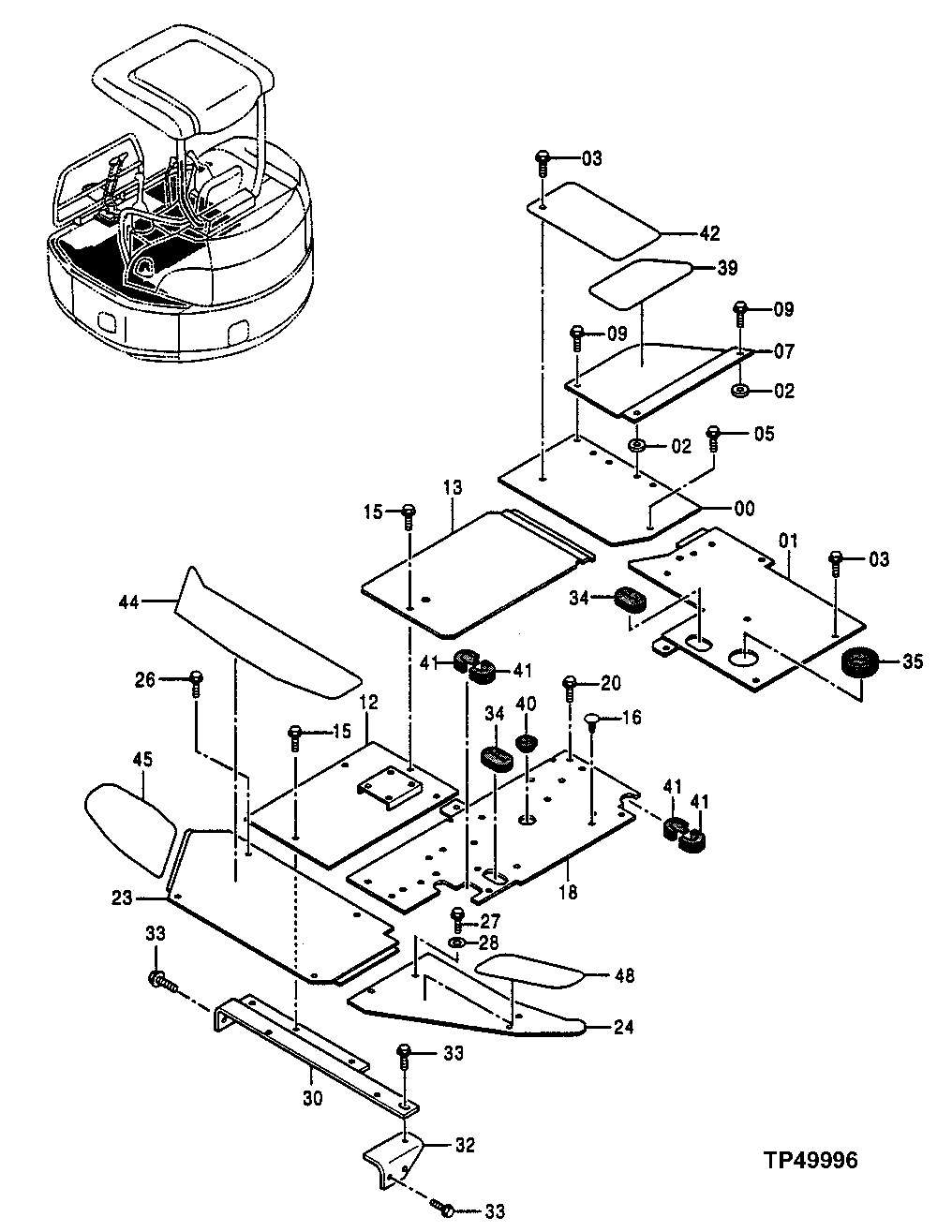

Запчасти John Deere 0ZTS 85 - FLOOR PARTS 1810 Operator Enclosure

0

8080934

Plate

SUB FOR AT251594

1шт.

1

7035592

Plate

SUB FOR AT251553

1шт.

2

4401714

Spacer

SUB FOR AT251430

2шт.

3

19M7402

Cap Screw

M10 X 25

4шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

4шт.

12M7066

Lock Washer

10 mm

4шт.

5

19M7407

Cap Screw

M8 X 25

1шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

Washer

12M7065 NLA

1шт.

7

3080707

Plate

SUB FOR AT251145

1шт.

9

19M7513

Cap Screw

M8 X 30

3шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

3шт.

Washer

12M7065 NLA

3шт.

12

8080935

Plate

SUB FOR AT251595

1шт.

13

3084144

Plate

SUB FOR AT251152

1шт.

15

19M7881

Screw

M8 X 20

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

Washer

12M7065 NLA

4шт.

16

4280359

Plug

SUB FOR AT154351

10шт.

18

7035591

Plate

SUB FOR AT251552

1шт.

20

19M7881

Screw

M8 X 20

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

Washer

12M7065 NLA

2шт.

23

8075912

Plate

SUB FOR AT251599

1шт.

24

8076067

Plate

SUB FOR AT251601

1шт.

26

19M7881

Screw

M8 X 20

1шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

Washer

12M7065 NLA

1шт.

27

19M7407

Cap Screw

M8 X 25

1шт.

28

24M7036

Washer

9 X 16 X 1.600 mm

1шт.

30

8074682

Bracket

SUB FOR AT251597

1шт.

32

4418003

Bracket

SUB FOR AT251515

1шт.

33

19M7402

Cap Screw

M10 X 25

4шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

4шт.

12M7066

Lock Washer

10 mm

4шт.

34

4392902

Grommet

SUB FOR AT251352

2шт.

35

4305074

Grommet

SUB FOR AT251221

1шт.

39

4414842

Tape

SUB FOR AT255955

1шт.

40

4198176

Bumper

SUB FOR TH111291

1шт.

41

4365886

Grommet

SUB FOR AT251297

4шт.

42

4414843

Mat

SUB FOR AT255956

1шт.

44

4431984

Mat

SUB FOR AT258425

1шт.

45

4414036

Mat

SUB FOR AT255953

1шт.

48

Mat

AT255954 NOT REQUIRED IN THIS APPLICATION

1шт.
