Запчасти John Deere 0ZTS 72 - REPLACEMENT BATTERY 1674 Wiring Harness And Switches

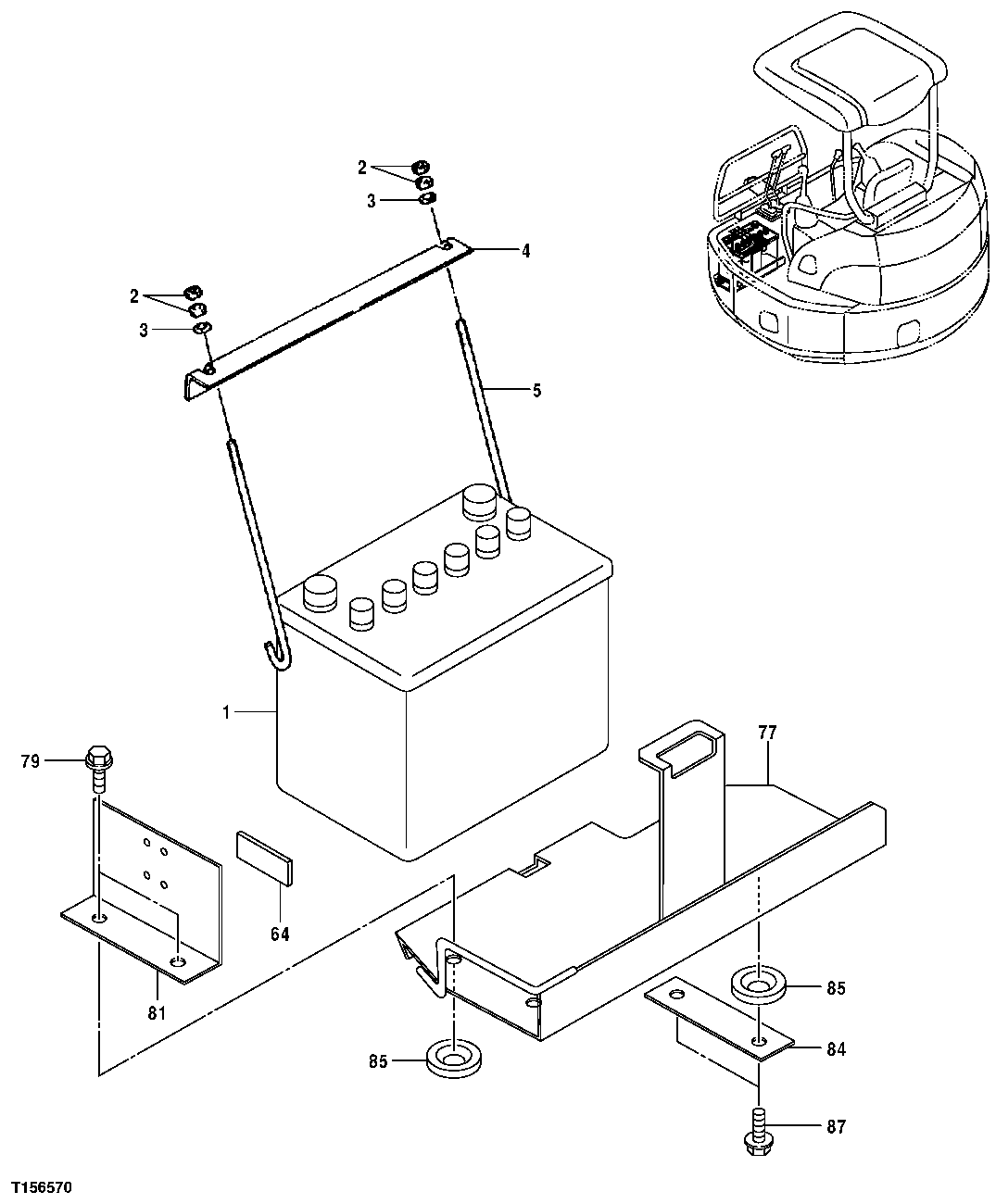

Схема запчастей John Deere 0ZTS - 72 - REPLACEMENT BATTERY 1674 Wiring Harness And Switches

Артикул

Название

Примечание

Количество

1

TY21764

Dry Charged Battery

(REPLACEMENT BATTERY) (FIRST TIME RE PLACEMENT ALSO ORDER 14M7273 (4), 24 M7024 (2), T222225 AND L156216 (2))

1шт.

2

14M7273

Nut

M8

4шт.

3

24M7024

Washer

9 X 28 X 3 mm

2шт.

4

T222225

Angle

(SUB FOR T110065)

1шт.

5

L156216

Hook Bolt

(SUB FOR L154794)

2шт.

77

7035479

Tray

(SUB FOR AT251550)

1шт.

79

19M7662

Cap Screw

M10 X 30

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

81

4409656

Bracket

(SUB FOR AT251470)

1шт.

84

4409654

Bracket

(SUB FOR AT251469)

1шт.

85

4409657

Spacer

(SUB FOR AT251471)

4шт.

87

24M7096

Washer

10.500 X 18 X 1.600 mm

3шт.

12M7066

Lock Washer

10 mm

3шт.

Выбрано товаров: 14
