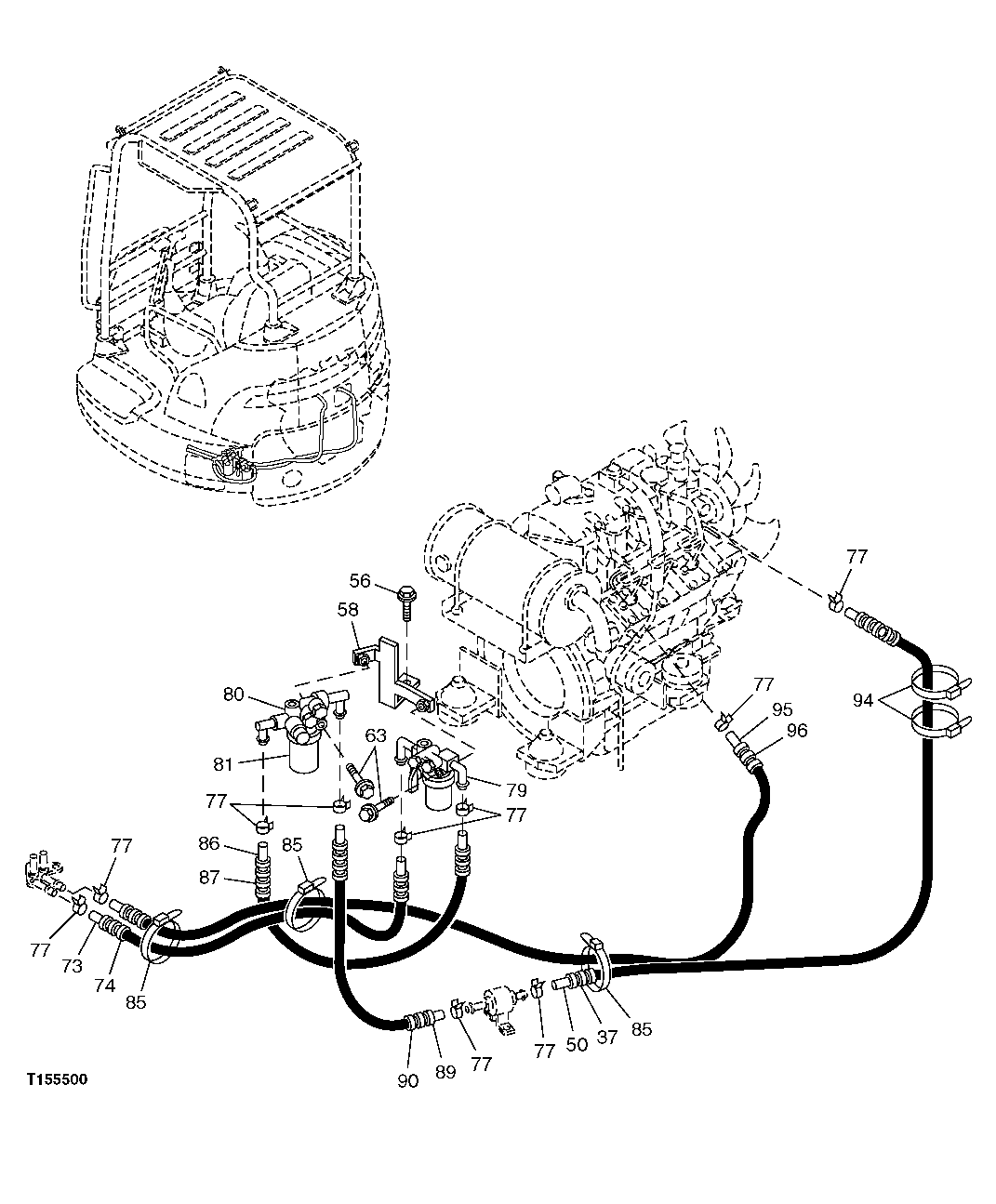

Запчасти John Deere 0C ZTS 52 - FUEL PUMPS (COMPLETE), HOSES AND BRACKETS 0560 EXTERNAL FUEL SUPPLY SYSTEM

37

4348600

Tube

(SUB FOR 4427941 OR 4348600)

1шт.

50

TY24398

Bulk Hose

(CUT TO LENGTH)

1шт.

56

19M7938

Cap Screw

M10 X 20 (SUB FOR J051020)

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

58

9758656

Bracket

1шт.

63

19M7663

Cap Screw

M8 X 70

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

12M7056

Lock Washer

8 mm

2шт.

73

Bulk Hose

(4429126 NLA) (MAKE FROM TY 22324 (CTL) 565MM (22.24"))

1шт.

74

4346674

Sleeve

(SUB FOR 4429412)

1шт.

77

4339258

Hose Clamp

10шт.

79

8973112542

Filter

(COMPONENTS ON ANOTHER P AGE) (SUB FOR 8973112541)

1шт.

8943602540

Filter Element

(SUB FOR 4418776)

1шт.

80

8971363192

Filter

(COMPONENTS ON ANOTHER PAGE) (SUB FOR AT260062, 8971363191)

1шт.

81

8970713480

Filter Element

(SUB FOR AT256025 OR 4454529)

1шт.

85

H77698

Tie Band

3шт.

86

Bulk Hose

(SUB FOR 4427933 OR 4458313 OR 43 83152 OR 4352772)(MF TY24398 CTL)

1шт.

87

4427939

Hose Guard

1шт.

89

TY24398

Bulk Hose

(CUT TO LENGTH)

1шт.

90

4400458

Hose Guard

(SUB FOR 4299654 OR 4422674)

1шт.

94

H77698

Tie Band

2шт.

95

TY24398

Bulk Hose

(CUT TO LENGTH)

1шт.

96

4372613

Sleeve

1шт.
