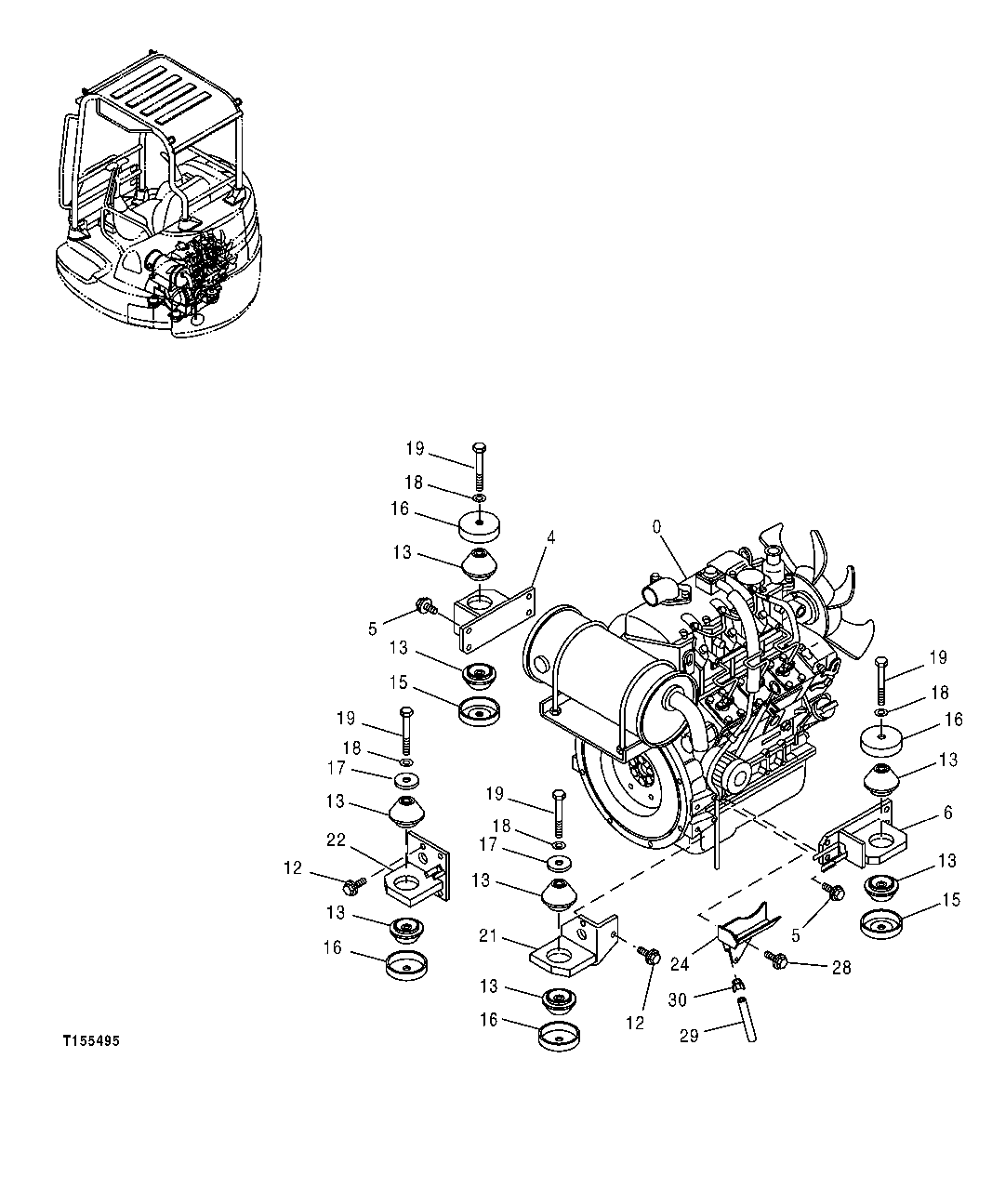

Запчасти John Deere 0C ZTS 51 - ENGINE AND MOUNTS 0540 Engine Mounting

0

Diesel Engine

3LD2PA03 NLA, SUB FOR 4466903, 8087499 Cont act DTAC For Replacement DTAC Solution 91367

1шт.

3LD2LB01

Complete Block Assembly

Diesel Engine Isuzu Long Block Contact DTAC For Replacement DTAC Solution 91367

1шт.

4

8094637

Bracket

(SUB FOR 8087499)

1шт.

5

19M7662

Cap Screw

M10 X 30

8шт.

12M7066

Lock Washer

10 mm

8шт.

6

8089439

Bracket

1шт.

8096144

Bracket

1шт.

12

19M7402

Cap Screw

M10 X 25

6шт.

12M7066

Lock Washer

10 mm

6шт.

13

4355158

Isolator

8шт.

15

9753719

Holder

(USE WITH 8087499)

2шт.

4385858

Holder

(USE WITH 8094637)

2шт.

16

4276374

Holder

4шт.

17

24H1748

Washer

1/2" X 1-1/4" X 0.105" (SUB FOR 4307120)

2шт.

18

24M7047

Washer

13 X 24 X 2.500 mm

4шт.

19

J901201

Bolt

4шт.

21

8087364

Bracket

1шт.

22

8087365

Bracket

1шт.

24

8088403

Tray

1шт.

28

19M7938

Cap Screw

M10 X 20 (SUB FOR J051020)

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

29

TY24398

Bulk Hose

(CUT TO LENGTH)

1шт.

30

4351486

Hose Clamp

1шт.
