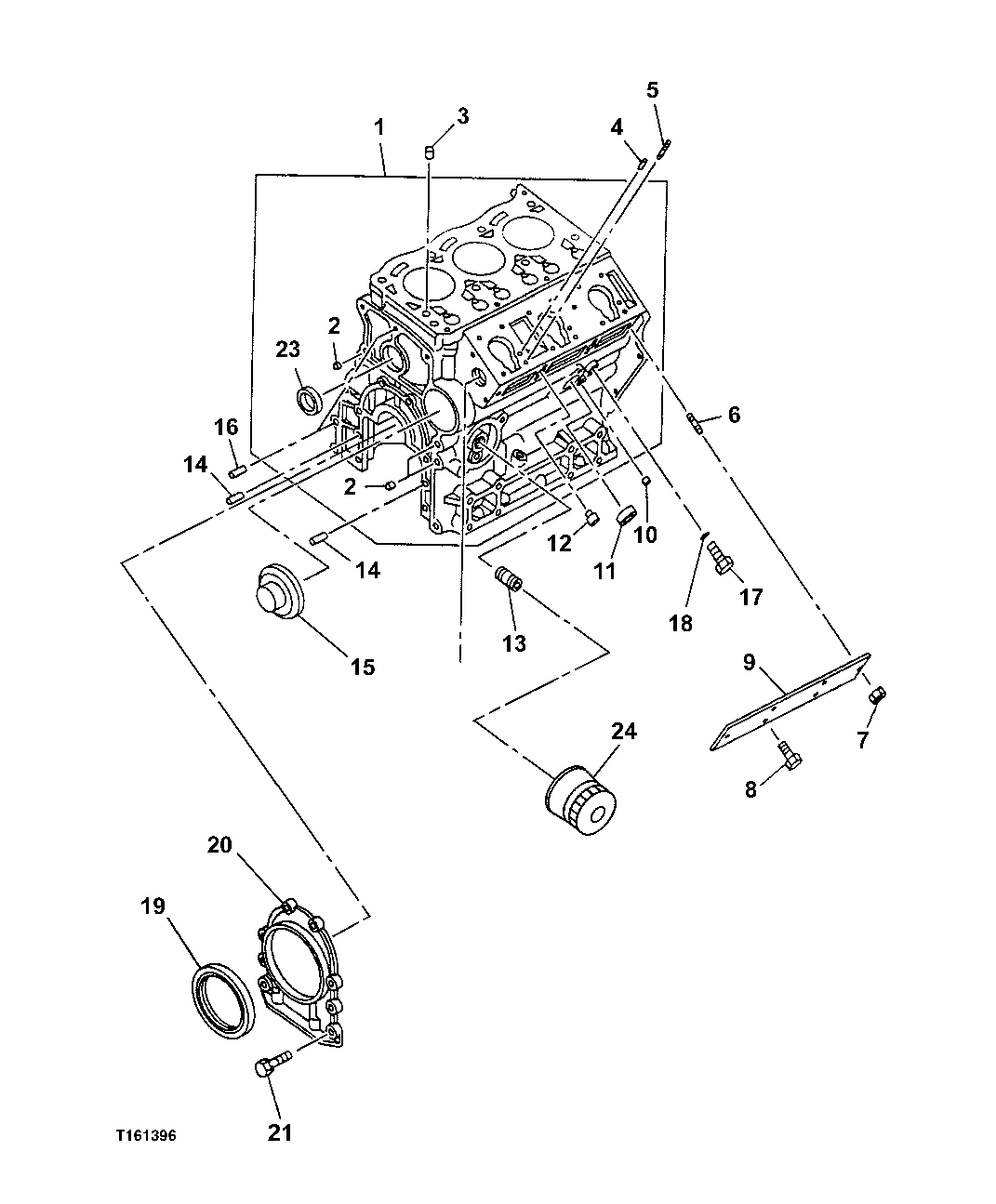

Запчасти John Deere 0C ZTS 26 - CYLINDER BLOCK AND OIL FILTER 0404 Cylinder Block

1

8972322866

Cylinder Block

(ADDITIONAL COMPONENTS LISTED ON PREVIOU S PAGE) (SUB FOR 8972322864, 8972322865)

1шт.

2

5096000130

Seal

2шт.

3

8942170020

Dowel Pin

(SUB FOR AT254849, 894 2008190 OR 8972310071)

1шт.

4

9098785320

Dowel Pin

(SUB FOR AT255029)

3шт.

5

AT254807

Stud

6шт.

6

0410106160

Stud

(M6 X 16 L=25) (SUB FOR 8972621471)

1шт.

8972621481

Stud

(M6 X 19 L=27)

1шт.

7

8971378360

Nut

(SUB FOR AT260063)

2шт.

8

0280806140

Bolt

(SUB FOR AT259917)

2шт.

9

8971062042

Cover

(SUB FOR AT260039)

1шт.

10

5096050192

Pipe Plug

1шт.

11

1096000122

Plug

(SUB FOR 1096000121)

1шт.

12

8970394953

Pin

(SUB FOR AT254887)

2шт.

13

8943255950

Threaded Nipple

(SUB FOR AT254860)

1шт.

14

9098780940

Dowel Pin

(SUB FOR AT255013)

5шт.

15

8970471421

Plug

(SUB FOR AT254903)

1шт.

16

9081508160

Pin Fastener

(SUB FOR AT255014)

2шт.

17

AT254824

Fitting Plug

1шт.

18

9095720140

Packing

1шт.

19

AT254827

Seal

1шт.

20

8972310302

Retainer

1шт.

21

0280806200

Bolt

(SUB FOR AT259919)

6шт.

23

8942298530

Plug

(SUB FOR AT254851)

1шт.

24

4454526

Filter Element

(SUB FOR AT192163)

1шт.
