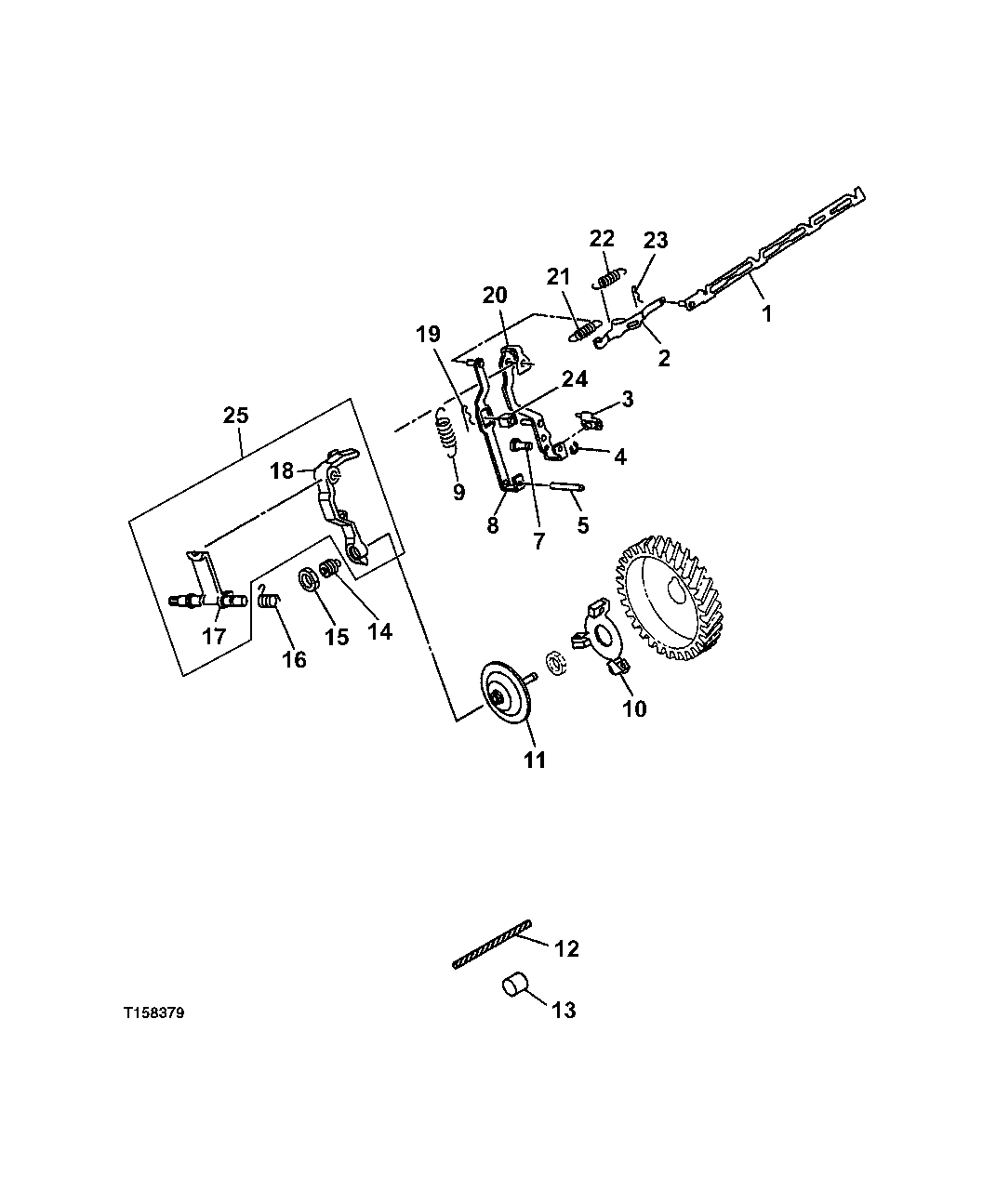

Запчасти John Deere 0C ZTS 24 - TIMING LINKAGE 0402 Camshaft And Valve Actuating Means

1

8971062071

Link

(SUB FOR AT260040)

1шт.

2

8971485500

Link

(SUB FOR AT254965)

1шт.

3

8970346383

Link

(SUB FOR AT254882)

1шт.

4

0918055040

Snap Ring

(SUB FOR AT255023 OR 9091854040)

1шт.

5

9081605450

Pin

(SUB FOR AT255012)

1шт.

7

8973036670

Shaft

1шт.

8

8973035802

Lever

1шт.

9

8971679740

Spring

(SUB FOR 8970766400 OR 8970766401)

1шт.

10

8973632690

Flywheel

(SUB FOR 8973183720 OR 8973632960)

1шт.

11

8971474893

Sleeve

(SUB FOR 8971474890 OR 8971474892)

1шт.

12

9813254460

Wire

(SUB FOR AT260113)

1шт.

13

AT259948

Tag

1шт.

14

8971701660

Angle Kit

1шт.

15

8941304380

Nut

(SUB FOR AT259960)

1шт.

16

8973070610

Spring

1шт.

17

8970346424

Lever

(SUB FOR AT254883)

1шт.

18

8970346376

Lever

(SUB FOR AT254881)

1шт.

19

AT254816

Spring Locking Pin

1шт.

20

8973035772

Lever

(SUB FOR 8973035771)

1шт.

21

8970837141

Spring

(SUB FOR AT254919, 8970837140)

1шт.

22

8970843251

Spring

(SUB FOR AT260026)

1шт.

23

AT254816

Spring Locking Pin

1шт.

24

8973035830

Guide

1шт.

25

8970935494

Lever

GOVERNOR (SUB FOR AT260034)

1шт.
