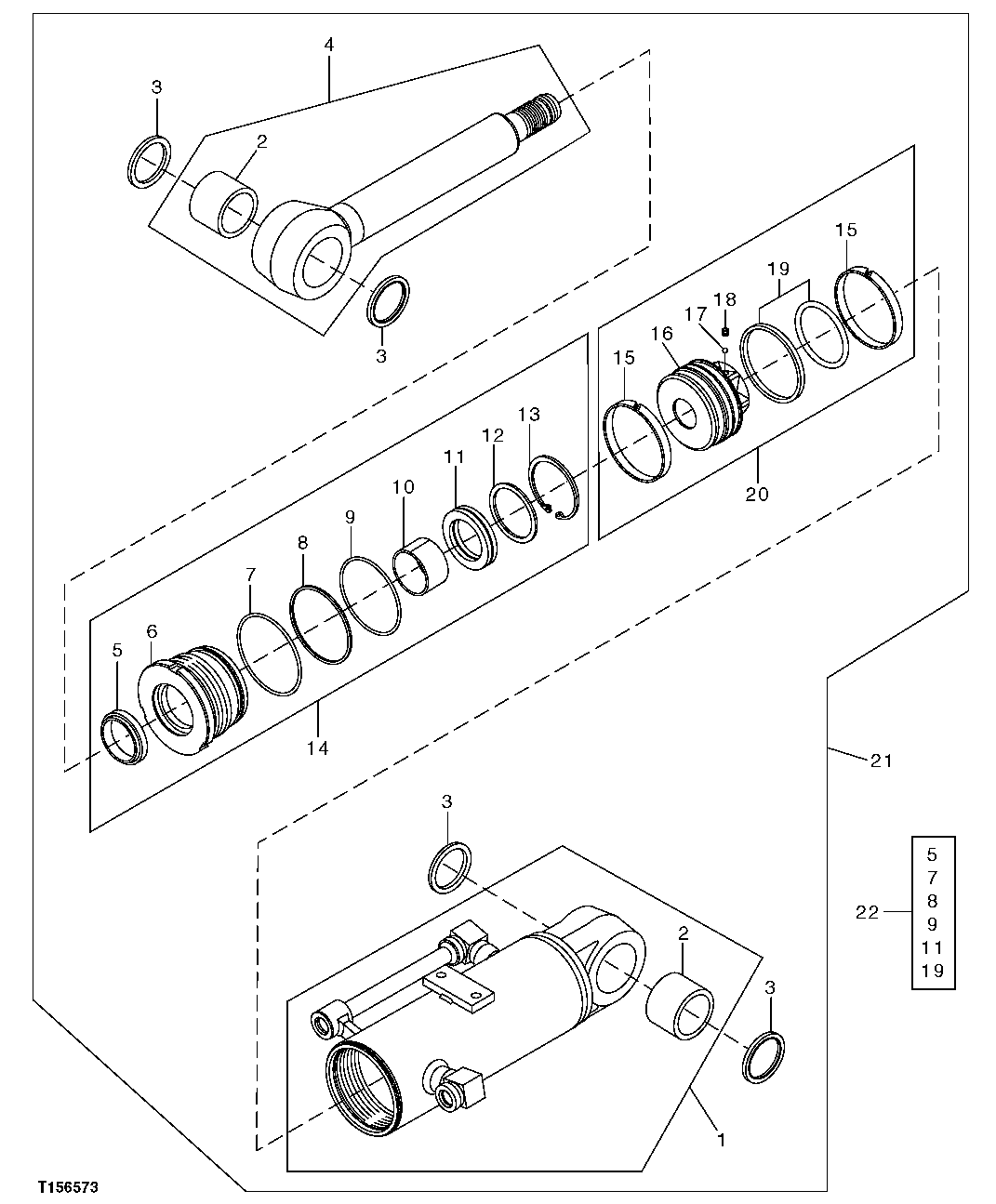

Запчасти John Deere 0C ZTS 205 - BLADE CYLINDER (COMPONENTS) 3365 Hydraulic Cylinders

1

0850501

Hydraulic Cylinder Barrel

1шт.

2

4332744

Bushing

2шт.

3

AT318033

Seal

(SUB FOR 0478912 OR 4117955)

4шт.

4

0850502

Hydraulic Cylinder Rod

1шт.

5

0662901

Seal

(A)

1шт.

6

0745304

Hydr. Cylinder Rod Guide

1шт.

7

AT264318

O-Ring

(A) (SUB FOR A811095 OR T110446)

1шт.

8

0495705

Back-Up Ring

(A)

1шт.

9

CH18696

Packing

(A)

1шт.

10

0843809

Bushing

(SUB FOR 0478703)

1шт.

11

0478704

Packing

(A)

1шт.

12

0481702

Ring

1шт.

13

0481703

Snap Ring

1шт.

14

0745303

Hydr. Cylinder Rod Guide

1шт.

15

0745307

Wear Ring

2шт.

16

0745306

Piston

1шт.

17

0370110

Ball

(SUB FOR 0478719)

1шт.

18

ER046420

Set Screw

(SUB FOR 0479214)

1шт.

19

AT264392

Ring

(A) (SUB FOR TH109376)

1шт.

20

0745305

Piston

1шт.

21

4472591

Hydraulic Cylinder

1шт.

22

0745308

Hydraulic Cylinder Kit

(INCLUDES PARTS MARKED (A))

1шт.
