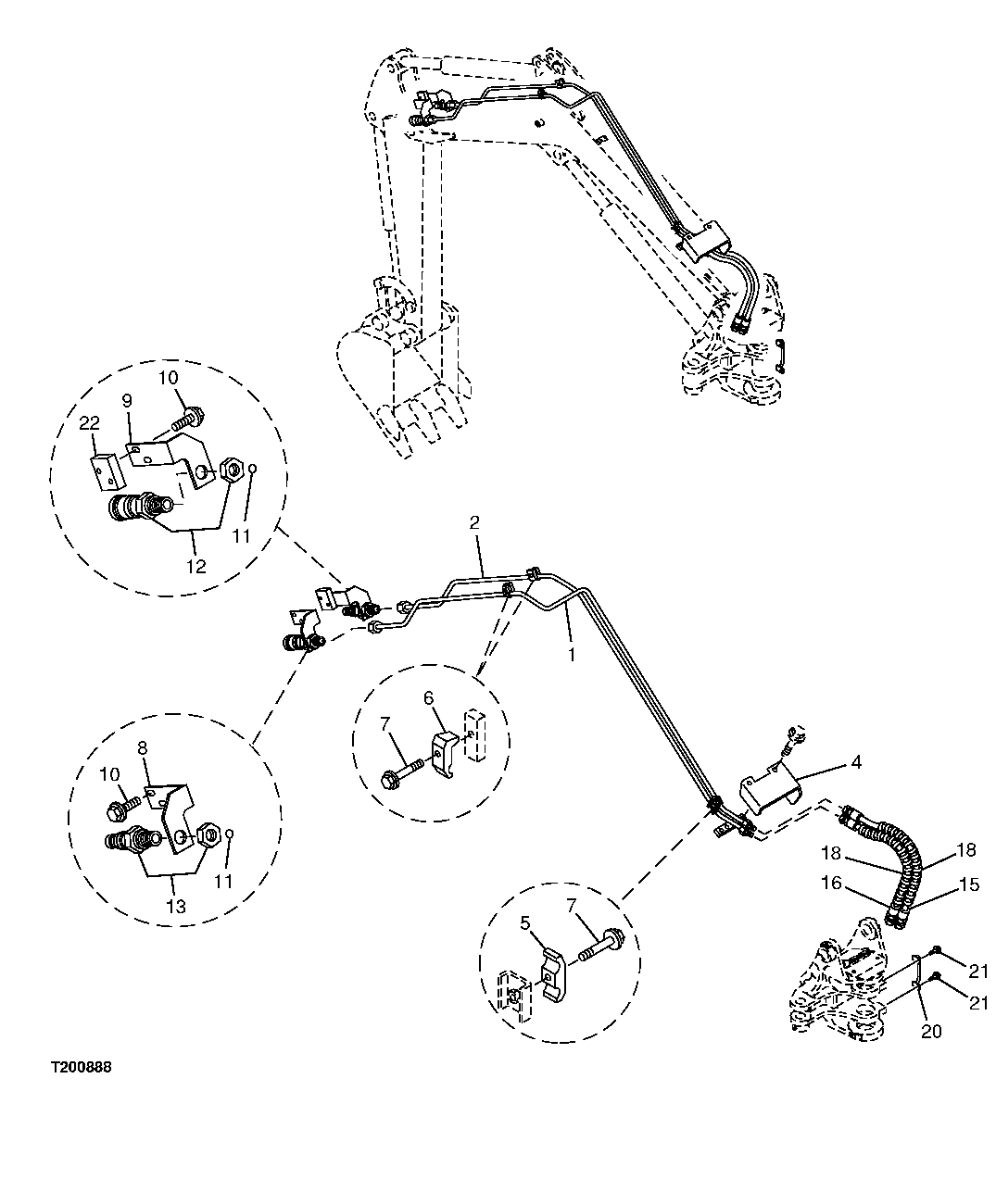

Запчасти John Deere 0C ZTS 200 - Front Auxiliary Hydraulic Boom Lines And Hoses 3363 LINES, HOSES & FITTINGS

1

8090573

Line

1шт.

2

8090574

Line

1шт.

4

8074144

Cover

1шт.

5

4189858

Clamp

SUB FOR 4354753

1шт.

6

4354754

Block Clamp

2шт.

7

19M7572

Cap Screw

M10 X 45

3шт.

12M7066

Lock Washer

10 mm

3шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

3шт.

8

3097087

Bracket

1шт.

9

3097100

Bracket

1шт.

10

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

4шт.

11

T77858

O-Ring

2шт.

12

FYD00007700

Hydr. Quick Coupler Socket

SUB FOR 4486229 Female Hydraulic Quick Connect

1шт.

T78707

Nut

1шт.

13

KV13885

Hyd. Quick-Connect Coupler

Male NLA, ORDER AT312877, SUB FOR 4486230

1шт.

AT312877

Hyd. Quick-Connect Coupler

Male Connect Under Pressure

1шт.

T78707

Nut

1шт.

15

4429711

Hydraulic Hose

1шт.

16

4429712

Hydraulic Hose

1шт.

18

Hose Guard

MF XHG-075 CTL, 432729 4 NLA, SUB FOR 4044420

2шт.

20

8078290

Guide

1шт.

21

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

22

Spacer

1шт.
