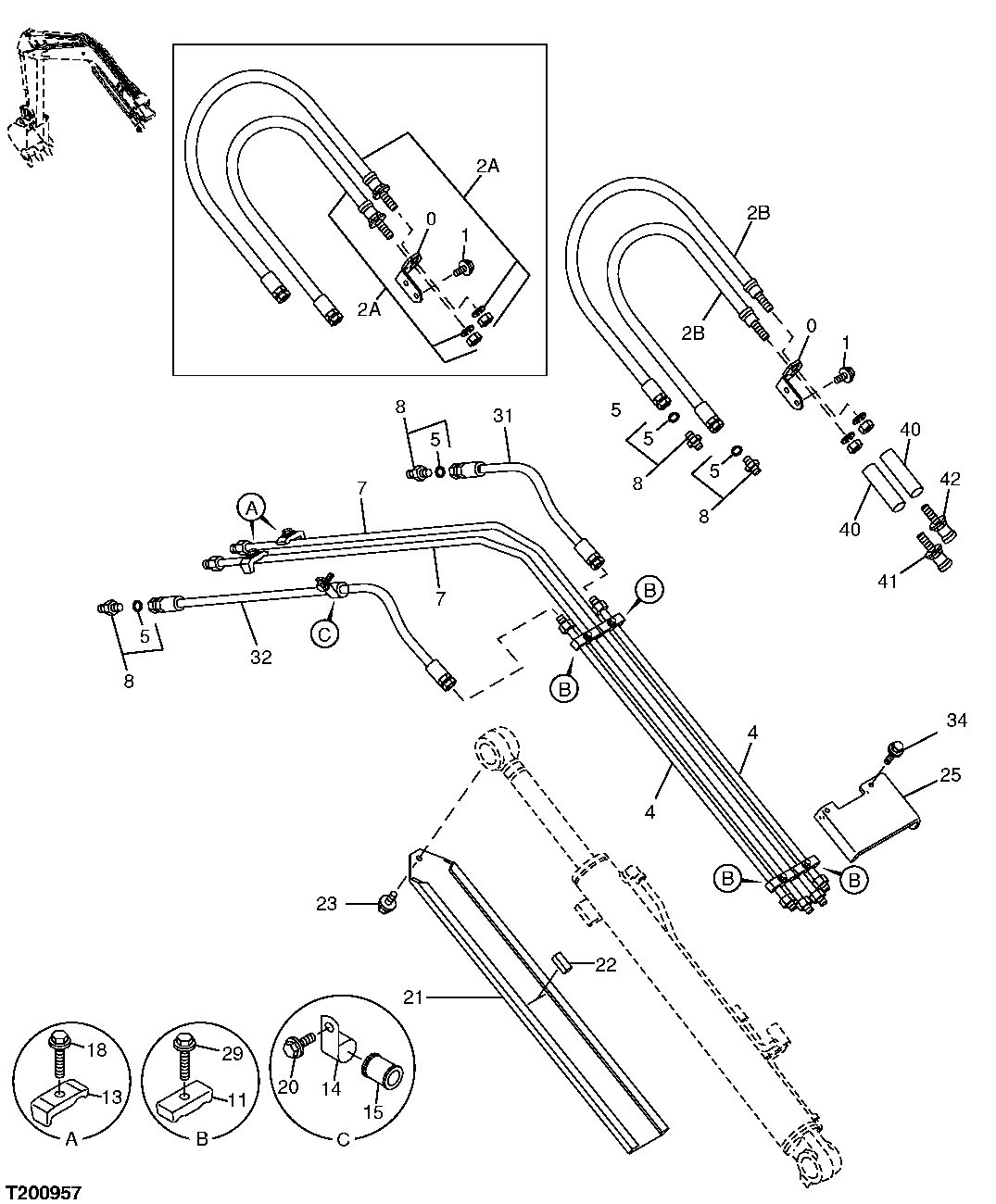

Запчасти John Deere 0C ZTS 193 - FRONT BOOM CYLINDER LINES 3363 LINES, HOSES & FITTINGS

0

4423122

Bracket

1шт.

1

19M7932

Cap Screw

M8 X 16 SUB FOR J090816

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

Washer

12M7065 NLA

2шт.

2A

Hydraulic Hose

( 4428818 NLA) (SUB 4479852 HOSE AND 447 9856 PIPE AND 4479854 HOSE BOOM UP APPLIC ATIONS) (SUB 4479852 HOSE AND 4479856 PIP E, AND 4479855 HOSE BOOM DOWN APPLICATION S)

2шт.

2B

4479852

Hose

2шт.

4

9752130

Oil Line

2шт.

5

CH11570

O-Ring

1шт.

7

8075840

Oil Line

2шт.

8

4042031

Adapter Fitting

4шт.

11

4331314

Block Clamp

4шт.

13

4138227

Clamp

SUB FOR 4331315

2шт.

14

T24432

Clamp

1шт.

15

4374994

Bushing

1шт.

18

19M7550

Cap Screw

M10 X 35

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

20

19M7932

Cap Screw

M8 X 16 SUB FOR J090816

1шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

Washer

12M7065 NLA

1шт.

21

3070379

Cover

1шт.

22

4352044

Isolator

2шт.

23

19M7938

Cap Screw

M10 X 20 SUB FOR J051020

1шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

1шт.

12M7066

Lock Washer

10 mm

1шт.

25

8075327

Cover

1шт.

29

19M8008

Cap Screw

M8 X 35 SUB FOR J090835

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

Washer

12M7065 NLA

4шт.

31

4427482

Hydraulic Hose

1шт.

32

4427483

Hydraulic Hose

1шт.

34

19M7323

Cap Screw

M8 X 40

2шт.

12M7056

Lock Washer

8 mm

2шт.

40

4479856

Line

2шт.

41

4479855

Hydraulic Hose

(SUB FOR 4476399, 447985 6 AND 4479852)(BOOM DOWN)

1шт.

42

4479854

Hydraulic Hose

(SUB FOR 4472942, 44798 56 AND 4479852)(BOOM UP)

1шт.
