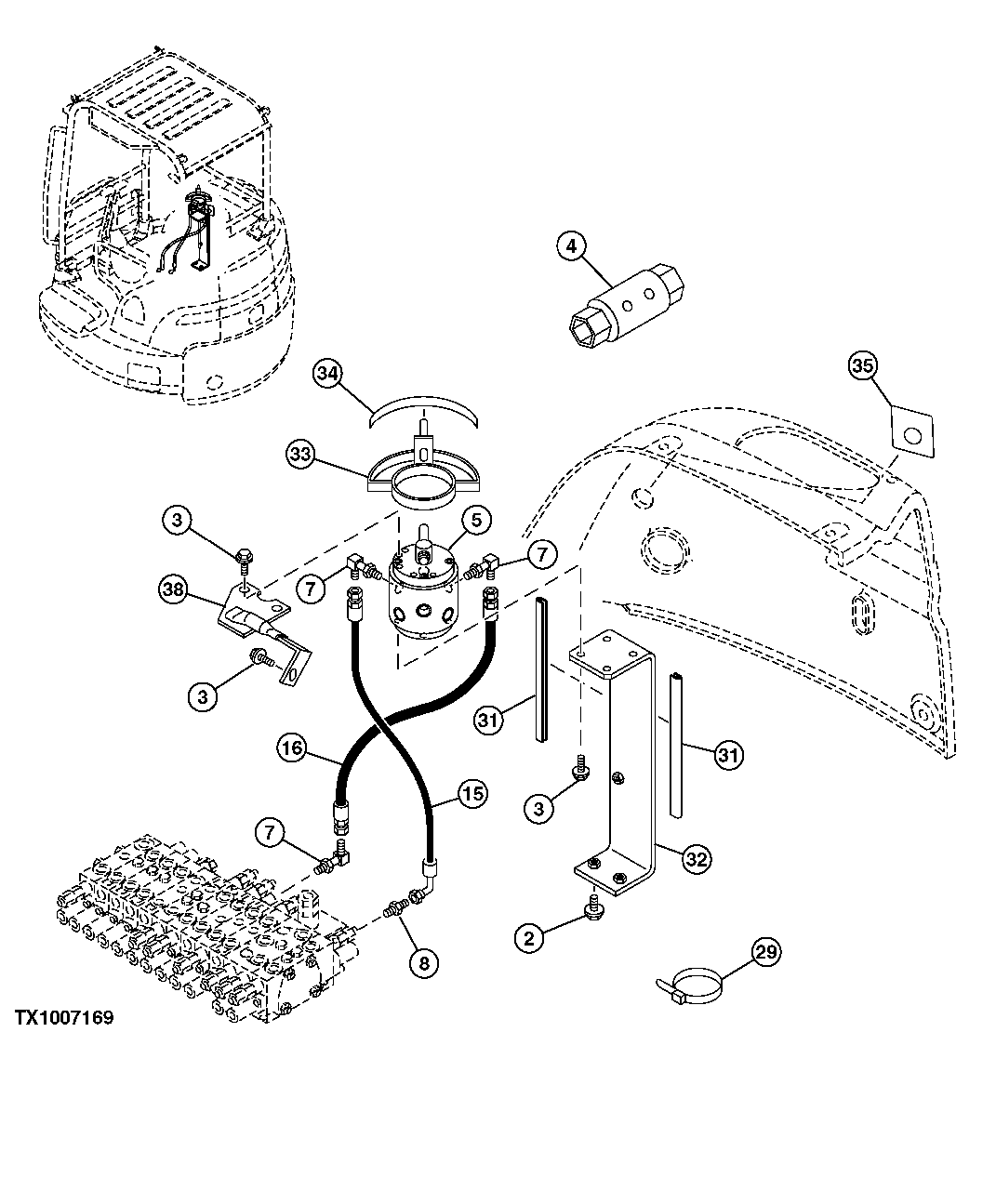

Запчасти John Deere 0C ZTS 189 - PILOT CONTROLLER PATTERN CONVERSION VALVE AND LINES (2-WAY) 3363 LINES, HOSES & FITTINGS

2

19M7402

Cap Screw

M10 X 25

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

3

19M7881

Screw

M8 X 20

7шт.

12M7056

Lock Washer

8 mm

7шт.

24M7036

Washer

9 X 16 X 1.600 mm

7шт.

4

4351893

Wrench

1шт.

5

4466801

Flow Control Hyd. Valve

(PILOT CONTROLLER PATTERN CONVERSION VALVE) (COMPONENTS ON ANOTHER PAGE)

1шт.

7

4434981

Elbow Fitting

3шт.

M800650

Packing

1шт.

8

4042030

Adapter Fitting

1шт.

M800650

Packing

1шт.

15

4473009

Hydraulic Hose

1шт.

16

4473010

Hydraulic Hose

1шт.

29

H77698

Tie Band

6шт.

31

4477292

Isolator

2шт.

32

9760013

Bracket

1шт.

33

8090542

Bracket

1шт.

34

Plate

1шт.

35

Plate

1шт.

38

8091062

Bracket

1шт.
