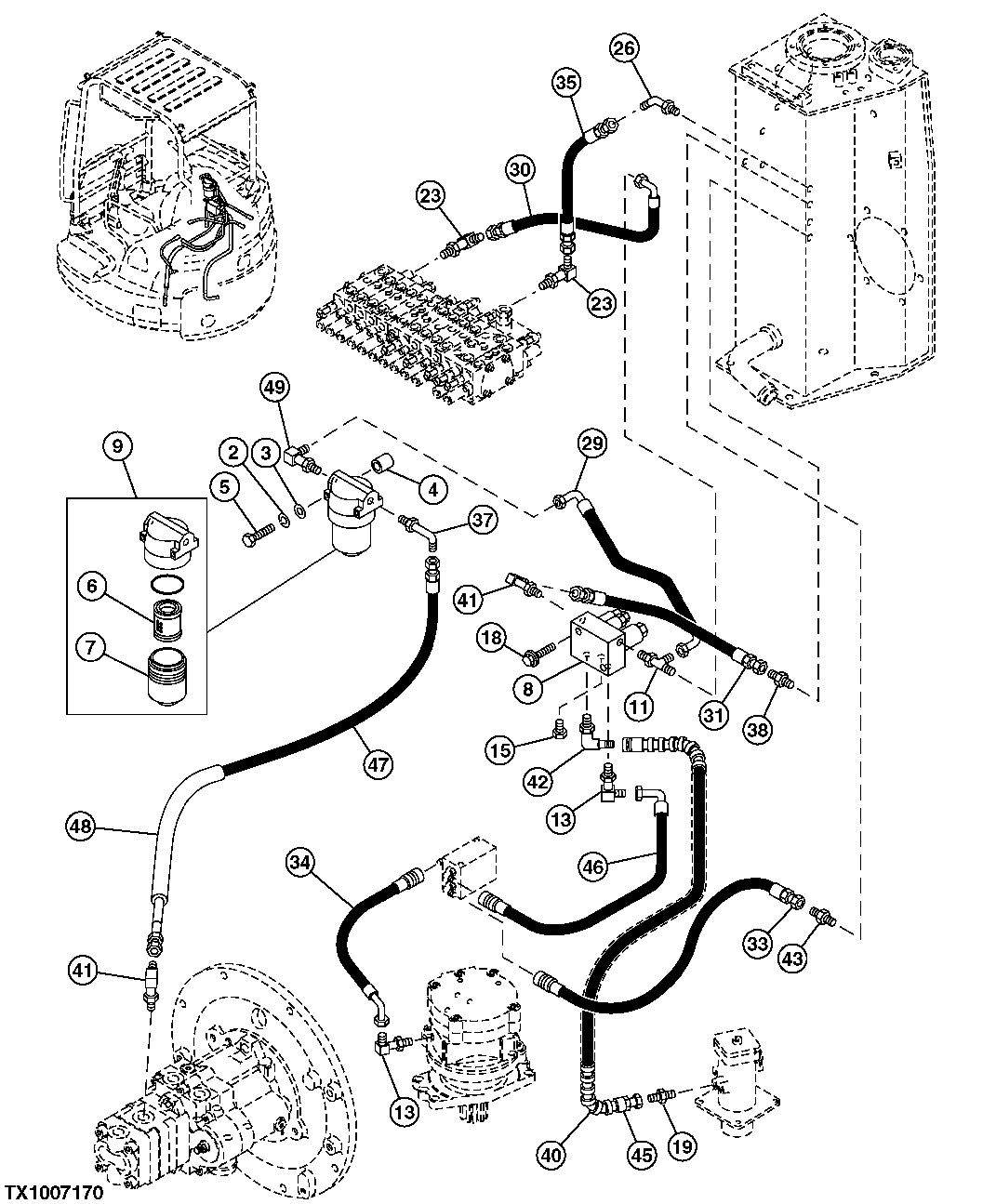

Запчасти John Deere 0C ZTS 186 - Pilot Lines 3363 LINES, HOSES & FITTINGS

2

12M7006

Lock Washer

6 mm

2шт.

3

12M7054

Lock Washer

19 mm

2шт.

4

4277425

Spacer

2шт.

5

19M7763

Cap Screw

M6 X 75

2шт.

6

4294130

Filter Element

(A) INNER

1шт.

7

Hydraulic Filter

(A) Outer Housing 4294 129 NLA; FURNISH 4294130

1шт.

8

4615209

Solenoid Valve

Components Listed On Ano ther Page SUB FOR 4415398

1шт.

9

4457683

Filter

Includes Parts Marked (A)

1шт.

11

4368225

Tee Fitting

1шт.

CH11570

O-Ring

1шт.

13

4434981

Elbow Fitting

2шт.

M800650

Packing

1шт.

15

4093624

Drain Plug

SUB FOR AT318013

1шт.

M800650

Packing

1шт.

18

19M7166

Cap Screw

M10 X 20

2шт.

12M7066

Lock Washer

10 mm

2шт.

19

4042030

Adapter Fitting

1шт.

M800650

Packing

1шт.

23

4434981

Elbow Fitting

2шт.

M800650

Packing

1шт.

26

4173014

Elbow Fitting

1шт.

CH11570

O-Ring

1шт.

29

4472950

Hose

MARKED PS

1шт.

30

4472951

Hose

MARKED S2

1шт.

31

4472952

Hose

MARKED D4

1шт.

33

4472954

Hose

MARKED PM

1шт.

34

4472955

Hose

MARKED PG

1шт.

35

4472956

Hose

MARKED D1

1шт.

37

4162917

Elbow Fitting

1шт.

CH11570

O-Ring

1шт.

38

4042031

Adapter Fitting

1шт.

CH11570

O-Ring

1шт.

40

4400458

Hose Guard

SUB FOR 4299654, 4400458 OR 4422674

1шт.

41

4468520

Elbow Fitting

2шт.

CH11570

O-Ring

2шт.

42

4467375

Elbow Fitting

1шт.

M800650

Packing

1шт.

43

4368206

Fitting

1шт.

CH11570

O-Ring

1шт.

45

4474545

Hydraulic Hose

SUB FOR 4476405, MARKED VV

1шт.

46

4467226

Hydraulic Hose

MARKED D2

1шт.

47

4476400

Hydraulic Hose

1шт.

48

4476631

Sleeve

1шт.

49

4037761

Hose Fitting

1шт.

CH11570

O-Ring

1шт.

CH11570

O-Ring

1шт.
